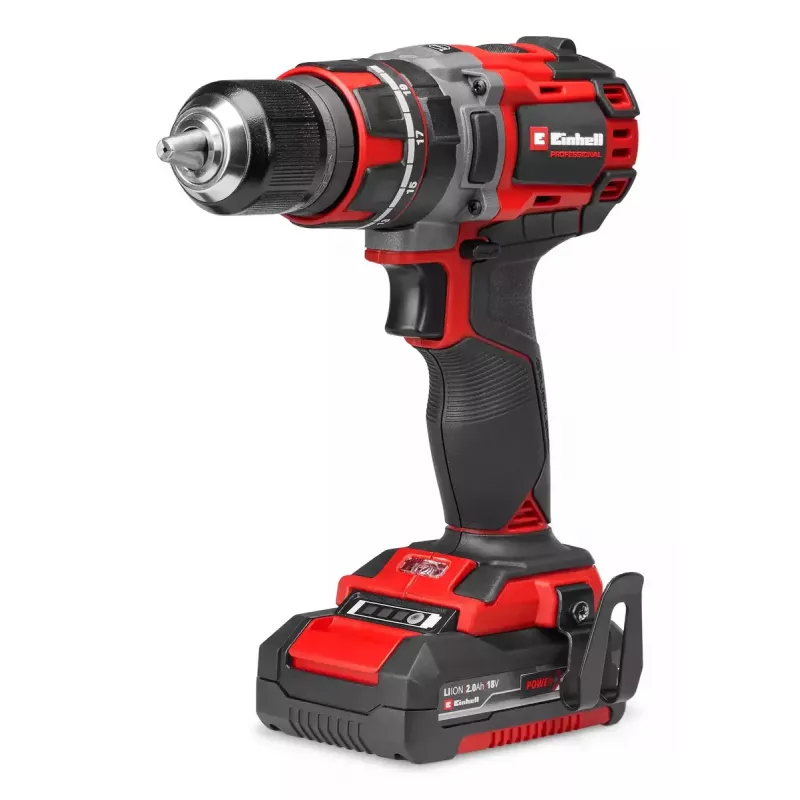

Trapano a pistola Einhell TP-CD 18/60 Li- i BL Brushless 1,3 cm 2 Ah

The Einhell Professional cordless impact drill TP-CD 18/60 Li‑i BL (1x 2.0 Ah) is a compact pistol‑grip drill intended for drilling, screwing and impact drilling in wood, metal and masonry. It is part of the Power X‑Change system and is driven by an Einhell Brushless motor for higher efficiency and longer runtime compared with brushed motors. The tool is supplied with one 18 V 2.0 Ah battery and a charger and features a robust 2‑speed metal gearbox, a 13 mm single‑sleeve quick‑release metal chuck, integrated LED work light and an ergonomic soft‑grip housing.

Advantages

The brushless motor delivers greater power, longer runtime and lower maintenance than carbon‑brush motors, and the motor is covered by a 10‑year warranty after online registration. The sturdy metal gearbox and metal chuck ensure reliable power transmission and fast accessory changes. Electronic speed control, 20 torque settings up to 60 Nm and a selectable impact drilling mode provide precise, material‑adapted working. The compact pistol‑grip design with soft grip and integrated LED improves handling and visibility in confined or poorly lit spaces.

Suitable for

• General drilling and screwdriving in wood and metal
• Impact drilling into masonry and concrete for anchors and fixings
• Renovation and repair tasks for DIYers and professional tradespeople
• Working in confined or poorly lit areas where the integrated LED is useful

Key specifications

• Model: Einhell TP‑CD 18/60 Li‑i BL
• Power system: Power X‑Change, 18 V (includes 1 x 2.0 Ah battery)
• Motor: Brushless (BL) with 10‑year warranty after registration
• Max torque: 60 Nm with 20 torque settings
• Gearbox: 2‑speed metal gearbox
• Chuck: 13 mm single‑sleeve quick‑release metal chuck (max 1.3 cm)
• Functions: Drilling, screwdriving, impact drilling
• Impact rate: up to 32,000 bpm (manufacturer data)
• Weight: approx. 1.26 kg
• Battery type: Lithium‑Ion, 2.0 Ah
• Integrated LED light, soft‑grip handle, belt clip

How to use

Charge the supplied 2.0 Ah Power X‑Change battery fully before first use and insert it into the tool until it clicks into place. Select the required mode (drilling, screwdriving or impact drilling) and set the speed and torque using the electronic speed control and torque ring. For drilling, choose the appropriate drill bit and secure it in the 13 mm quick‑release chuck. Use the lower gearbox speed for high torque tasks and the higher speed for faster drilling. Keep a firm two‑handed grip or use the pistol‑grip position, and let the tool reach working speed before applying pressure. After use, remove the battery for safe storage and clean the chuck and ventilation slots from dust.

Recommendations

Use suitable drill bits and personal protective equipment (safety glasses, hearing protection and dust mask) when drilling into masonry or metal. Register the product online to activate the 10‑year brushless motor warranty and follow the manufacturer’s battery care instructions to prolong battery life.
