Trasmettitore e ricevitore AV Lindy 300m fibra ottica HDMI 18G e IR extender

Extends HDMI 2.0 18G signals up to 300m over a single duplex LC cable
Supports resolutions up to  4K 60Hz Ultra HD, with High Dynamic Range
Bi-directional IR or RS-232 for seamless, flexible control
HDCP 2.2 support to ensure maximum compatibility
2 year warranty

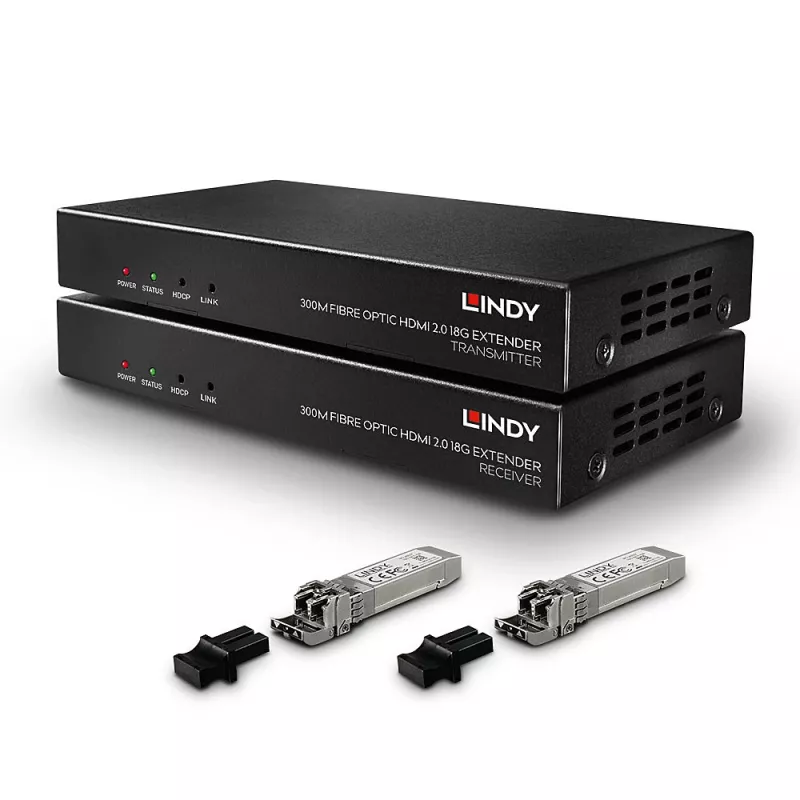

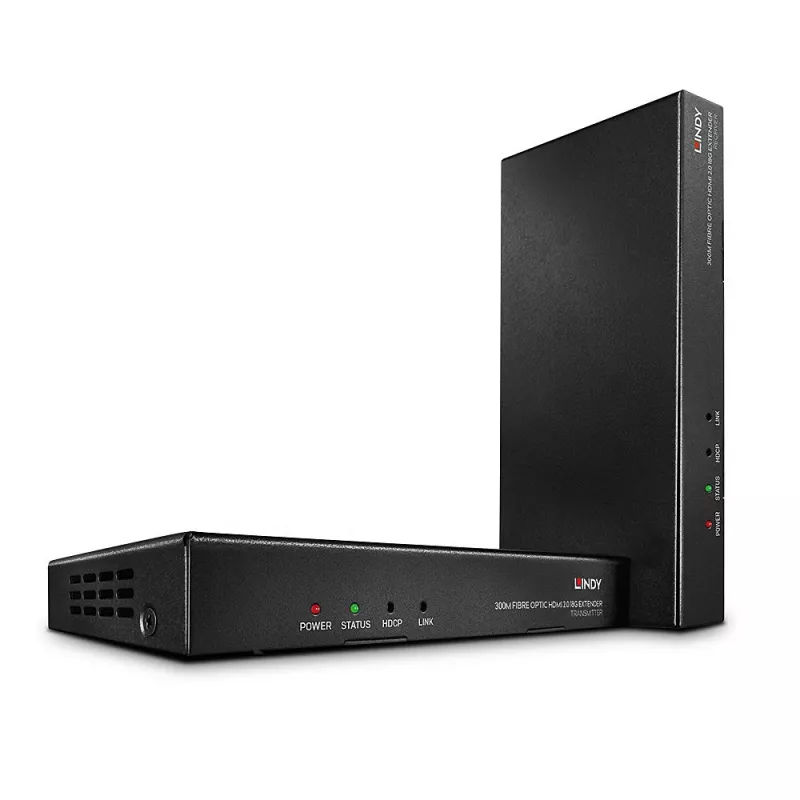

The Lindy 300m Fibre Optic HDMI & IR Extender is a high performance solution for extending  4K 60Hz Ultra HD transmissions over incredible distances, which are not possible with traditional copper based systems, using a single standard LC duplex multimode (50/125µm) fibre optic cable.

Support for the HDMI 2.0 specification allows for the transmission of highly detailed 4K Ultra HD resolutions, using smart methods of compression, which decompresses the signal at the receiver for a visually lossless picture. Also providing support for High-Dynamic Range, video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for creating eye-catching digital signage in retail, impressive residential installations or taking sports venue distribution to new immersive levels. HDCP 2.2 compatibility also means that protected 4K content including movies and TV shows can be viewed without issue.

As opposed to the use of copper based extension systems, the use of fibre optic cable also ensures immunity to RF and EMI, providing a stable signal in ‘noisy’ retail or industrial environments which can have a high interference from electronics.

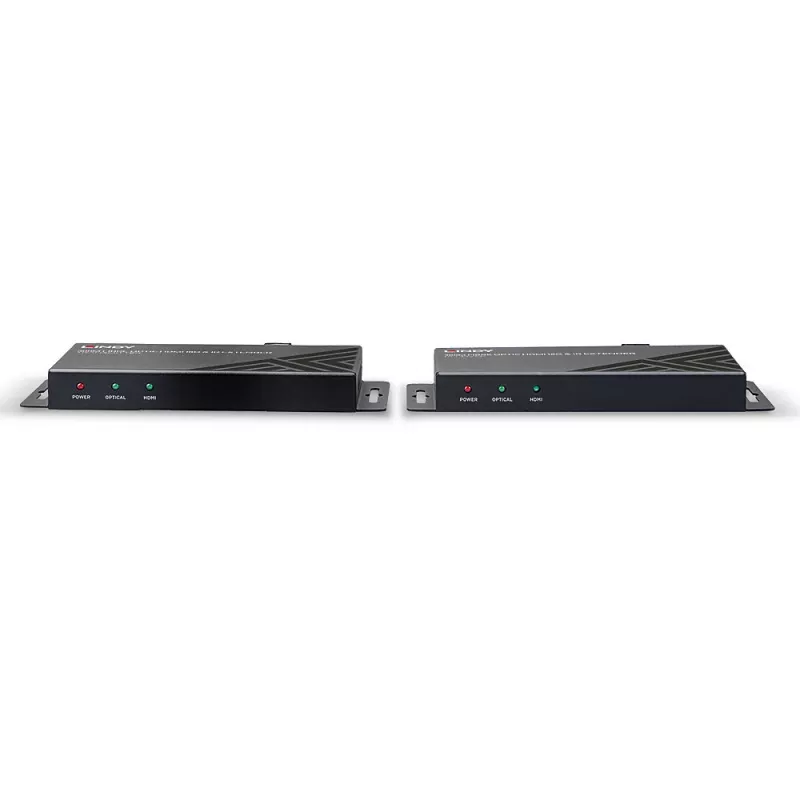

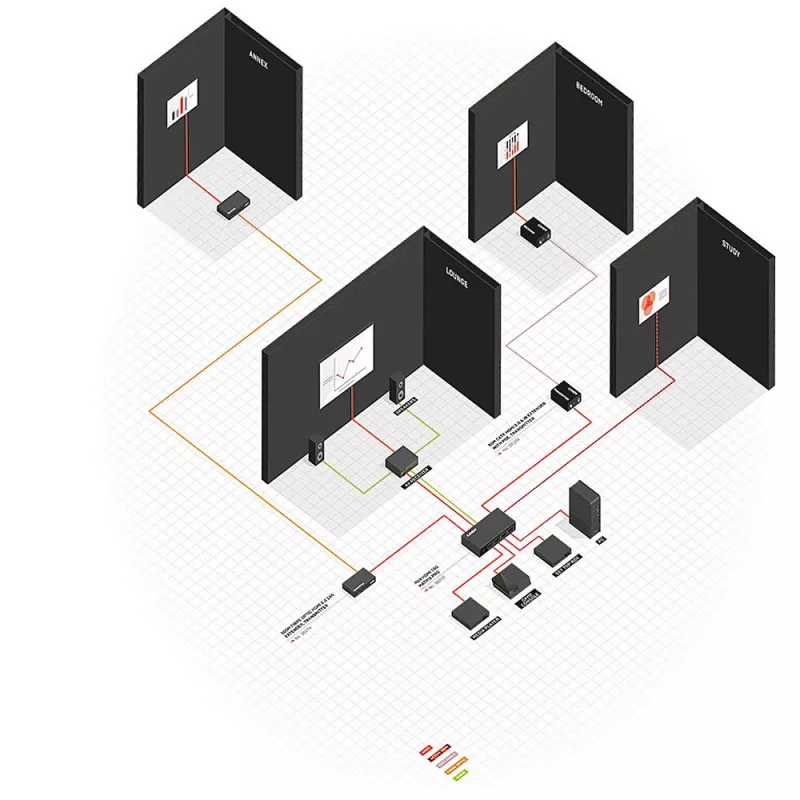

With the ability to extend signals up to 300m the extender provides huge installation flexibility, the transmitter can be easily connected to a variety of HDMI source devices such as Blu-Ray players, 4K HDR media players or PC's in a convenient location, while the receiver can be placed in a suitable viewing area along with a 4K display or projector.The extender can also support 4K@30Hz non-HDCP content up to 1.5km with single mode fibre cable, great for even longer distance distribution of gaming or PC content. The included mounting brackets also allow for a neat installation under desks or discreetly hidden behind displays. In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.

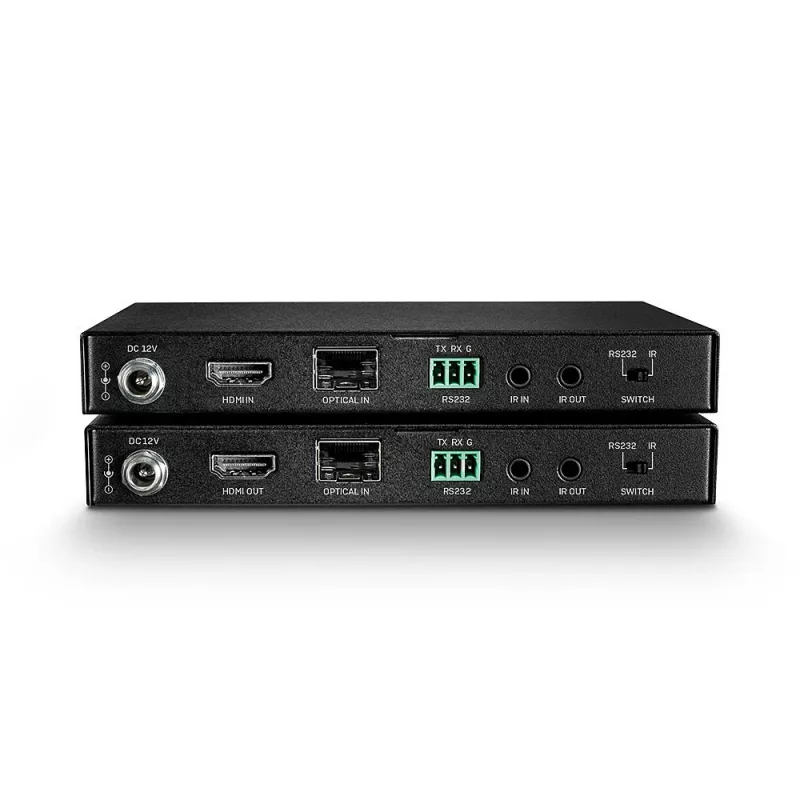

Featuring bi-directional IR and RS-232 ports, the extender provides the capability for source equipment to be seamlessly controlled from the display side, and the display can also be controlled from the HDMI source device, great for providing simple, flexible control over the installation for the user. Alternatively, when IR is not used, support for RS-232 enables the extension of control signals as part of a larger installation.

Lindy 300m Fibre Optic HDMI 18G & IR Extender. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Maximum transfer distance: 300 m. Connectivity technology: Wired, Fiber optic connector: LC, Serial interface type: RS-232. Operating voltage: 12 V, Input current: 0.5 A. Width: 150 mm, Depth: 20 mm, Height: 74.4 mm. Package width: 305 mm, Package depth: 180 mm, Package height: 75 mm

How to use

Connect the transmitter to the HDMI source (Blu‑Ray player, 4K media player or PC) and the receiver to the display or projector using standard duplex LC multimode fibre cable. Power both units with the supplied 12 V DC adapters using the screw-type DC jacks. If required, connect IR emitters/receivers or an RS-232 control cable to enable remote control from either end. For non‑HDCP 4K@30Hz over longer distances, use single‑mode fibre and verify source compatibility.

Recommendations

Use quality multimode LC 50/125 µm fibre for distances up to 300 m and single‑mode fibre for longer non‑HDCP links. Ensure HDCP compliance on source and display for protected 4K content. Secure mounting and firm DC connections are advised for professional installations to avoid accidental disconnection.
