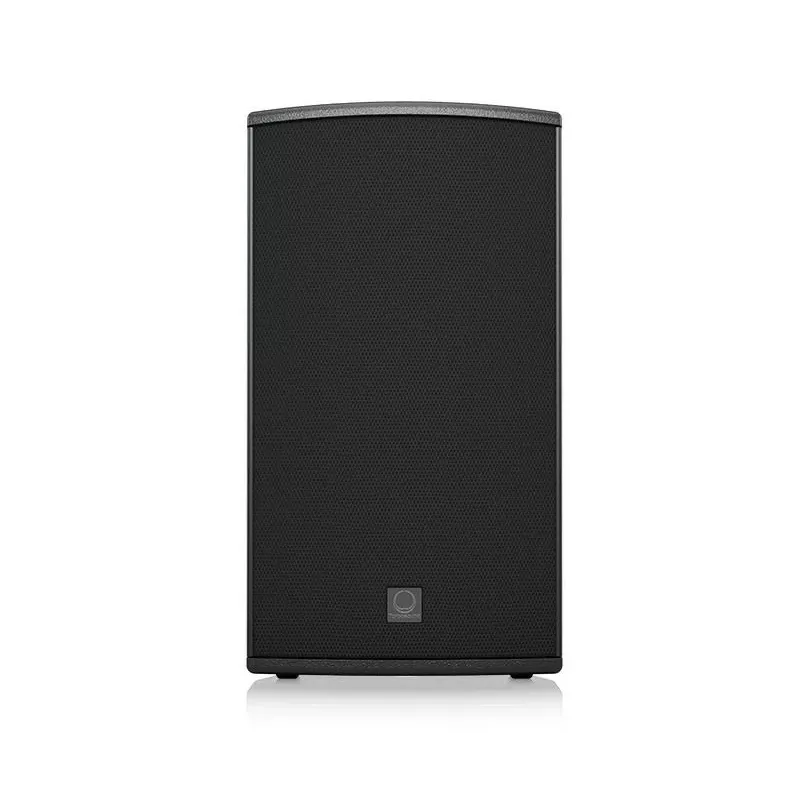

Turbosound TQ12 diffusore passivo a 2 vie 12 pollici

The Turbosound TQ12 is a high-performance passive 2-way loudspeaker designed for professional sound reinforcement. Featuring a 12-inch low-frequency driver and a 1-inch high-frequency compression driver, it delivers exceptional clarity and power for a wide range of applications. The rugged plywood enclosure with durable polyurea coating ensures reliability on the road and in fixed installations.

Advantages

Exceptional sound quality with high SPL capability. Lightweight yet robust construction for easy transport and mounting. Versatile application from live sound to installed systems.

Suitable for

• Live music venues and clubs
• Portable PA systems
• Fixed installations in houses of worship, theaters, and corporate spaces

Key specifications

• 12" low-frequency driver with 2.5" voice coil
• 1" high-frequency compression driver with 1.4" voice coil
• Power handling: 400 W continuous, 1600 W peak
• Frequency response: 55 Hz - 20 kHz (-10 dB)
• Impedance: 8 ohms
• Sensitivity: 97 dB (1 W @ 1 m)
• Maximum SPL: 126 dB peak
• Dispersion: 90° H x 60° V
• Connectors: 2 x Neutrik speakON NL4
• Enclosure: 15 mm plywood with polyurea coating
• Dimensions (H x W x D): 600 x 360 x 345 mm
• Weight: 18.5 kg

Recommendations

Pair with a compatible amplifier delivering 400-800 W at 8 ohms for optimal performance. Use with Turbosound TQ series subwoofers for extended low-frequency response.
