Ugello spray Gardena 13320-20 adatto per sistema di irrigazione a goccia

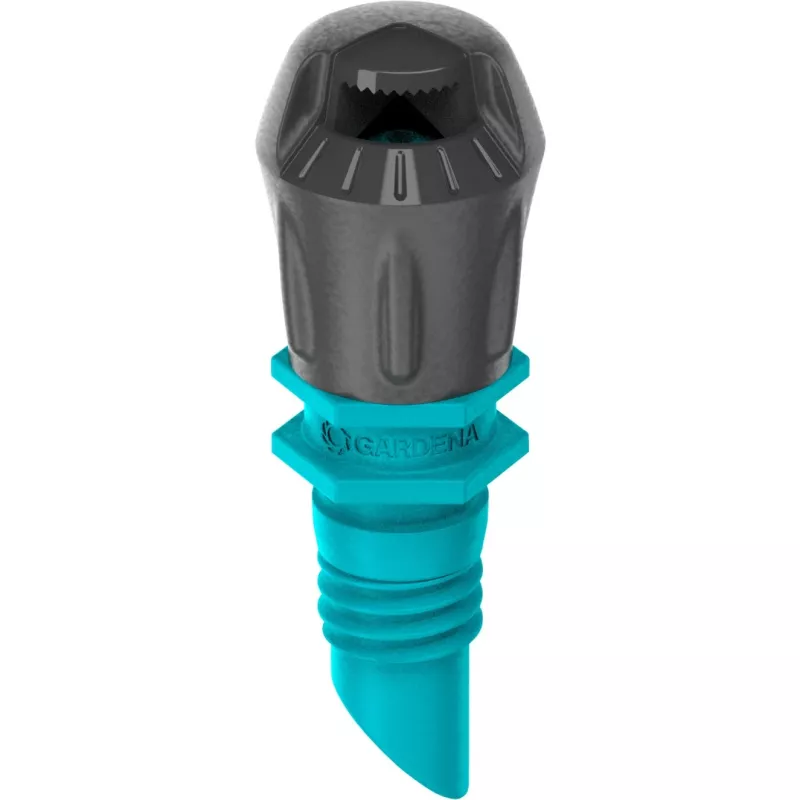

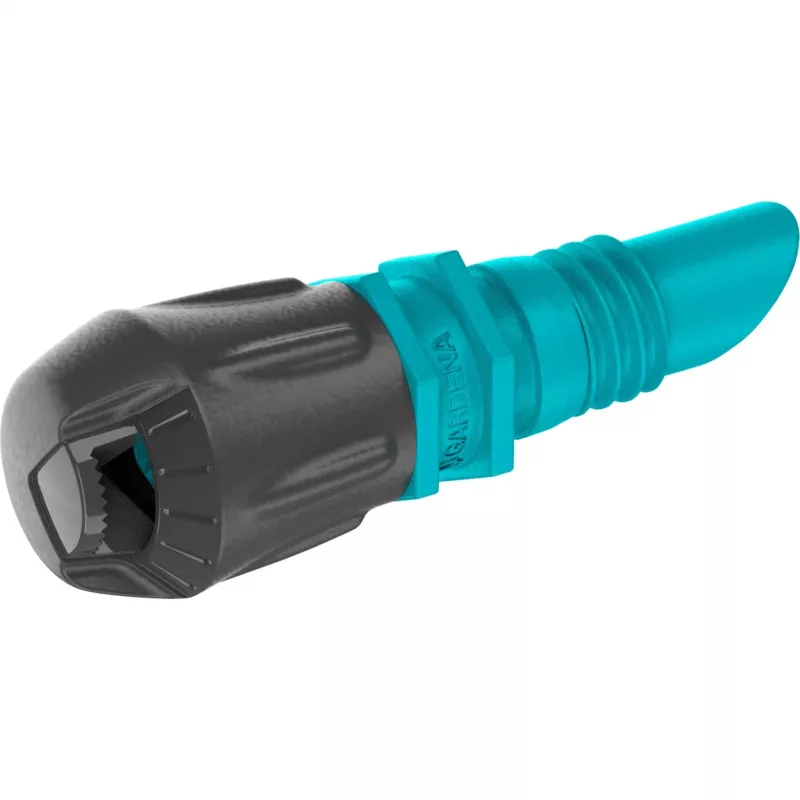

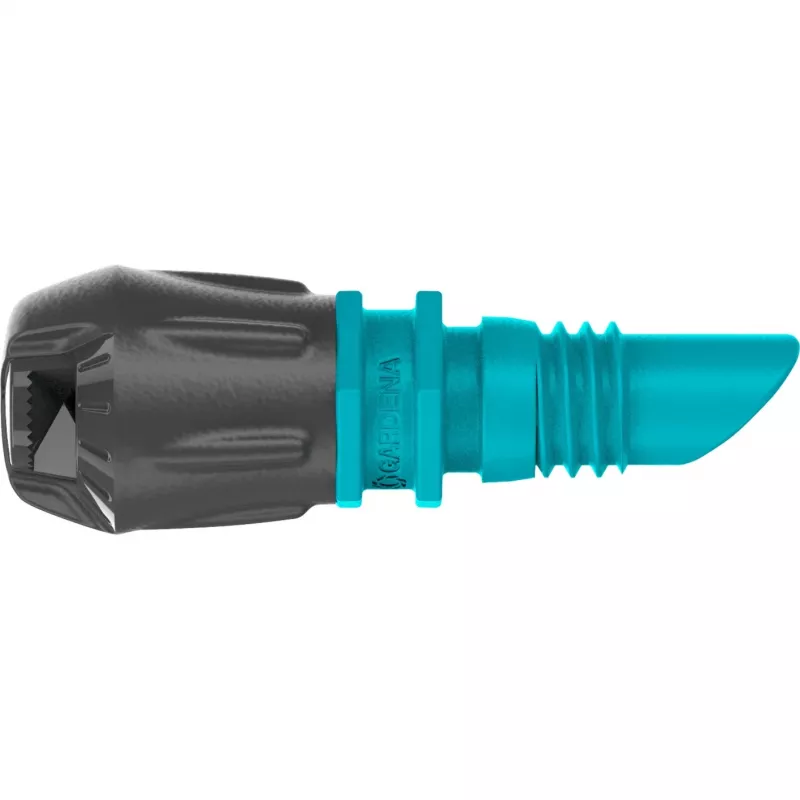

The GARDENA Spray Nozzle 90° (Art. No. 13320-20) is a Micro-Drip-System component designed to irrigate corners and edges of planting beds with a fine spray mist. Made for connection to a 13 mm connecting pipe, the nozzle covers a 90° sector, reaches up to 2.75 m and irrigates an area of approximately 7 m². The nozzle is sold individually and is intended for use in vegetable and flower beds as part of a water-saving drip irrigation system. It is manufactured to GARDENA quality standards in Germany.

Advantages

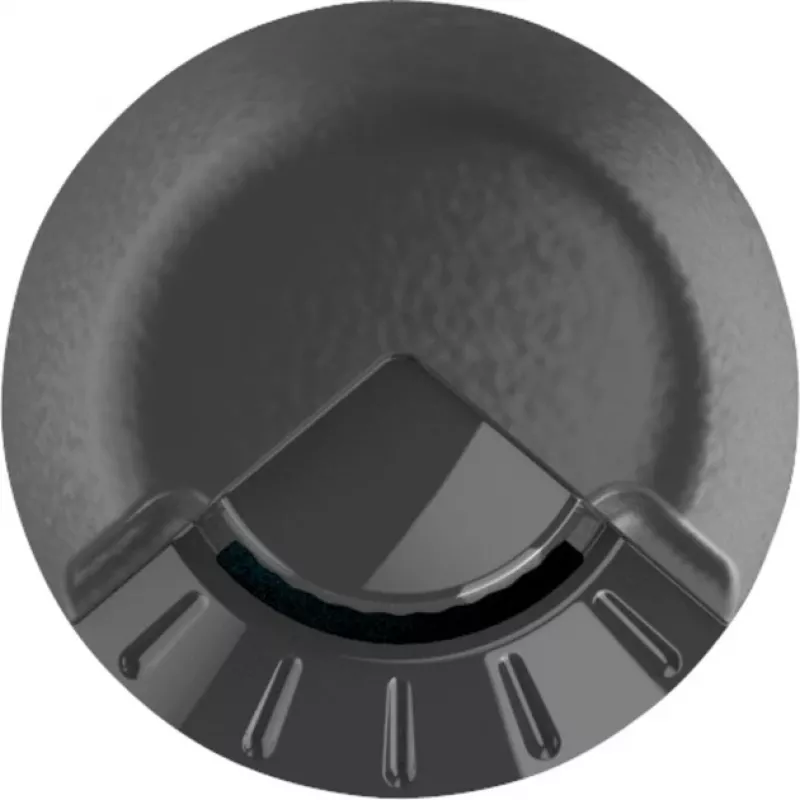

The Spray Nozzle 90° provides area-wide irrigation for bed corners and edges with a consistent spray pattern that is visually identifiable on the spray head. Installation is quick via the Assembly Tool or a T-joint for spray nozzles, and height can be adjusted using the separately available Extension Pipe for Spray Nozzles. Optional accessories such as the Shut-Off Valve allow individual strands of the connecting pipe to be closed or regulated, enabling targeted, water-efficient irrigation. The nozzle is compatible with the GARDENA Micro-Drip-System and is made from durable materials.

Suitable for

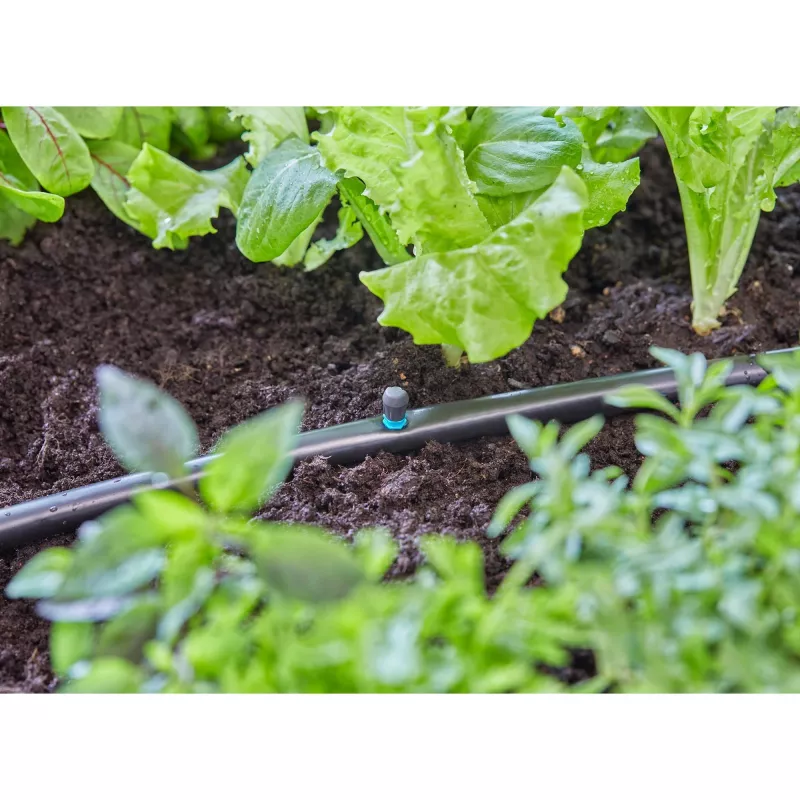

• Irrigating corners and edges of vegetable beds
• Watering flower beds and borders
• Integration into 13 mm Micro-Drip-System connecting pipes
• Use where targeted, water-saving irrigation is required

Key specifications

• Model: GARDENA Spray Nozzle 90° (Art. No. 13320-20)
• System: Micro-Drip-System, fits 13 mm connecting pipe
• Irrigation angle: 90°
• Range: up to 2.75 m
• Irrigated area: approx. 7 m²
• Material: durable plastic (manufacturer data)
• Made in: Germany
• EAN: 4078500059176

How to use

Install the Spray Nozzle 90° into the 13 mm connecting pipe using the GARDENA Assembly Tool or by inserting it into the T-joint for spray nozzles. Position the nozzle at a bed corner or edge so the 90° spray pattern covers the intended area. If greater height is needed to water taller plants from above, attach the separately available Extension Pipe for Spray Nozzles; multiple extension pipes can be combined. To regulate or shut off individual lines, fit the separately available Shut-Off Valve on the connecting pipe and adjust as required.

Recommendations

Use the nozzle as part of a complete GARDENA Micro-Drip-System for best results. Regularly check connections for leaks and adjust nozzle position or the shut-off valve to match seasonal water requirements.
