Unità di distribuzione di corrente PDU Lanberg PDU-08F-0200-BK

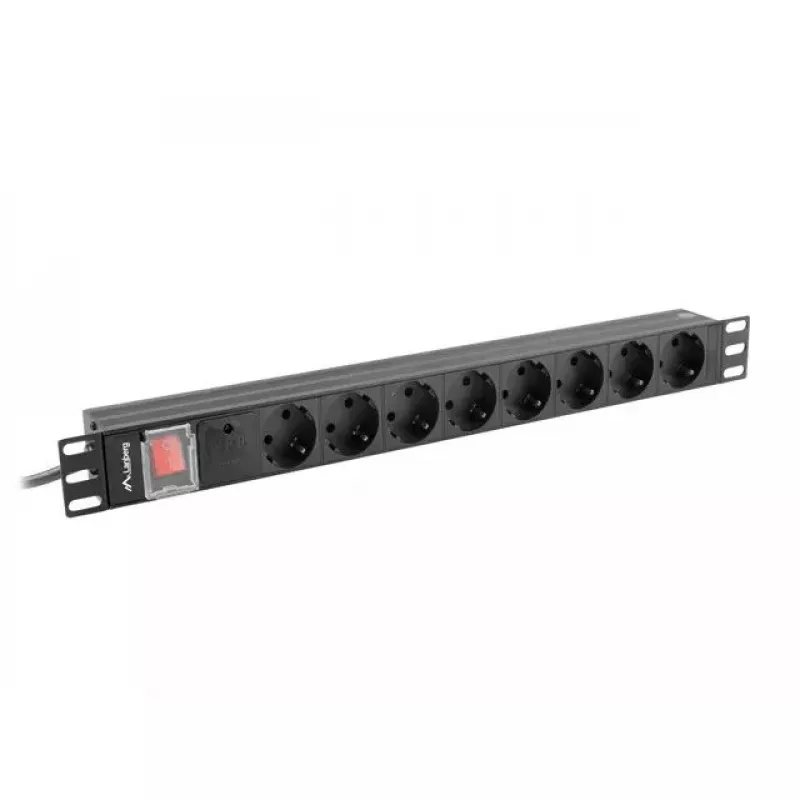

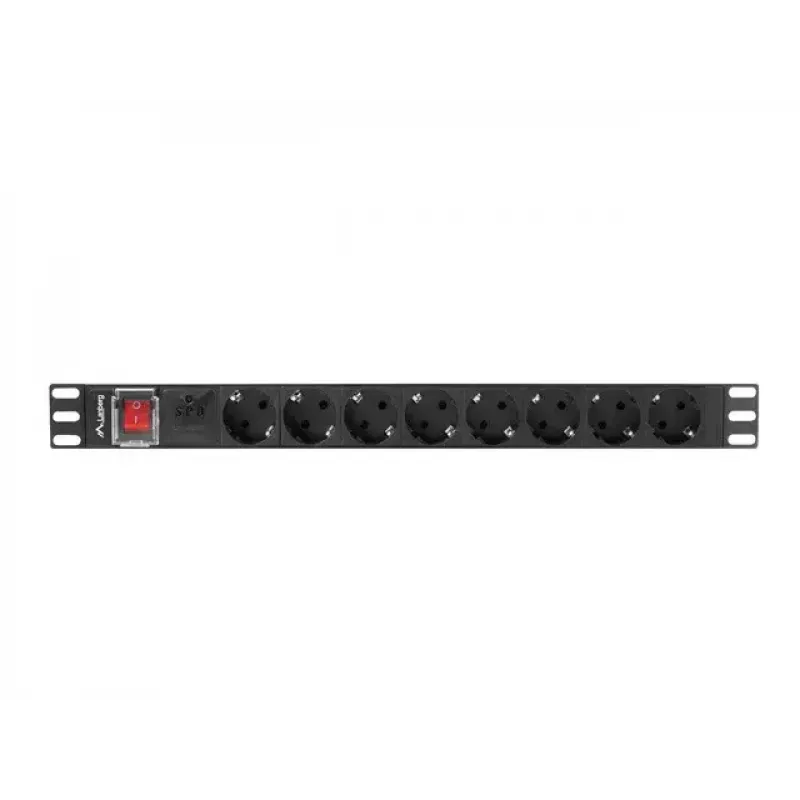

The Lanberg Power Distribution Unit PDU-08F-0200-BK is a 1U rack-mounted PDU designed for horizontal installation at the front of 19" server cabinets. It provides eight Type F AC outlets and is built for professional server environments, offering reliable power distribution with a nominal input voltage of 220–250 V, maximum current 16 A and input frequency 50–60 Hz. Its compact dimensions (482.7 mm × 45 mm × 45 mm) allow efficient use of rack space while maintaining continuous operation under high load.

Advantages

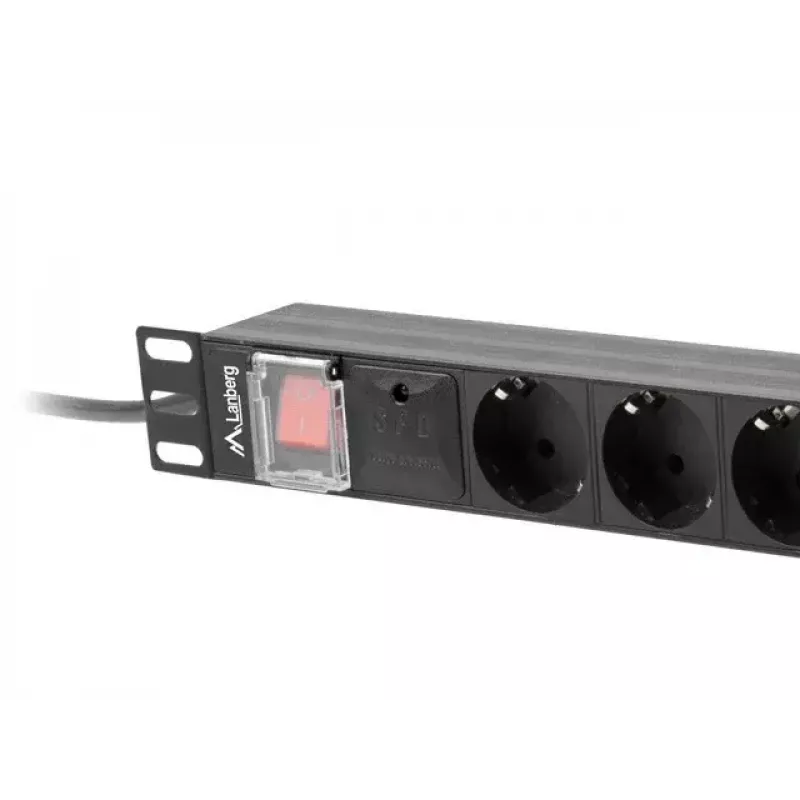

This PDU includes overload protection, user-protective current circuit diaphragms and an automatic fuse with easy maintenance or replacement. The unit features larger cable cross-sections to ensure uninterrupted operation even at high load levels. Its construction for front horizontal mounting in 19" cabinets and the presence of eight grounded Type F outlets make it suitable for centralized and safe power distribution in professional racks.

Suitable for

• Server racks and data centers requiring front-mounted power distribution
• Network cabinets and telecommunications equipment setups
• IT cabinets in office or industrial environments with devices using Type F sockets

Key specifications

• Product type: Switched PDU
• AC outlets: 8 × Type F
• Nominal input voltage: 220–250 V
• Maximum current: 16 A
• Input frequency: 50–60 Hz
• Dimensions (W × D × H): 482.7 mm × 45 mm × 45 mm (1U)
• Colour: Black
• MPN: PDU-08F-0200-BK
• EAN: 5901969429749

How to use

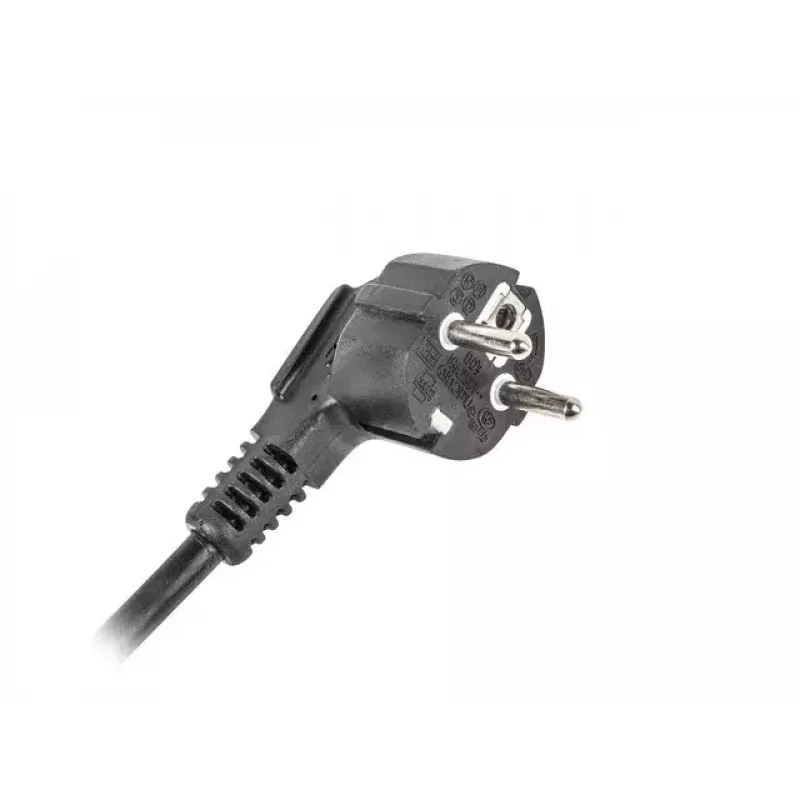

Install the PDU horizontally on the front rails of a 19" server cabinet in a 1U space. Connect the input power cable to a compatible single-phase 220–250 V supply with sufficient capacity for the maximum 16 A load. Plug devices into the eight Type F outlets, taking care to distribute the load evenly across connected equipment. Replace the automatic fuse following the manufacturer's instructions when required and verify protective elements such as overload protection and circuit diaphragms during routine maintenance.

Recommendations

Use the PDU in properly ventilated racks and ensure mains supply, cabling and connected equipment do not exceed the specified 16 A maximum. For optimal performance in critical environments, perform periodic checks of the fuse and protective circuits and arrange connected loads to avoid single-outlet overloads.
