VALUE MPO/MPO accoppiatore - modulo inserto (giunto) aqua

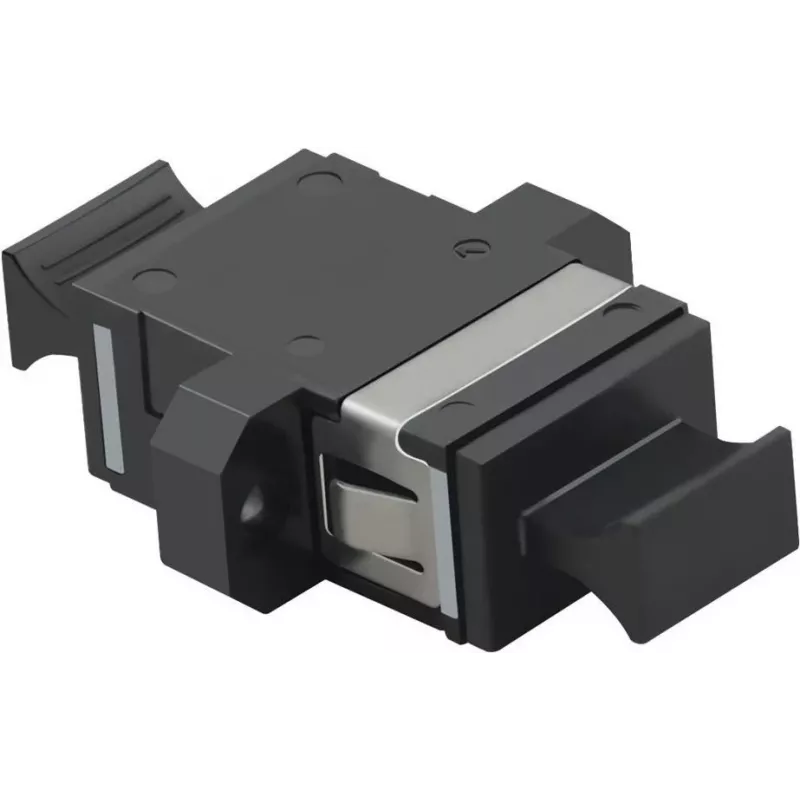

The VALUE MPO/MPO Coupler (21.99.1106) is a high-performance modular insert designed for reliable fiber optic connections in data centers, SANs, LANs, and high-density patching environments. This coupler provides a secure and low-loss interface for MPO connectors, supporting both 12-fiber and 24-fiber configurations.

Advantages

Low insertion loss (<0.3 dB typical) ensures minimal signal degradation. High return loss (>20 dB) reduces back reflections. Durable plastic housing with flange mounting for easy panel integration. Compliant with RoHS and REACH standards.

Suitable for

• Data center fiber patching and cross-connects
• Storage area networks (SANs)
• Local area networks (LANs)
• High-density fiber optic systems

Key specifications

• Adapter Type: MPO/MPO Coupler
• Connector Type Side A: MPO Female
• Connector Type Side B: MPO Female
• Fiber Mode: Multimode
• Fiber Class: OM3/OM4
• Color: Aqua
• Mounting: Flange (Panel Mount)
• Polarity: Key-up to Key-down (Type A)
• Insertion Loss: <0.3 dB typical
• Return Loss: >20 dB typical
• Housing Material: Plastic
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Mating Durability: >500 cycles
• Supported Fiber Count: 12-fiber or 24-fiber MPO connectors

Recommendations

For optimal performance, use with OM3/OM4 multimode MPO patch cables. Ensure proper polarity alignment (Type A) for end-to-end connectivity.
