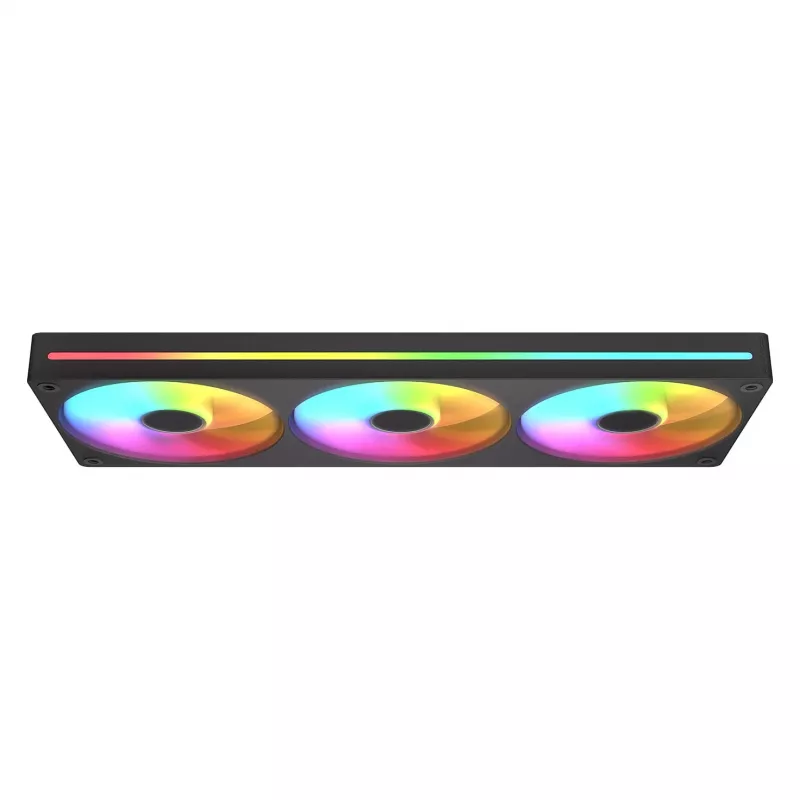

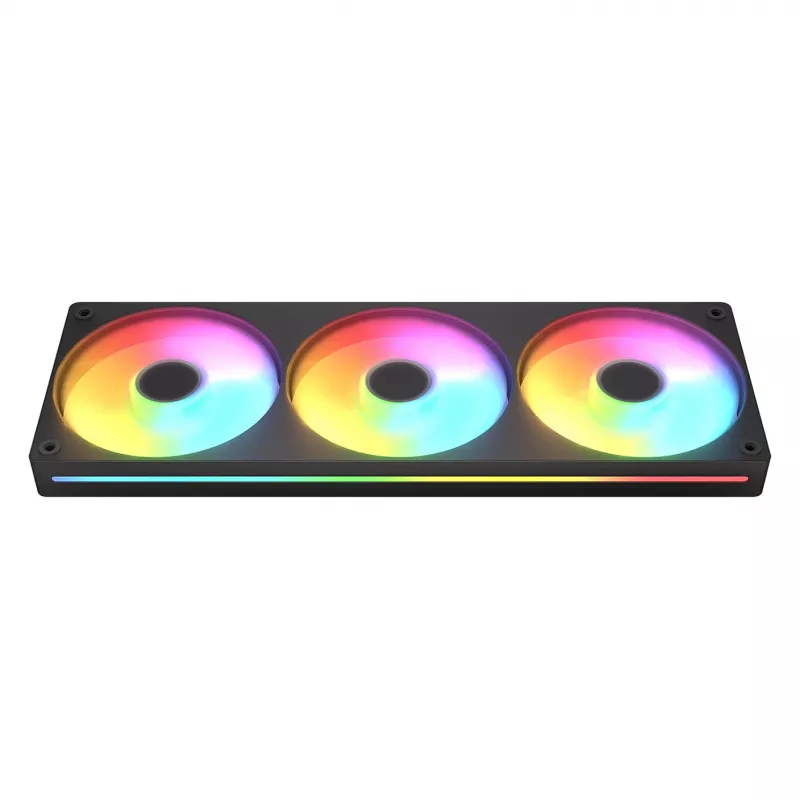

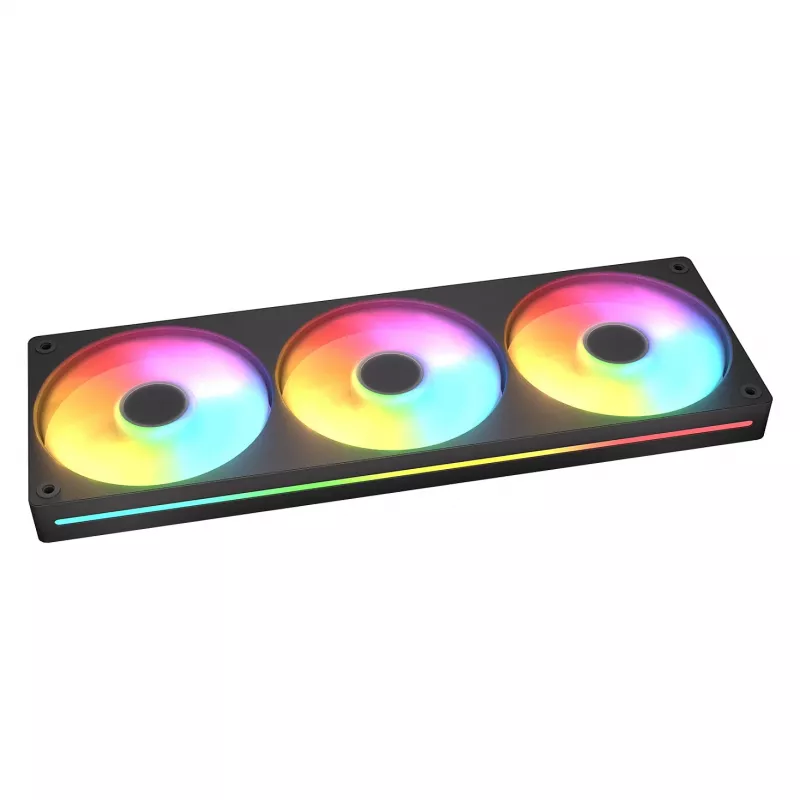

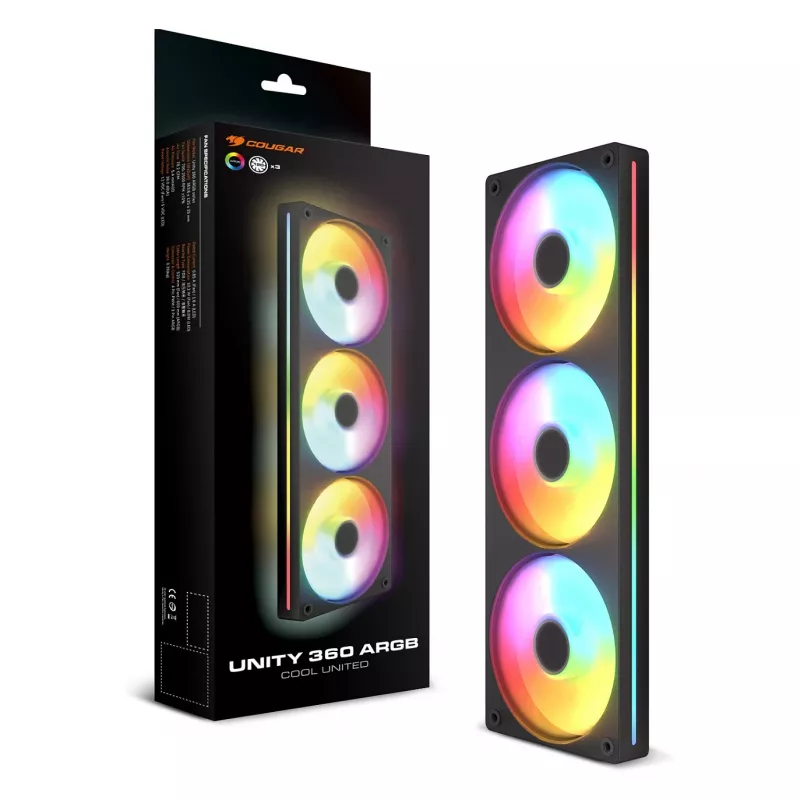

Ventola COUGAR Unity360-FB Single-Frame 360 ARGB PWM Reversed, 120 mm, 700–1600 giri/min, FDB, nero

COUGAR Unity360-FB Single-Frame 360 ARGB PWM Reversed is a 360 mm single-frame fan assembly for PC cooling that integrates three 120 mm fans into one unit. It is designed for radiator and tight-build installations with a slim 25 mm depth and a footprint of 363.6 × 125 mm. The assembly uses fluid dynamic bearings (FDB) and operates across a 700–1600 RPM range, delivering up to 49.01 CFM and a maximum static pressure of 2.31 mmH2O. ARGB side strips provide customizable lighting while the Stream Cable design reduces cable clutter.

Advantages

The single-frame design simplifies installation by connecting multiple fans as one unit, reducing setup time and cable routing complexity. PWM control enables precise automatic fan-speed adjustment based on system temperature for efficient cooling and lower noise. ARGB side strips offer vivid lighting effects compatible with motherboard synchronization. Rubber corner dampers absorb vibrations to minimize operational noise. Only two cables are required to connect and control the whole unit, resulting in a cleaner internal layout.

Suitable for

• PC water-cooling radiators (120 mm x 3 / 360 mm)
• Compact or tight computer cases with limited fan space
• Systems requiring synchronized ARGB lighting and centralized fan control
• Builds prioritizing low noise and vibration damping

Key specifications

• Fan size: 120 mm (three integrated fans in a single 360 mm frame)
• Speed range: 700–1600 RPM (PWM)
• Maximum airflow: 49.01 CFM per fan
• Maximum static pressure: 2.31 mmH2O
• Bearing type: Fluid Dynamic Bearing (FDB)
• Depth: 25 mm (slim profile)
• Footprint: 363.6 × 125 mm (total assembly)
• Lighting: ARGB side strips, motherboard sync compatible
• Color: Black

How to use

Mount the single-frame fan assembly to a 360 mm radiator or compatible case mounting points using the supplied screws. Connect the two required cables: the PWM fan control connector to the motherboard fan header and the ARGB connector to an ARGB header or controller for lighting control. Ensure the airflow direction aligns with your cooling plan (intake or exhaust) and secure the unit so rubber corners contact the chassis to provide vibration damping. Configure the PWM curve and ARGB settings through your motherboard software or compatible controller.

Recommendations

For optimal radiator performance, use the Unity360-FB in push, pull, or push-pull configurations consistent with your cooler and case clearance. Set a PWM profile that balances temperature targets and acoustic preference; enable motherboard ARGB synchronization if unified lighting is desired.
