Ventola per case Noctua 80 mm NF-R8 REDUX-1800, 1800 U/min, 53,3 CFM, 17,1 dB, 3-Pin, 12 V

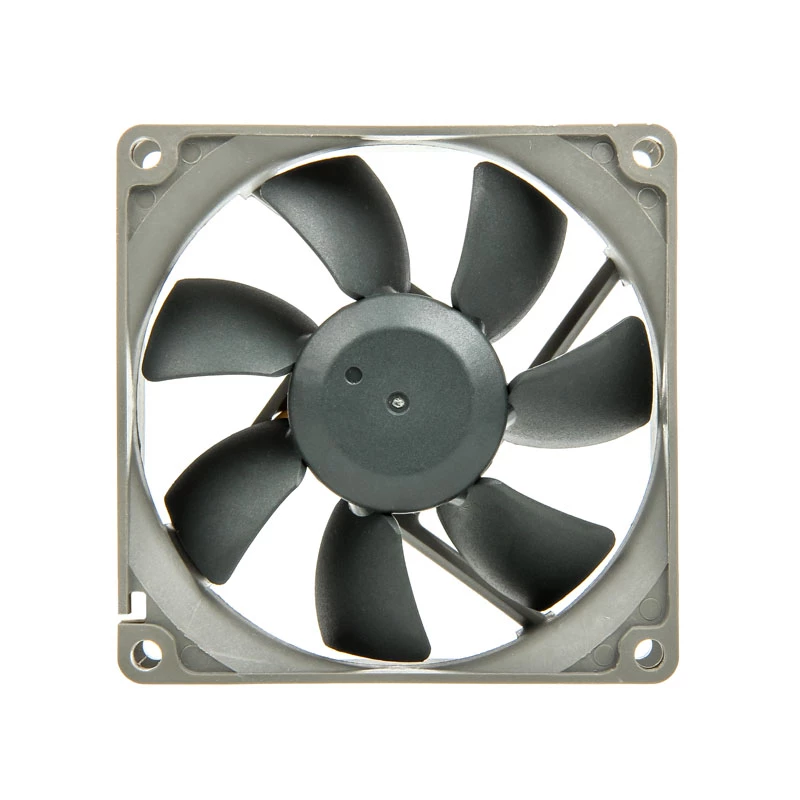

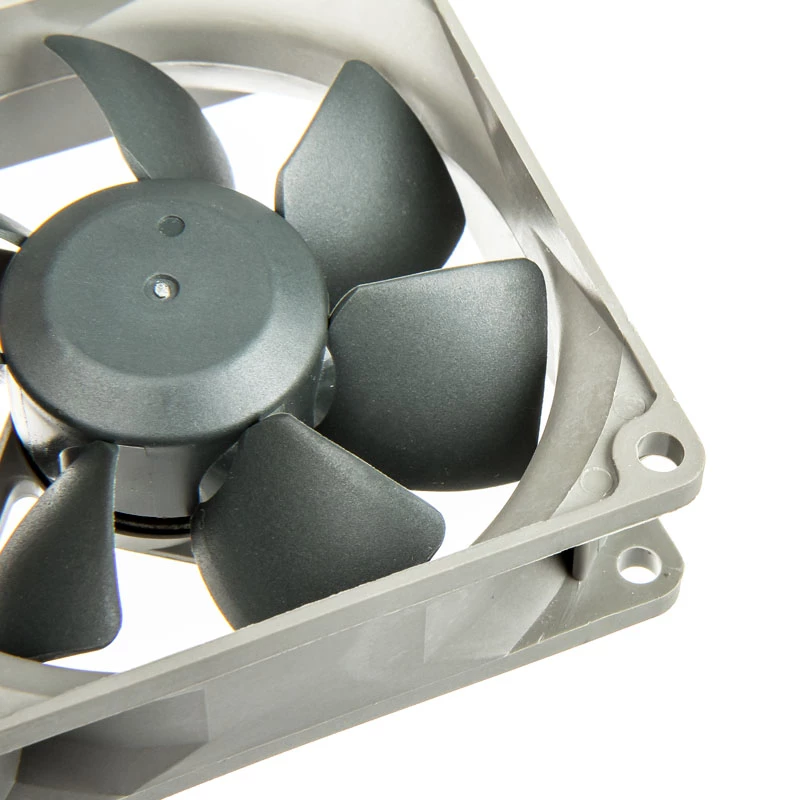

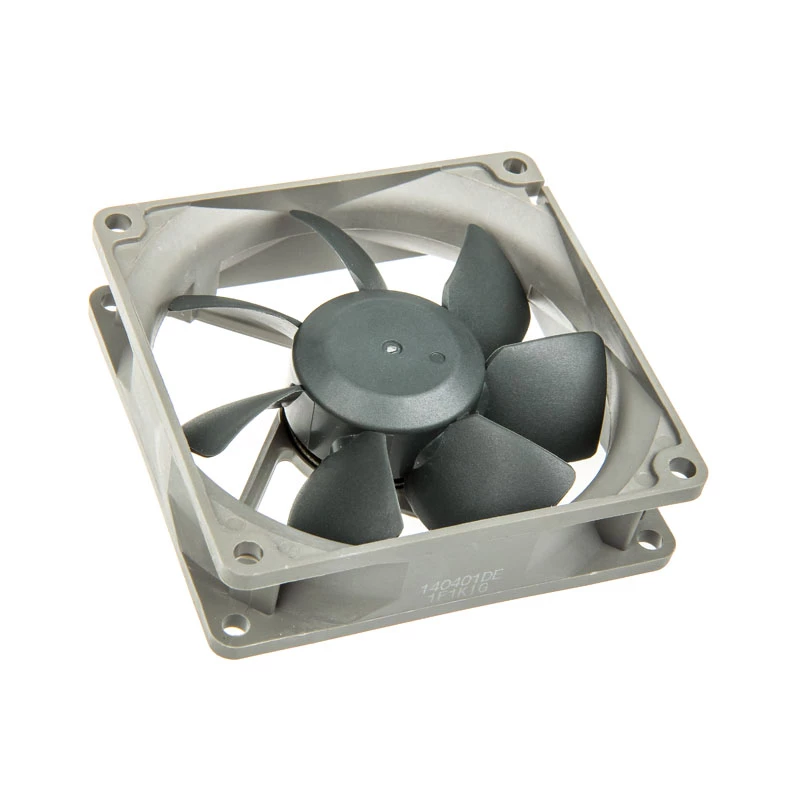

The Noctua NF-R8 redux-1800 is an 80 mm computer case fan engineered for efficient airflow and quiet operation. This redux edition reissues Noctua’s classic NF-R8 design in a streamlined, affordably priced package that retains the essential premium components: an industry-grade SSO bearing, Smooth Commutation Drive 2 and an MTBF rating above 150,000 hours. The 1800 RPM version offers a balanced combination of performance and low noise for case ventilation and other compact cooling applications.

Advantages

The fan combines the proven NF-R8 blade and frame geometry with Noctua’s SSO-bearing technology for long-term stability and low noise. Smooth Commutation Drive 2 reduces torque variations and switching noises, improving running smoothness. The redux-1800 model carries an MTBF rating of over 150,000 hours and is covered by a full 6 years manufacturer’s warranty. Its compact 80 mm size and neutral grey/black colour suit a wide range of builds.

Suitable for

• PC case ventilation in compact or standard builds
• Small form-factor systems and HTPCs
• Cooling blower intakes or exhausts in restricted spaces

Key specifications

• Model: Noctua NF-R8 redux-1800 (MPN: NF-R8 REDUX-1800)
• Fan diameter: 80 mm
• Rated speed: 1800 RPM
• Rated voltage: 12 V
• Max. static pressure: 1.41 mmH2O
• Colour: Grey, Black
• MTBF: >150,000 hours
• Warranty: 6 years

How to use

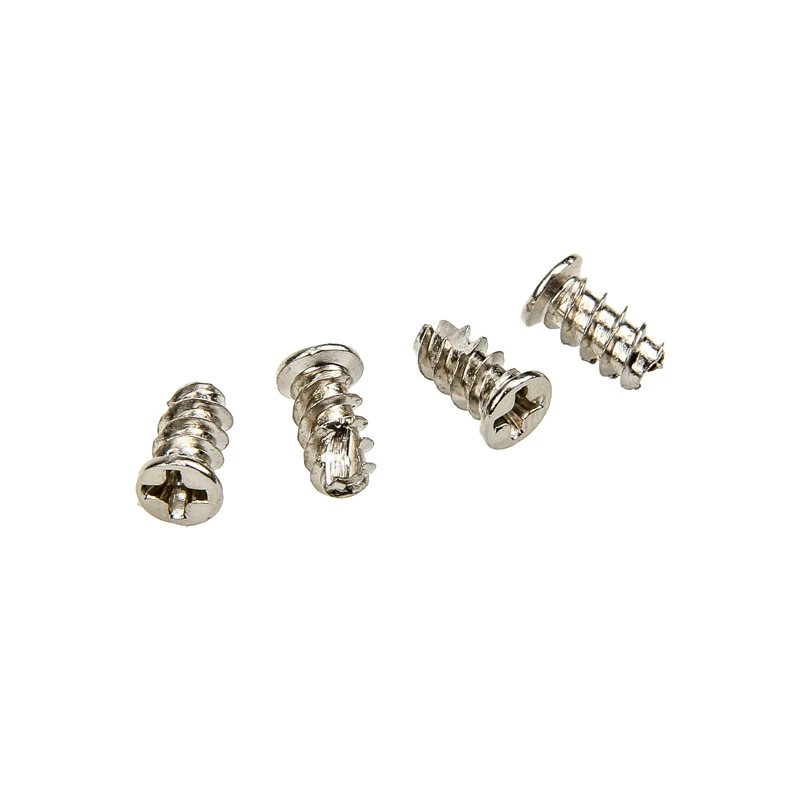

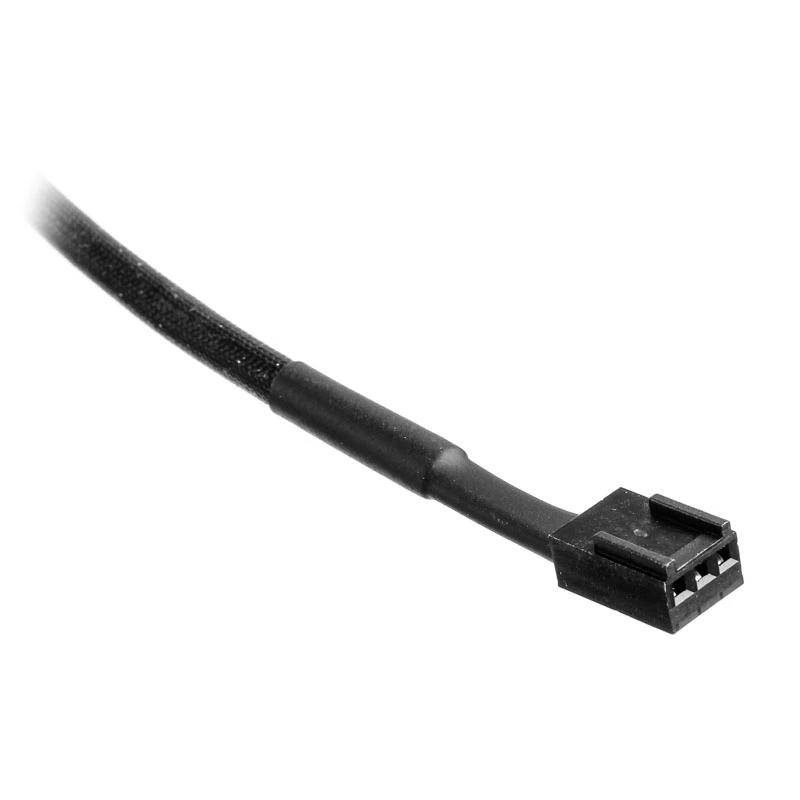

Install the fan in your case or device using the appropriate mounting points for 80 mm fans, observing polarity and connector type. Connect to a 3-pin fan header or compatible power source at 12 V and secure the fan with screws or anti-vibration mounts as required. Place the fan so that airflow direction matches your cooling layout (intake or exhaust). If necessary, use Noctua accessories such as Low-Noise-Adaptors, extension cables or anti-vibration mounts to adapt noise or cabling to your setup.

Recommendations

For best results use the NF-R8 redux-1800 in case ventilation or compact cooling positions where a balance of airflow and low noise is required; consider lowering speed with a Low-Noise-Adaptor for quieter operation when full 1800 RPM is unnecessary.
