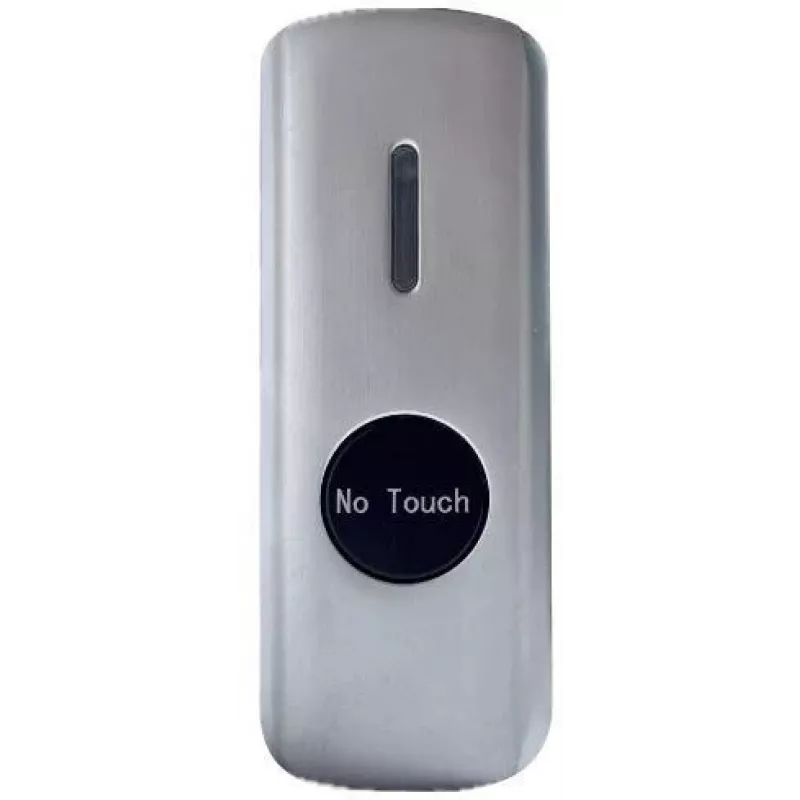

VIDOS OP09 pulsante senza contatto

The VIDOS OP09 is a touchless exit button with a timed hold function, designed to control electric strikes or electromagnetic locks in access control systems. It features a stainless steel and ABS housing and offers a hold time of 1 to 30 seconds.

Key features

• Touchless operation with adjustable sensitivity from 3 to 15 cm
• Timed hold function from 1 to 30 seconds
• Contact type: COM/NO/NC
• Contact rating: 2A / 36V
• LED indicator: green – standby mode, blue – ready mode
• Surface mounting
• IP65 protection rating

Specifications

• Brand: Vidos
• MPN: OP09
• Power supply: DC12-24V
• Operating temperature: -20°C ~ 55°C
• Housing: stainless steel + ABS plastic
• Dimensions: 80 x 32 x 23 mm
