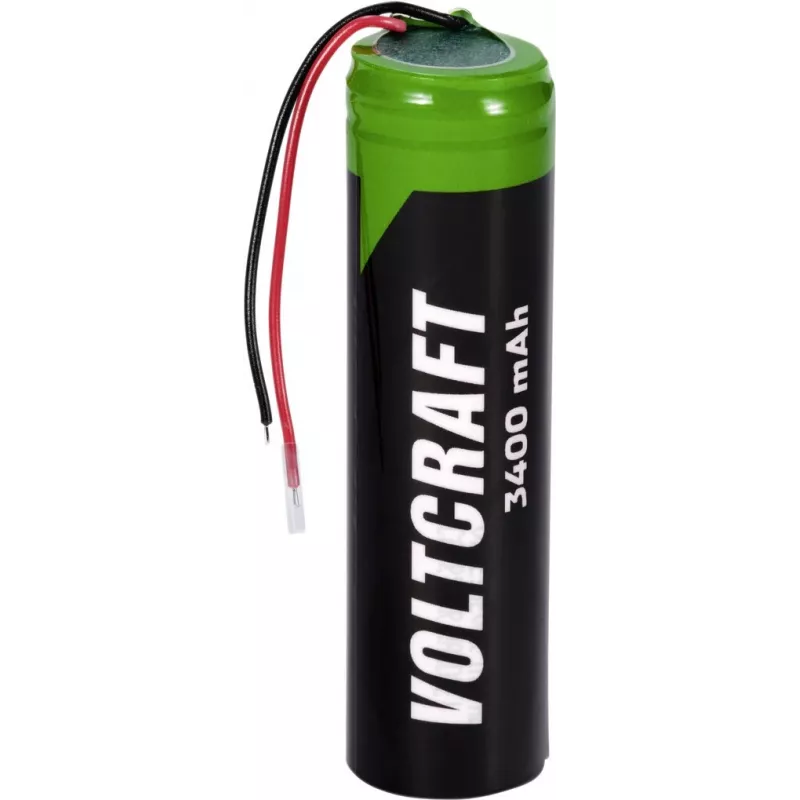

Voltcraft VC-18650PCM Batteria speciale 18650 con cavo al litio 3,6 V 3400 mAh (VC-16569875)

Special purpose lithium-ion battery with integrated protection circuit and cable leads, delivering 3400 mAh capacity at 3.6 V nominal voltage. The 18650 form factor with PCM ensures safe operation in DIY projects, device repairs, and custom battery packs.

Advantages

Integrated PCM protects against overcharge, over-discharge, and short circuits. Pre-attached cable leads simplify installation. High energy density with 12.24 Wh provides long runtime. Reliable lithium-ion chemistry offers stable voltage and low self-discharge.

Suitable for

• DIY electronics projects
• Repairing cordless devices
• Building custom battery packs
• Replacing worn-out 18650 cells

Key specifications

• Battery chemistry: Lithium-Ion (Li-Ion)
• Form factor: 18650
• Nominal voltage: 3.6 V
• Capacity: 3400 mAh
• Energy: 12.24 Wh
• Integrated protection circuit: Yes (PCM)
• Connection: Integrated cable leads
• Rechargeable: Yes
• Number of cells: 1
• Cell diameter: 18.5 mm
• Cell length (incl. PCM): 67 mm
• Weight: 48 g

Recommendations

For optimal performance, use with a compatible lithium-ion charger and ensure correct polarity when connecting. Store in a cool, dry place when not in use.
