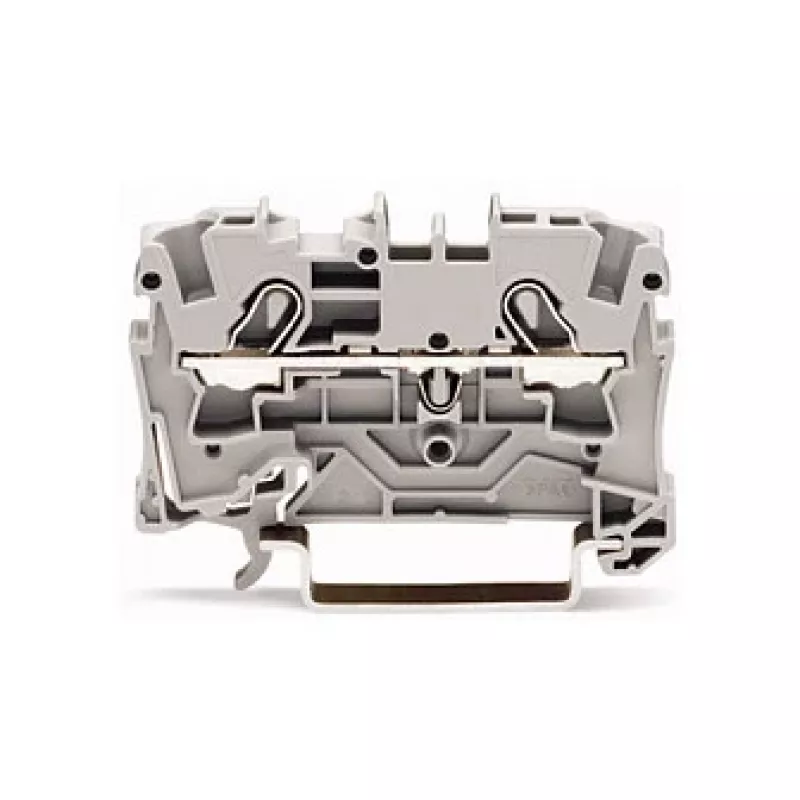

WAGO 2004-1201 morsetto passante, 2 conduttori, 800 V, 32 A, grigio, larghezza 6,2 mm, CAGE CLAMP

The WAGO 2004-1201 is a compact through terminal block from the 2004 series, designed for reliable and maintenance-free wiring in industrial and building installations. With a width of only 6.2 mm, it saves valuable space on the DIN-rail while providing a rated voltage of 800 V and a rated current of 32 A. The CAGE CLAMP® connection technology ensures fast, vibration-proof, and gas-tight connections for solid, stranded, and fine-stranded conductors.

Advantages

Space-saving design with 6.2 mm width; CAGE CLAMP® spring connection for tool-free wiring; high rated voltage of 800 V and surge voltage of 8 kV; wide conductor range from 0.25 to 6 mm² (22-10 AWG); operating temperature range from -35 to +85 °C; suitable for pollution degree 3 and overvoltage category III.

Suitable for

• Control cabinets and distribution boards
• Building automation and lighting systems
• Industrial machinery and equipment
• Power supply and signal wiring

Key specifications

• Connection technology: CAGE CLAMP®
• Number of conductors: 2
• Number of potentials: 1
• Rated voltage (UN): 800 V
• Rated current (IN): 32 A
• Rated surge voltage (Uimp): 8 kV
• Solid conductor: 0.25 - 6 mm² (22 - 10 AWG)
• Stranded conductor: 0.25 - 6 mm² (22 - 10 AWG)
• Fine-stranded conductor: 0.25 - 4 mm² (22 - 12 AWG)
• Strip length: 11 - 13 mm (0.43 - 0.51 in)
• Mounting: DIN-rail 35 mm
• Color: Gray

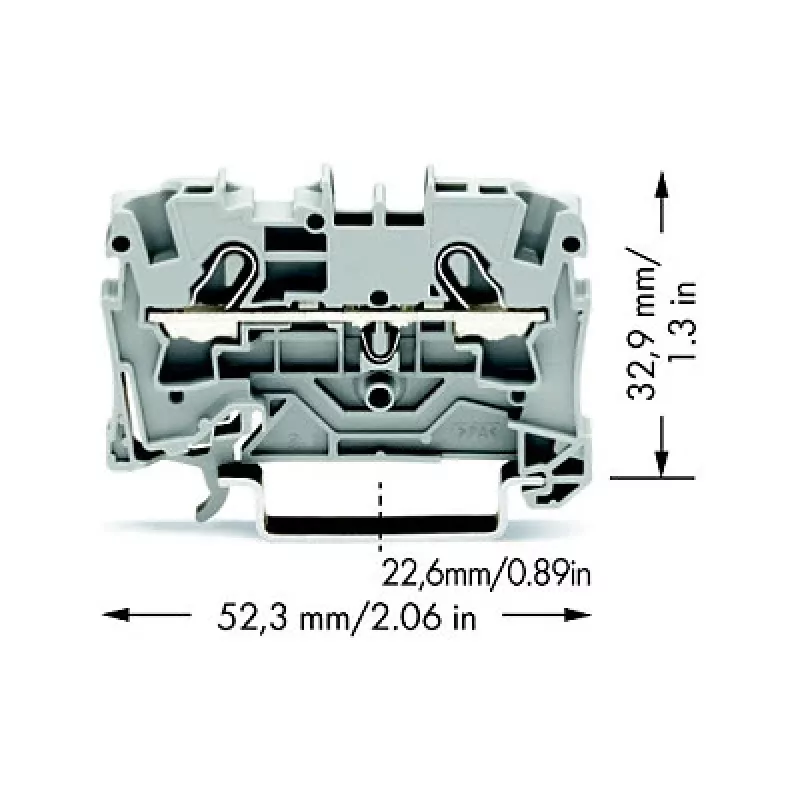

• Dimensions (WxHxD): 6.2 x 52.3 x 32.9 mm
• Weight: approx. 8 g

Recommendations

For optimal performance, use WAGO ferrule crimpers and marking strips. Ensure proper strip length and conductor insertion. Suitable for use with WAGO 2004 series end plates and partition plates.
