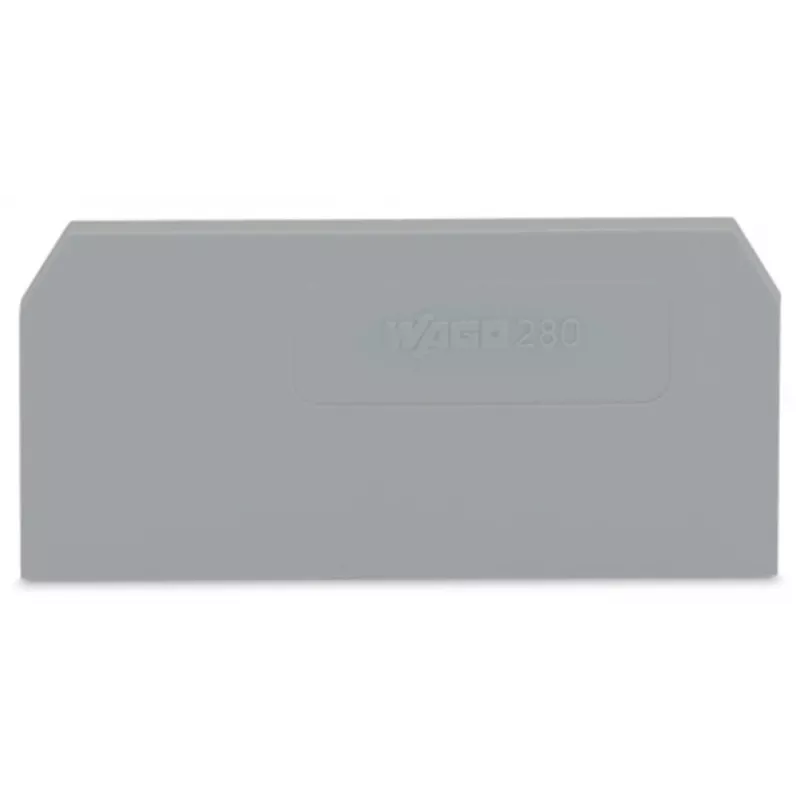

WAGO 280-308 piastra terminale e intermedia - grigio - 2,5 mm² - 52,5 mm x 28 mm - 2,41 g

The WAGO 280-308 is a high-quality end and intermediate plate designed for use with WAGO 280 Series terminal blocks. This grey polyamide 66 (PA 66) component provides electrical isolation and mechanical separation in terminal block assemblies, ensuring safe and reliable operation in industrial and building installations.

Advantages

• Snap-on mounting for quick and easy installation without tools.
• Halogen-free and RoHS compliant, meeting modern environmental standards.
• High flammability rating (UL 94 V-0) and glow-wire test at 850 °C for enhanced safety.
• Wide operating temperature range from -35 °C to +105 °C, suitable for demanding environments.

Suitable for

• Electrical isolation and mechanical separation in terminal block assemblies
• End plate for WAGO 280 Series terminal blocks
• Industrial control panels and building automation systems

Key specifications

• Product Type: End and Intermediate Plate
• Series Compatibility: WAGO 280 Series
• Nominal Cross Section: 2.5 mm² (AWG 12)
• Colour: Grey
• Material: Polyamide 66 (PA 66)
• Flammability Rating: UL 94 V-0
• Operating Temperature Range: -35 °C to +105 °C
• Mounting Type: Snap-on
• Dimensions: 52.5 mm x 28 mm x 2.5 mm
• Weight: 2.41 g

Recommendations

For optimal performance, use with WAGO 280 Series terminal blocks and ensure proper installation according to manufacturer guidelines. This component is ideal for applications requiring reliable electrical isolation and mechanical stability.
