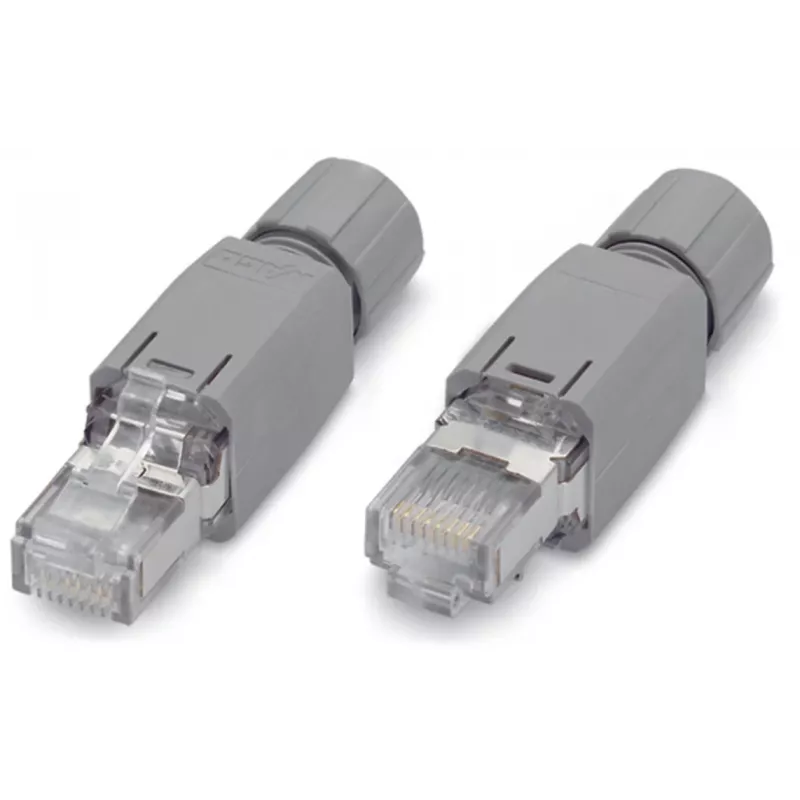

WAGO 750-975 connettore maschio per cavo di sistema RJ-45 per WAGO I/O System 750, grigio, IP20

The WAGO 750-975 is a high-quality RJ-45 system cable connector designed specifically for the WAGO I/O System 750. This connector provides a reliable and secure connection for fieldbus couplers, ensuring seamless data transmission in industrial automation environments. With its compact design and robust construction, it is ideal for use in control cabinets and distributed I/O applications.

Advantages

• Reliable RJ-45 connection for WAGO I/O System 750
• Compact and lightweight design (12 g) for space-saving installation
• Wide operating temperature range (-20 to +70 °C) suitable for harsh industrial environments
• High-quality polyamide 66 housing with UL94 V-0 flammability rating for safety
• Easy plug-in connection method for quick and tool-free installation

Suitable for

• Industrial automation and control systems
• Fieldbus coupler system cable connections
• WAGO I/O System 750 applications
• Control cabinet wiring and distributed I/O

Key specifications

• Connector Type: RJ-45
• Number of Ports: 1
• Color: Grey
• Ingress Protection (IP) Rating: IP20
• Operating Temperature Range: -20 to +70 °C
• Storage Temperature Range: -40 to +70 °C
• Rated Voltage: 50 V
• Rated Current: 1 A
• Housing Material: Polyamide 66 (PA 66)
• Flammability Class: UL94 V-0
• Pollution Degree: 2
• Overvoltage Category: II
• Conductor Count: 8
• Weight: 12 g

Recommendations

For optimal performance, use the WAGO 750-975 connector with genuine WAGO system cables and fieldbus couplers. Ensure proper installation in a clean, dry environment to maintain IP20 protection. This connector is a reliable choice for building robust industrial networks.
