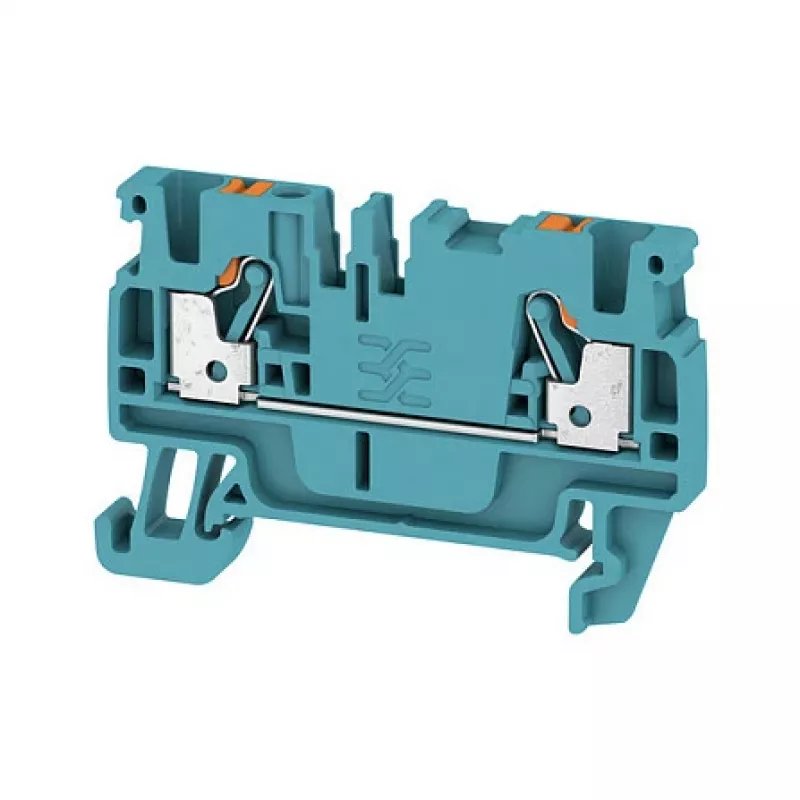

Weidmüller A2C 2.5 BL Morsetto passante Klippon Connect serie A blu

The Weidmüller A2C 2.5 BL is a high-quality through terminal block from the Klippon Connect A-Series, designed for reliable and efficient wiring in industrial applications. With PUSH IN connection technology, it enables fast and tool-free installation, saving time and effort. The blue color coding allows for easy identification in complex control cabinets.

Advantages

PUSH IN connection technology ensures secure and vibration-resistant connections without the need for special tools. The compact design saves space on the DIN rail, and the Wemid insulation material provides excellent thermal and mechanical properties. Rated for voltages up to 800 V and currents up to 24 A, it is suitable for a wide range of applications.

Suitable for

• Industrial control cabinets
• Building automation
• Power distribution systems
• Machine building

Key specifications

• Connection Technology: PUSH IN
• Rated Cross-Section: 2.5 mm²
• Rated Voltage (IEC): 800 V
• Rated Current (IEC): 24 A
• Number of Connections: 2
• Number of Potentials: 1
• Number of Levels: 1
• Color: Blue
• Mounting Type: DIN Rail TS 35
• Conductor Size (Solid): 0.5 - 4 mm²
• Conductor Size (Flexible): 0.5 - 2.5 mm²
• Conductor Size (Flexible with Ferrule): 0.5 - 2.5 mm²
• Stripping Length: 10 mm
• Insulation Material: Wemid
• Operating Temperature: -60 °C to 130 °C
• Pollution Degree: 3
• Flammability Rating (UL 94): V-0

Recommendations

For optimal performance, use with Weidmüller marking systems and accessories. Ensure proper stripping length and use ferrules for flexible conductors when required.
