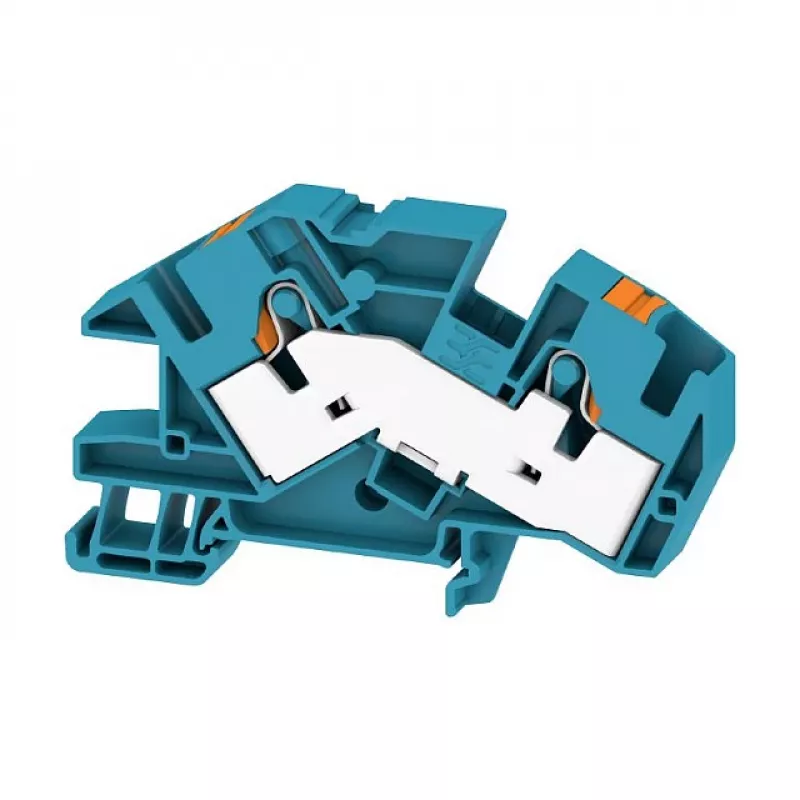

Weidmüller AITB 16 BB 2C BL morsetto di installazione 2668750000

The Weidmüller AITB 16 BB 2C BL is a high-quality installation terminal block designed for reliable and safe electrical connections. With PUSH IN connection technology, it enables fast and tool-free wiring, significantly reducing installation time. This blue terminal block is ideal for use in industrial control cabinets, building installations, and distribution systems.

Advantages

PUSH IN connection technology allows for quick and secure conductor insertion without the need for special tools. The compact design saves space on the DIN rail, and the Wemid insulating material provides excellent thermal and mechanical properties. The terminal block is rated for a wide temperature range from -50 °C to 120 °C, ensuring reliable performance in harsh environments.

Suitable for

• Industrial control panels and switchgear
• Building automation and electrical installations
• Power distribution and junction boxes
• Machine and plant engineering

Key specifications

• Connection Technology: PUSH IN
• Number of Potentials: 2
• Number of Levels: 1
• Number of Connections: 4
• Rated Cross-Section: 16 mm²
• Rated Voltage: 500 V
• Rated Current: 76 A
• Conductor Cross-Section (Rigid): 0.5 - 16 mm²
• Conductor Cross-Section (Flexible): 0.5 - 16 mm²
• Mounting Type: DIN Rail TS 35
• Colour: Blue
• Insulating Material: Wemid
• Stripping Length: 18 mm
• Operating Temperature: -50 °C to 120 °C
• Flammability Rating: UL 94 V-0

Recommendations

For optimal performance, use with appropriate ferrules and ensure proper stripping length. Always follow local electrical codes and regulations. This terminal block is part of the Weidmüller AITB series, known for its reliability and ease of use.
