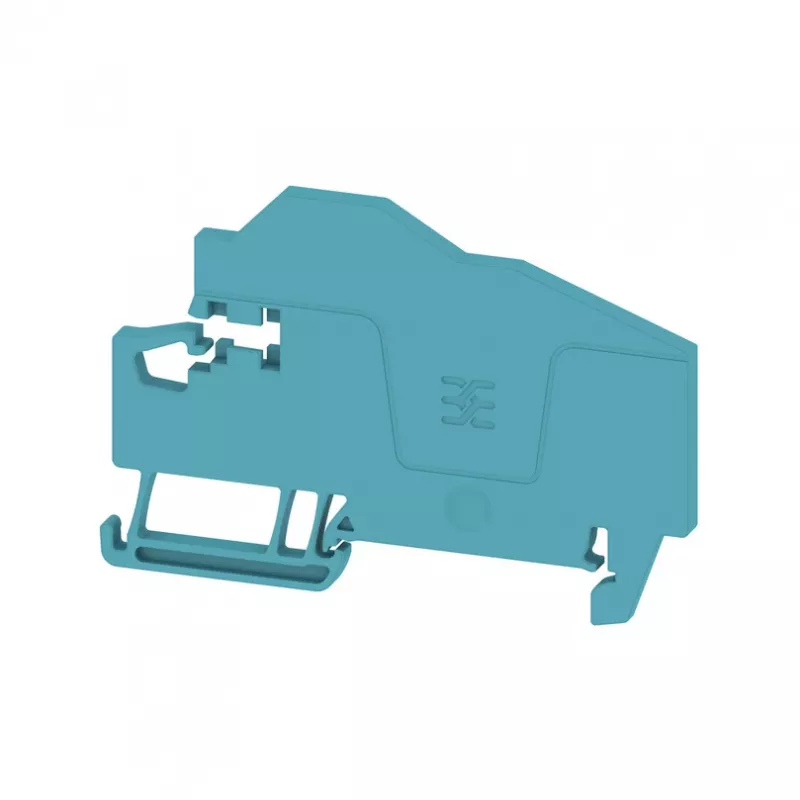

Weidmüller APP ITB 2.5 BB BL piastra di supporto - morsetto di installazione

The Weidmüller APP ITB 2.5 BB BL is a high-quality installation terminal block designed for reliable and efficient electrical connections. With PUSH IN connection technology, it ensures fast and tool-free wiring, making it ideal for industrial and building installations. The blue housing provides clear color coding for easy identification.

Advantages

PUSH IN technology enables quick and secure conductor connection without special tools. The compact design saves space in control cabinets and junction boxes. Rated for 400 V and 24 A, it handles demanding applications. The WEMID insulation material with V-0 flammability rating ensures high safety and durability.

Suitable for

• Industrial control systems
• Building automation
• Distribution boards
• Lighting and power circuits

Key specifications

• Connection Technology: PUSH IN
• Number of Poles: 3
• Rated Cross-Section: 2.5 mm²
• Rated Voltage (IEC): 400 V
• Rated Current (IEC): 24 A
• Rated Impulse Voltage: 4 kV
• Pollution Degree: 3
• Insulation Material: WEMID
• Flammability Rating (UL 94): V-0
• Color: Blue
• Mounting Type: Direct mounting
• Number of Connections: 6
• Conductor Cross-Section, Rigid: 0.5 mm² – 4 mm²
• Conductor Cross-Section, Flexible: 0.5 mm² – 4 mm²
• Stripping Length: 10 mm
• Operating Temperature: -25 °C to 55 °C

Recommendations

For optimal performance, use with appropriate ferrules and ensure proper stripping length. Suitable for use in environments with pollution degree 3.
