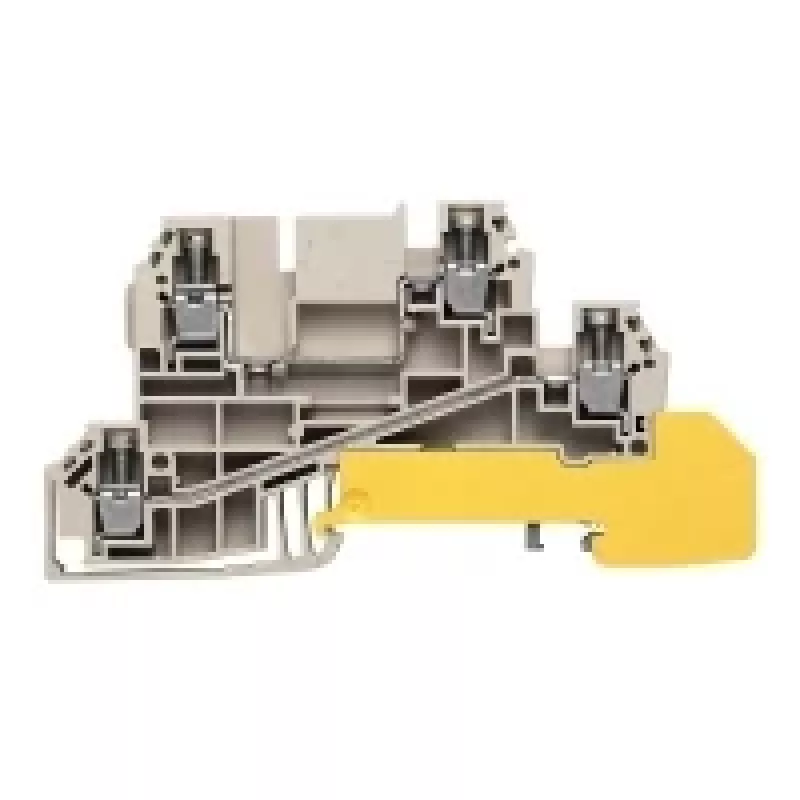

Weidmüller morsetto passante, beige, 2,5 mm², 24 A, collegamento a vite, 50 pz.

The Weidmüller 1030200000 is a high-quality feed-through terminal block designed for reliable and secure electrical connections. With a nominal cross-section of 2.5 mm² and a rated current of 24 A, it is ideal for industrial control systems, panel building, and distribution applications. The beige insulating housing is made from Wemid (PA 66) with a V-0 flammability rating, ensuring durability and safety.

Advantages

This terminal block features a proven screw connection technology that provides a secure and vibration-resistant wire termination. The compact design saves space on DIN rails, and the clear marking options simplify identification. The wide operating temperature range from -50 °C to +120 °C makes it suitable for harsh environments.

Suitable for

• Industrial automation and control cabinets
• Power distribution and junction boxes
• Machine building and plant engineering
• Lighting and HVAC systems

Key specifications

• Connection technology: Screw connection
• Nominal cross-section: 2.5 mm²
• Rated current (IEC): 24 A
• Rated voltage (IEC): 800 V
• Number of connections: 2
• Number of potentials: 1
• Mounting type: DIN Rail TS 35
• Insulating material: Wemid (PA 66)
• Flammability rating (UL 94): V-0
• Colour: Beige
• Operating temperature range: -50 °C to +120 °C
• Stripping length: 10 mm
• Clamping range (min/max): 0.5 mm² / 4 mm²
• Tightening torque: 0.4 - 0.8 Nm
• Pollution degree: 3
• Approvals: UL, CSA, VDE, EAC, KEMA
• Packaging unit: 50 pieces

Recommendations

For optimal performance, use with appropriate screwdrivers and ensure proper torque settings. Pair with Weidmüller marking systems for clear identification. Always follow local electrical codes and standards.
