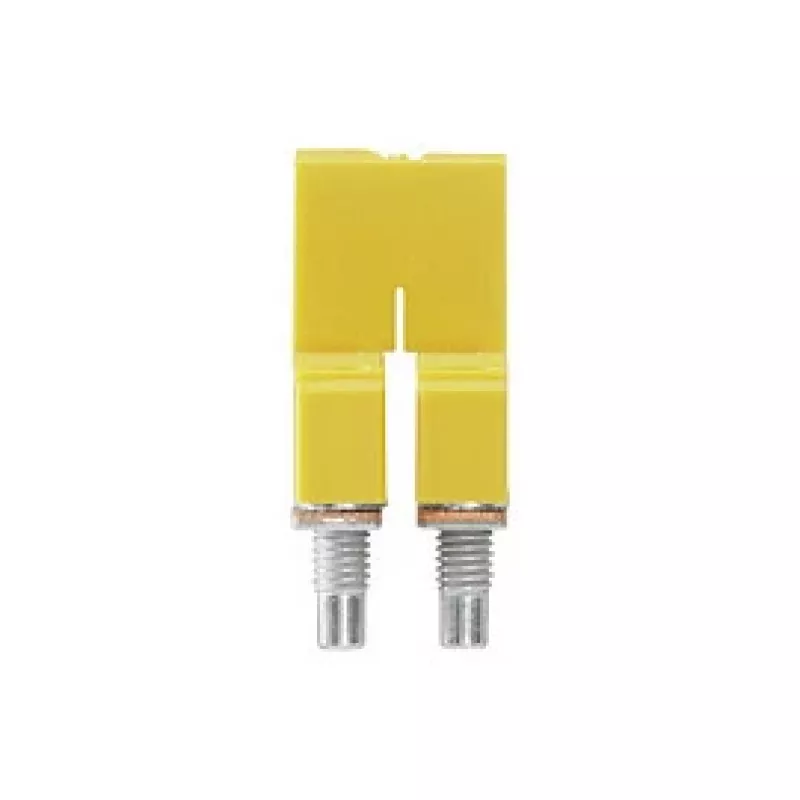

Weidmüller WQV 4/2 Connettore trasversale, 2 poli, 4 mm², giallo, 50 pezzi

The Weidmüller WQV 4/2 is a high-quality cross-connector designed for use with W-Series terminal blocks. It enables efficient and reliable electrical connections between adjacent terminals, saving time and reducing wiring errors. This pack contains 50 pieces, making it ideal for large-scale industrial installations.

Advantages

• Quick and tool-free installation via direct plug-in
• Space-saving design with a pitch of 5.1 mm
• Robust polyamide housing with UL 94 V-0 flammability rating
• Wide operating temperature range from -60 to 130 °C

Suitable for

• Industrial control panels
• Building automation systems
• Power distribution units
• Machine wiring

Key specifications

• Product Type: Cross-Connector
• Number of Poles: 2
• Compatible Terminal Block Series: W-Series
• Nominal Cross-Section: 4 mm²
• Rated Voltage: 800 V
• Rated Current: 32 A
• Insulation Material: Polyamide (Wemid)
• Color: Yellow
• Operating Temperature: -60 to 130 °C
• Flammability Rating: UL 94 V-0
• Quantity per Pack: 50 pieces
• Pitch: 5.1 mm
• Mounting Type: Plug-in
• RoHS Compliant: Yes
• REACH Compliant: Yes
• Dimensions (Single Unit): 29.5 x 5.1 x 20.5 mm (L x W x H)

Recommendations

For optimal performance, use with Weidmüller W-Series terminal blocks. Ensure proper insertion to maintain rated electrical specifications.
