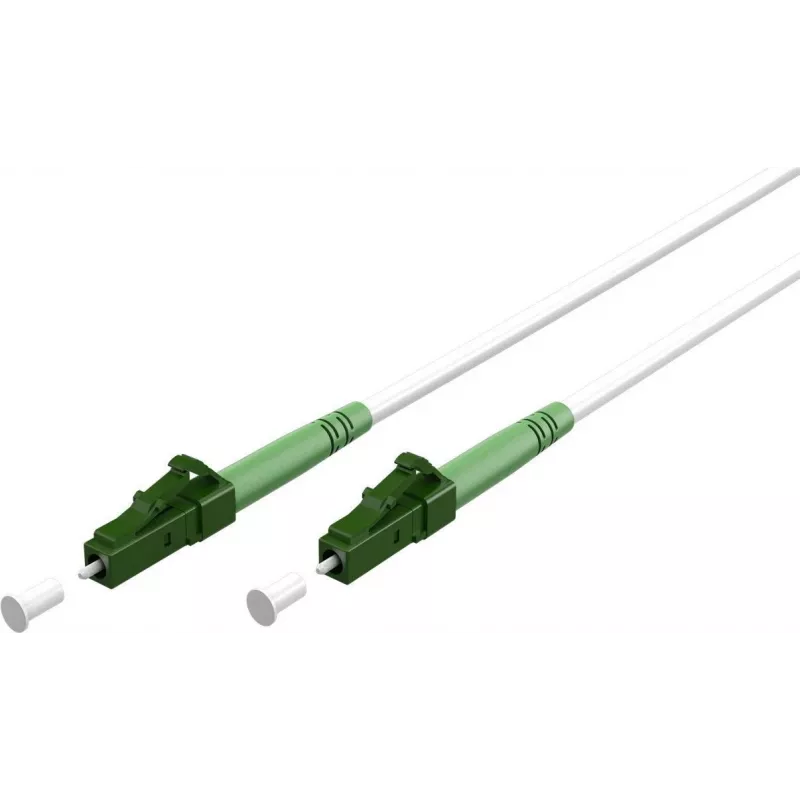

WENTRONIC Goobay 59586 Cavo patch in fibra ottica OS2 Single-Mode LC/APC a LC/APC, 3 m, bianco, LSZH

For FTTH deployments where signal purity is non-negotiable, this 3-meter OS2 single-mode patch cable with LC/APC connectors offers an insertion loss below 0.3 dB and return loss above 60 dB. The angled polish of the APC ferrules virtually eliminates back reflections, making it a dependable link between ONT and wall outlet in GPON and XGS-PON networks.

Highlights

• LC/APC to LC/APC connectors with ceramic ferrules for precise alignment
• OS2 single-mode fiber, 9/125 µm, optimized for 1310/1550 nm wavelengths
• Low insertion loss < 0.3 dB and high return loss > 60 dB
• LSZH white jacket, 3.0 mm diameter, halogen-free and flame-retardant
• Operating temperature -20 °C to 70 °C, suitable for indoor FTTH use

In daily use

Installing this patch cable is straightforward: the LC/APC connectors click securely into standard FTTH sockets, and the 3-meter length gives you flexibility without excess slack. The white LSZH jacket blends into residential or office environments and meets strict fire safety requirements, emitting low smoke and no halogen gases if exposed to flame. Bend-insensitive fiber construction helps maintain signal integrity even when routed around corners or through cable ducts.

Full specifications

• Connector type: LC/APC (both ends)
• Fiber type: Single-mode OS2, 9/125 µm
• Cable length: 3 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: White
• Cable diameter: 3.0 mm
• Insertion loss (typical): < 0.3 dB
• Return loss (typical): > 60 dB
• Ferrule material: Ceramic
• Polish type: APC (Angled Physical Contact)
• Operating temperature: -20 °C to 70 °C
• Storage temperature: -40 °C to 85 °C
• Compliance: RoHS, CE

Final note

This Goobay patch cable is a solid choice for FTTH installers and network technicians who need reliable, low-reflection connections in fiber-to-the-home setups. The APC polish and LSZH jacket provide both performance and safety, making it a practical component for modern optical networks.
