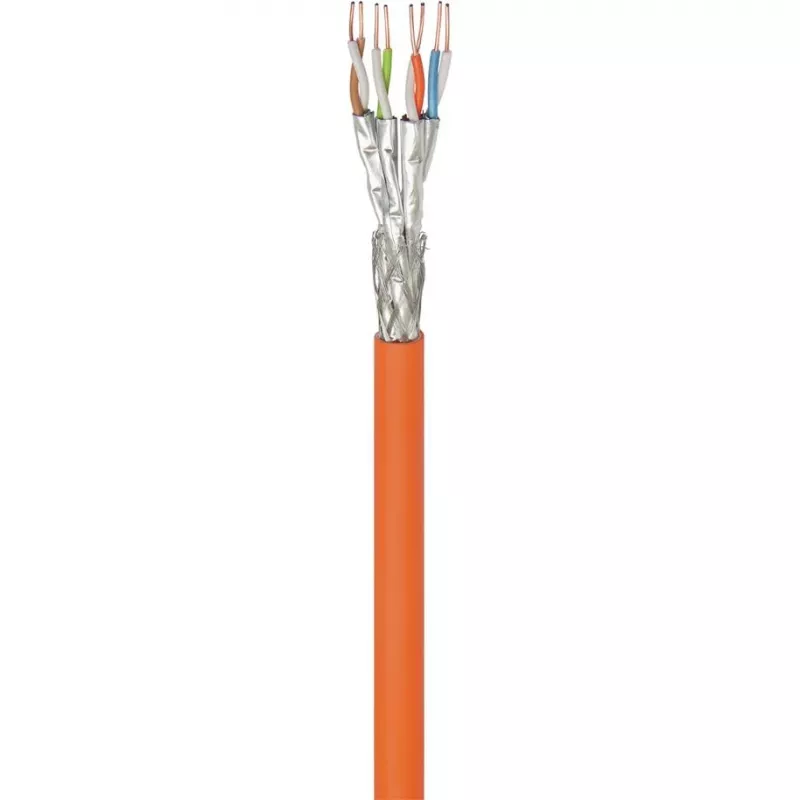

Wentronic Goobay cavo di installazione Cat.7 S/FTP (PiMF) in rame massiccio, 100 m, LSZH, arancione 91888

This Cat.7 installation cable stands out with its solid copper conductors and S/FTP (PiMF) shielding, ensuring reliable 10 Gigabit Ethernet performance over long distances. The LSZH jacket adds safety in case of fire, making it suitable for indoor installations where low smoke and zero halogen emissions are required.

Highlights

• Solid copper conductors (AWG 23/1) for superior signal integrity and PoE support
• S/FTP (PiMF) shielding: each pair individually foiled plus overall braid for maximum crosstalk protection
• LSZH (Low Smoke Zero Halogen) jacket for enhanced fire safety
• Supports 10GBASE-T up to 100 m with 600 MHz bandwidth
• Halogen-free and flame retardant

In daily use

Whether you're wiring a data center, office building, or residential network, this cable delivers stable, high-speed connectivity. The solid core design is ideal for permanent installations, and the robust shielding protects against electromagnetic interference, ensuring consistent performance even in electrically noisy environments.

Full specifications

• Cable Type: Network Installation Cable
• Cable Category: Cat.7
• Shielding Standard: S/FTP (PiMF)
• Conductor Material: Copper (CU)
• Conductor Type: Solid Core
• Wire Gauge (AWG): 23
• Number of Conductors: 8 (4 pairs)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Length: 100 m
• Color: Orange
• Max. Transmission Frequency: 600 MHz
• Max. Data Rate: 10 Gigabit Ethernet (10GBASE-T)
• Impedance: 100 Ohm
• Halogen-free: Yes
• Flame Retardant: Yes
• Suitable for PoE: Yes (PoE/PoE+)
• Application: Indoor Installation
• Standard Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-B.2-10

Final note

For professional network installations requiring high bandwidth and safety, this Cat.7 cable is a dependable choice.
