Wentronic Goobay Cavo patch CAT 6, S/FTP (PiMF), arancione, 30 m - LSZH senza alogeni, rame (93474)

With a 250 MHz bandwidth and S/FTP shielding, this 30 m CAT 6 patch cable delivers reliable 1 Gbit/s Ethernet in noise-sensitive environments.

Overview

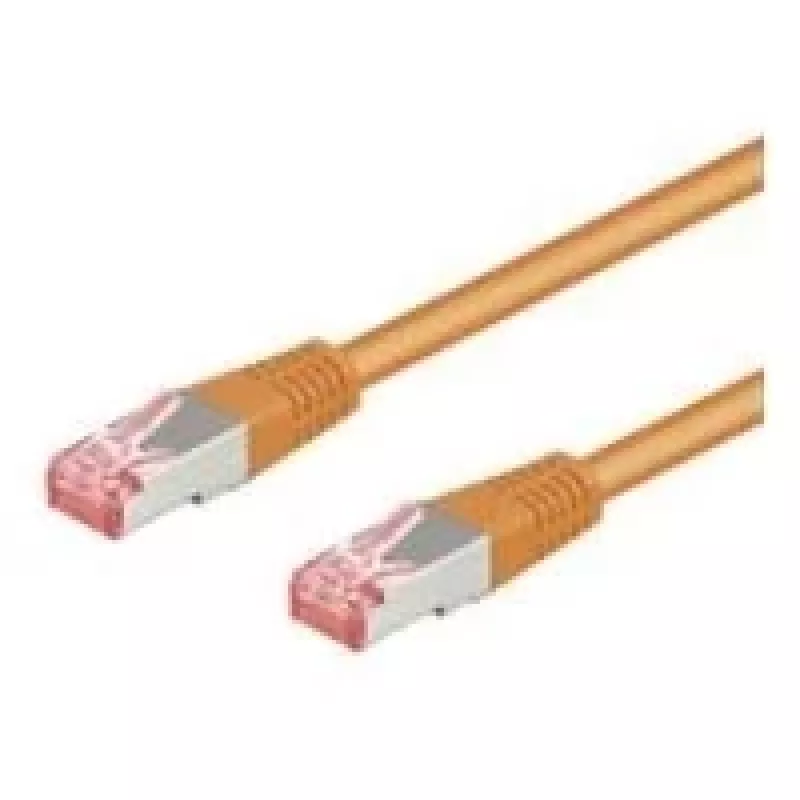

The Wentronic Goobay CAT 6 patch cable is built for high-speed networking over longer distances. Its S/FTP construction combines an overall braided screen with individual foil shielding for each twisted pair (PiMF), providing excellent protection against electromagnetic interference. The cable uses stranded copper conductors (AWG 27/7) for flexibility and is terminated with gold-plated RJ45 connectors wired to TIA/EIA 568B. The LSZH jacket is halogen-free and low-smoke, making it suitable for areas where fire safety is a concern.

What stands out

• S/FTP shielding with PiMF for superior crosstalk and EMI resistance
• Stranded copper conductors for flexibility and durability
• Halogen-free LSZH jacket reduces toxic smoke in case of fire
• Supports Gigabit Ethernet up to 30 m

Technical details

• Cable category: CAT 6
• Shielding: S/FTP (PiMF)
• Conductor: Copper, stranded (7-wire), AWG 27/7
• Jacket: LSZH, halogen-free
• Length: 30 m
• Colour: Orange
• Connectors: RJ45 male to RJ45 male, gold-plated
• Wiring: TIA/EIA 568B
• Bandwidth: 250 MHz
• Data rate: 1 Gbit/s
• Outer diameter: 6.2 mm
• Operating temperature: -20°C to 60°C

Our verdict

A dependable, well-shielded CAT 6 cable for professional installations where interference and fire safety are concerns.
