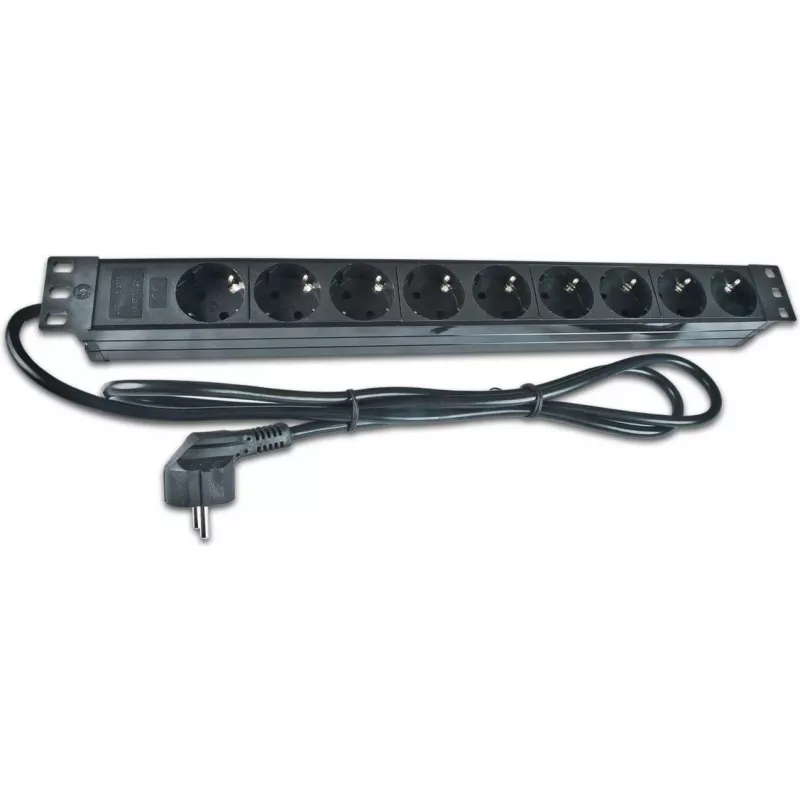

Wirewin 19 pollici 1U unità di distribuzione di corrente con 9 prese Schuko (NVL9)

Rack-mounted equipment often suffers from a shortage of accessible power outlets, leading to cable clutter and inconvenient access. The SLIM WIREWIN NVL9 solves this by providing nine Schuko sockets in a compact 1U 19-inch rackmount form factor, ensuring reliable power distribution for servers, networking gear, and AV equipment.

Who is it for

IT administrators, system integrators, and AV technicians who need a straightforward, unswitched power distribution unit for standard 19-inch racks. It suits environments where basic, dependable power distribution is required without monitoring or switching features.

Main features

• Nine Schuko output sockets (CEE 7/3) for connecting multiple devices.
• 1U rackmount design fits standard 19-inch racks, saving space.
• Aluminum housing in black for durability and a professional look.
• 2-meter input cable with Schuko plug (CEE 7/7) and H05VV-F 3G1.5mm² specification.
• Rated for 16 A maximum current and 3680 W maximum power at 230 V AC.

Specifications

• Product Type: Power Distribution Unit (PDU)
• Mounting Standard: 19-inch Rackmount
• Rack Unit Height: 1U
• Number of Output Sockets: 9
• Output Socket Type: Schuko (CEE 7/3)
• Input Plug Type: Schuko (CEE 7/7)
• Input Cable Length: 2 m
• Input Cable Specification: H05VV-F 3G1.5mm²
• Maximum Current Rating: 16 A
• Maximum Power Rating: 3680 W
• Nominal Voltage: 230 V AC
• Frequency: 50/60 Hz
• Housing Material: Aluminum
• Colour: Black
• Switch: No (Unswitched)
• Mounting Orientation: Horizontal

Tips

Ensure the rack has a horizontal mounting space of 1U available. The unswitched design means power is always on when connected, so plan for external switching if needed. Verify that the total connected load does not exceed 16 A to avoid overloading.
