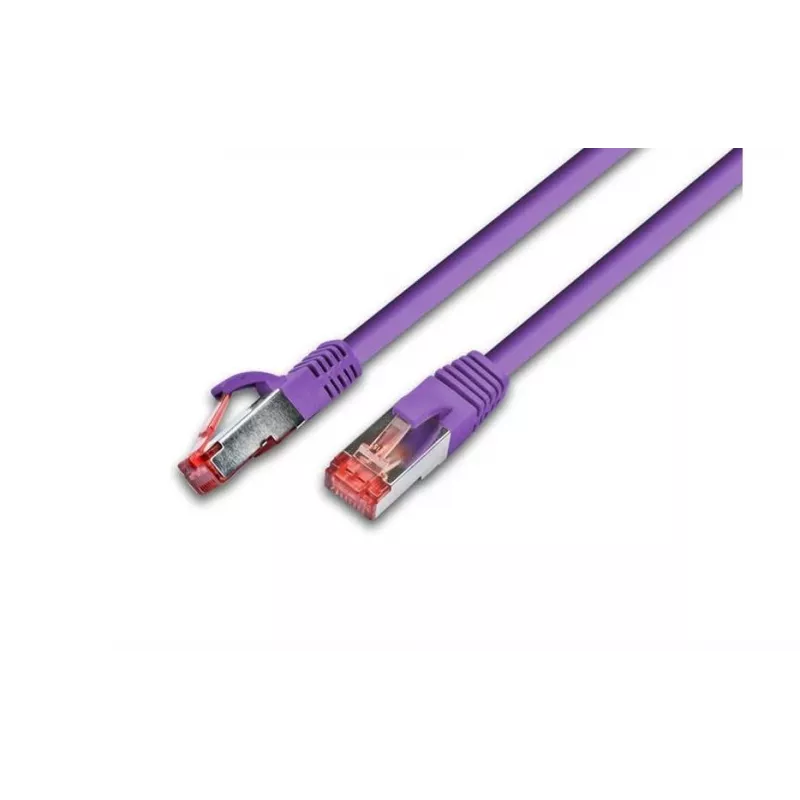

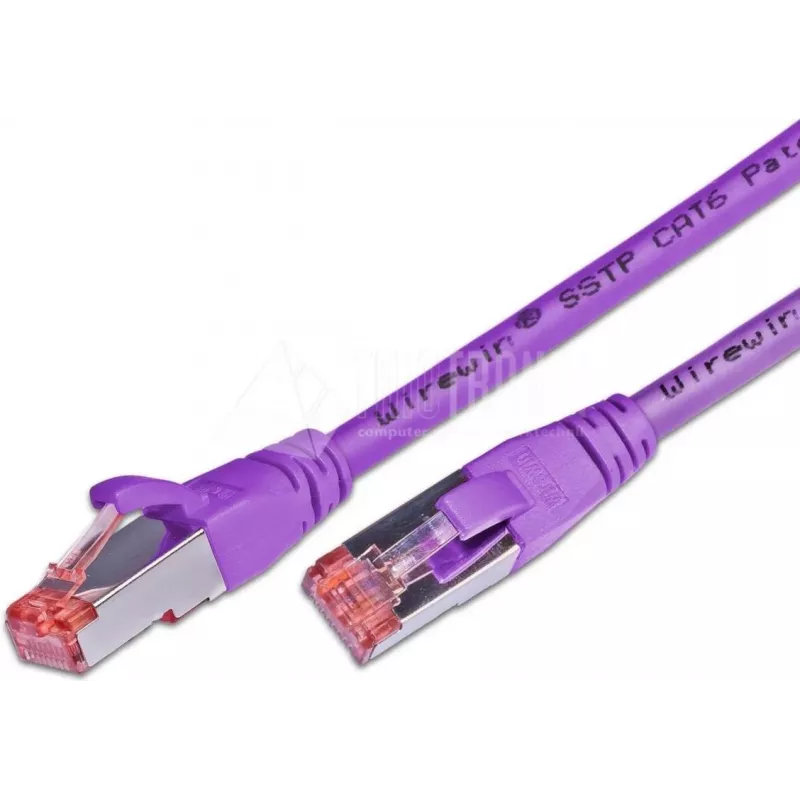

Wirewin cavo patch Cat6 S/FTP LSOH, RJ45, 20m, viola PKW-PIMF-KAT6 20.0 VT

Long cable runs in offices and server rooms often suffer from electromagnetic interference that degrades network performance. This Wirewin Cat6 patch cable solves that problem with S/FTP shielding: each twisted pair is individually foiled (PIMF) and the whole bundle is wrapped in a braided screen, effectively blocking crosstalk and external noise. The result is a stable gigabit link even in electrically noisy environments.

Who is it for

Network administrators, IT technicians, and system integrators who need a reliable, low-smoke, halogen-free cable for structured cabling in offices, data centers, and industrial settings. The 20-meter length is ideal for connecting devices across a room or between adjacent racks.

Main features

• Cat6 performance up to 250 MHz, supporting 10GBASE-T up to 55 meters and Gigabit Ethernet at full 100-meter distance.
• S/FTP shielding (PIMF) with braided screen and foil-wrapped pairs for superior noise immunity.
• LSOH (Low Smoke Zero Halogen) jacket reduces toxic smoke and corrosive gases in case of fire.
• Stranded 26 AWG oxygen-free copper conductors for flexibility and long-term reliability.
• Molded RJ45 connectors with gold-plated contacts ensure secure, corrosion-resistant connections.
• Violet jacket for easy color-coding of network segments.
• Lifetime warranty for peace of mind.

Specifications

• Cable length: 20 m
• Cable standard: Cat6
• Cable shielding: S/FTP (PIMF)
• Connector type: RJ45 male to RJ45 male
• Conductor material: OFC (oxygen-free copper)
• Conductor gauge: 26 AWG
• Jacket material: LSOH
• Colour: Violet
• Bandwidth: 250 MHz
• Supported Ethernet: 10BASE-T, 100BASE-TX, 1000BASE-T, 10GBASE-T (up to 55 m)
• Wiring standard: TIA/EIA-568B
• Jacket diameter: 6.2 mm

Tips

For best performance, avoid sharp bends and do not exceed the minimum bend radius (typically 4x the cable diameter). Use cable ties or Velcro straps to manage excess length without kinking the cable.
