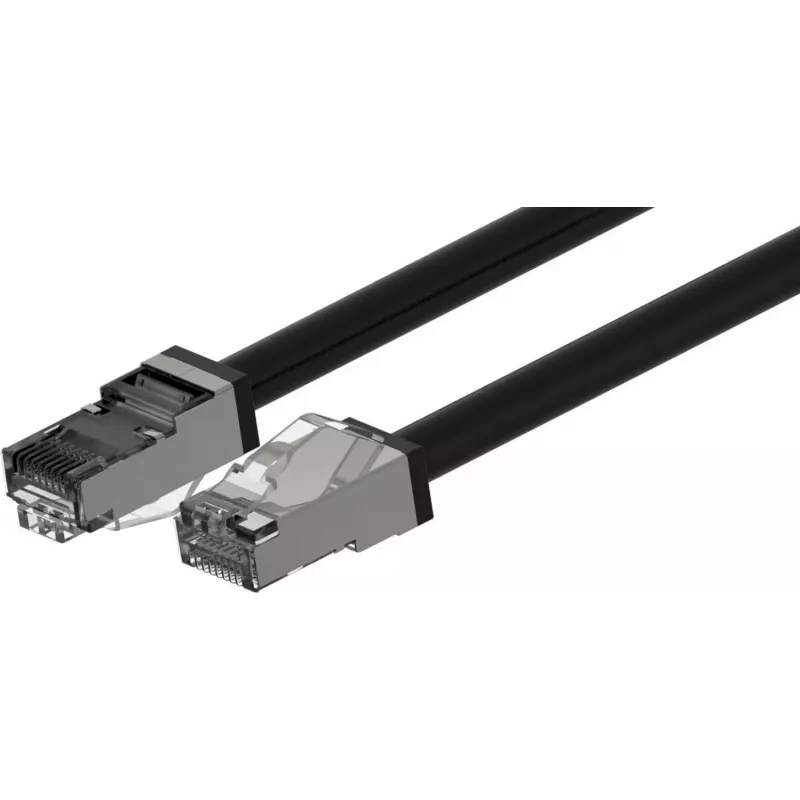

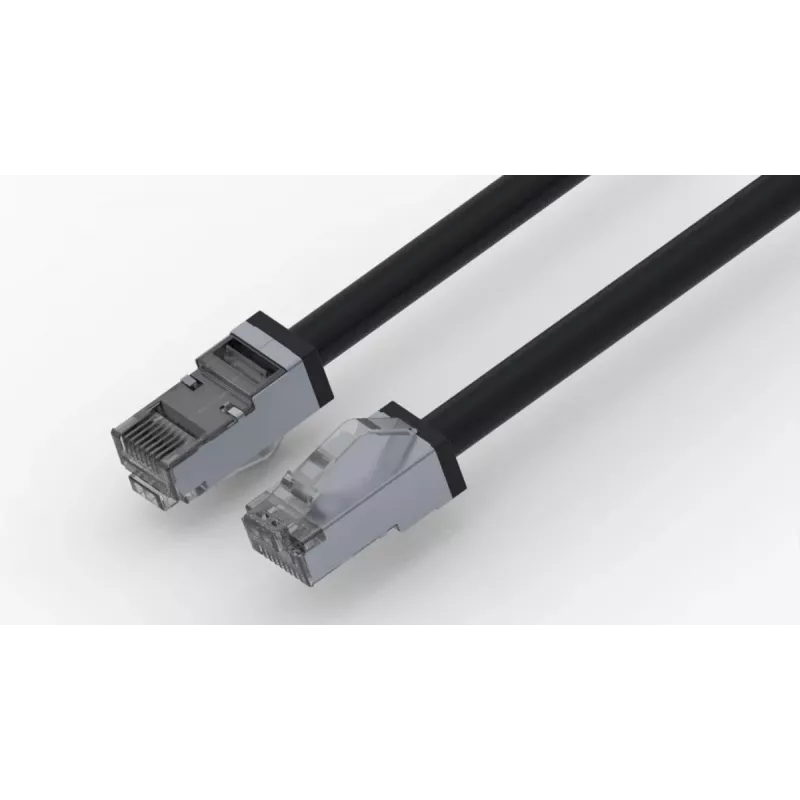

Wirewin cavo patch outdoor CAT6A S/FTP, 5 m, nero, guaina PUR, anti-UV PKW-OUT-SF-K6A-PUR 5.0

Outdoor network installations demand cables that can withstand harsh weather and UV exposure without sacrificing performance. The Wirewin Outdoor CAT6A S/FTP Patch Cable delivers reliable 10 Gigabit Ethernet connectivity in a rugged, weatherproof design, making it ideal for connecting devices in outdoor or industrial environments.

Who is it for

This cable is built for network installers, system integrators, and IT professionals who need a durable, high-speed link for outdoor access points, IP cameras, or industrial equipment. It suits anyone requiring a CAT6A connection that can handle direct sunlight, rain, and temperature extremes.

Main features

• CAT6A performance supports 10GBASE-T up to 500 MHz bandwidth.
• S/FTP shielding (screened and foiled twisted pairs) minimizes crosstalk and EMI.
• Anti-UV PUR jacket resists sunlight, moisture, and abrasion; halogen-free.
• Gold-plated RJ45 connectors (50µm) ensure corrosion resistance and reliable contacts.
• Supports PoE, PoE+, and PoE++ for powering devices over the same cable.
• Stranded bare copper conductors (AWG 26/7) provide flexibility for patching.

Specifications

• Cable length: 5.0 m
• Cable type: Patch Cable
• Cable standard: CAT6A
• Shielding: S/FTP
• Jacket material: PUR
• Colour: Black
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Conductor: Bare copper, AWG 26/7 stranded
• Connector: RJ45 male to RJ45 male, gold-plated (50µm)
• PoE support: PoE, PoE+, PoE++
• Operating temperature: -20°C to +75°C
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801, EN 50173
• Flame retardancy: IEC 60332-1-2

Tips

For outdoor runs, use cable glands or weatherproof housings at connection points to protect the RJ45 plugs from moisture. Avoid sharp bends; maintain a minimum bend radius of four times the cable diameter to preserve signal integrity.
