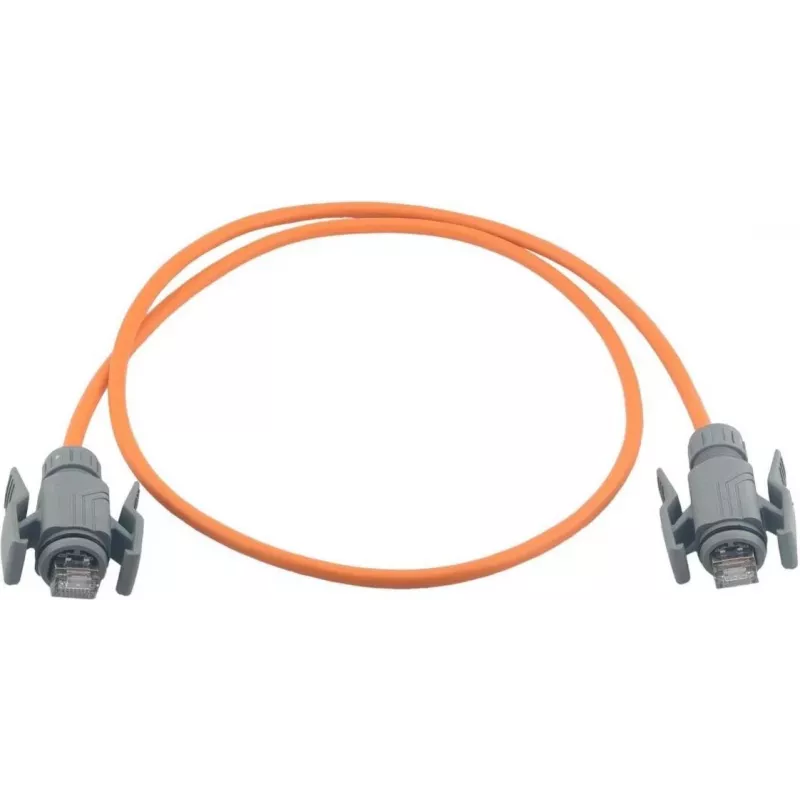

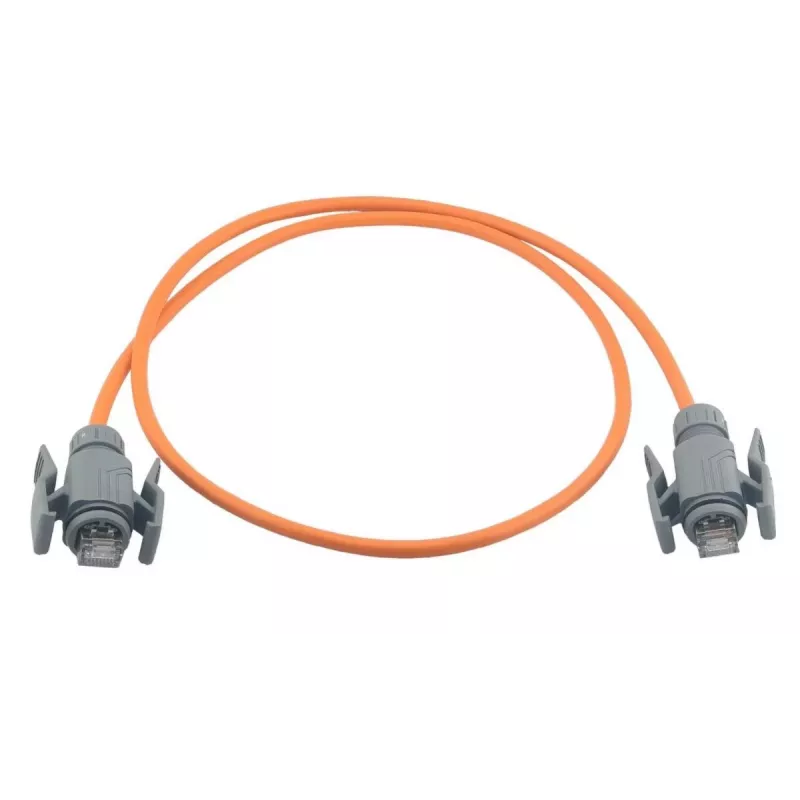

Wirewin Industrial CAT6A S/FTP cavo patch PUR, 2m, arancione, IP67 RJ45 PKW-I2-SF-K6A-PUR 2.0 OR

Engineered for 10 Gigabit Ethernet, this industrial patch cable delivers reliable high-speed connectivity even in harsh environments. The anti-UV PUR jacket resists oil, abrasion, and sunlight, while IP67-rated RJ45 connectors provide complete protection against dust and temporary immersion.

Overview

The Wirewin PKW-I2-SF-K6A-PUR 2.0 OR is a CAT6A S/FTP patch cable with a length of 2 meters. It features 26 AWG stranded copper conductors and supports bandwidth up to 500 MHz, making it suitable for 10GBASE-T networks. The cable is terminated with IP67-rated RJ45 connectors on both ends, ensuring a secure and protected connection in demanding industrial settings.

What stands out

• Anti-UV PUR jacket for outdoor and industrial use
• IP67-rated RJ45 connectors for dust and water protection
• Supports Power over Ethernet (PoE, PoE+, PoE++)
• Halogen-free and oil-resistant

Technical details

• Category: CAT6A (Category 6A)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Jacket material: PUR (Polyurethane)
• Connector type: RJ45 (8P8C) with IP67 protection
• Colour: Orange
• Data transfer rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Conductor gauge: 26 AWG stranded copper
• Operating temperature: -40°C to +80°C
• Standards compliance: TIA/EIA-568-C.2, ISO/IEC 11801
• Wiring scheme: T568B

Our verdict

A rugged, high-performance cable built for industrial environments where reliability is non-negotiable.
