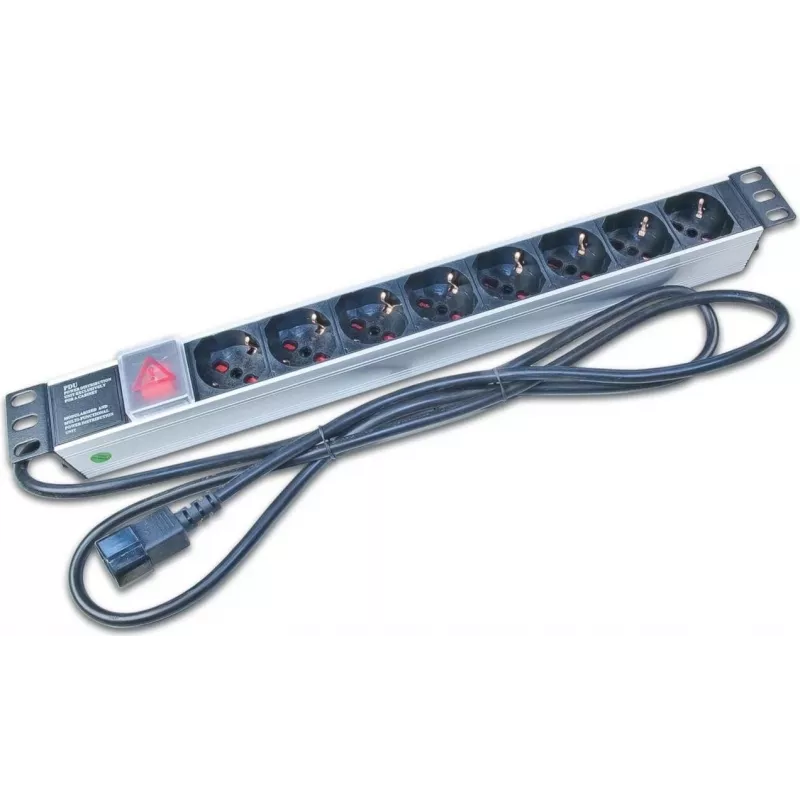

Wirewin NVL8 UPS 19 pollici 1U PDU rackmount con 8 prese Schuko, 16A, nero

The SLIM WIREWIN NVL8 UPS is a 19-inch rackmount power distribution unit that packs eight Schuko outlets into a slim 1U aluminum housing. Unlike basic power strips, it is built for horizontal rack installation with reversible mounting brackets, making it a straightforward way to bring 230V power distribution into server cabinets and network enclosures.

Highlights

• 8 Schuko (Type F) output sockets for connecting equipment with standard European plugs
• Rated for 16A maximum current and up to 3680W total load at 230V AC
• 1U rackmount form factor with reversible brackets for flexible mounting
• 2-meter input cable with Schuko plug (CEE 7/7) for easy connection to a wall outlet
• Aluminum housing in black for durability and a professional look

In daily use

The NVL8 UPS provides a simple, no-frills power distribution solution for rack environments. Its eight outlets allow you to connect multiple devices, and the 2-meter cable gives you some flexibility in positioning. The unit does not include surge protection or overload protection, so it is best used in installations where the upstream circuit already provides adequate protection.

Full specifications

• Form factor: 19-inch rackmount, 1U height
• Output sockets: 8x Schuko (CEE 7/3, Type F)
• Input connector: Schuko plug (CEE 7/7, Type F)
• Input cable length: 2 m
• Nominal voltage: 230V AC
• Maximum current: 16 A
• Maximum power: 3680 W
• Housing material: Aluminum
• Mounting orientation: Horizontal
• Protection features: None
• Colour: Black
• Cable specification: H05VV-F 3G1.5mm²
• Operating temperature: 0°C to 45°C
• Certifications: CE, RoHS
• Mounting brackets: Reversible

Final note

The SLIM WIREWIN NVL8 UPS is a dependable, no-frills power distribution unit for rack installations where basic power distribution is all that is needed.
