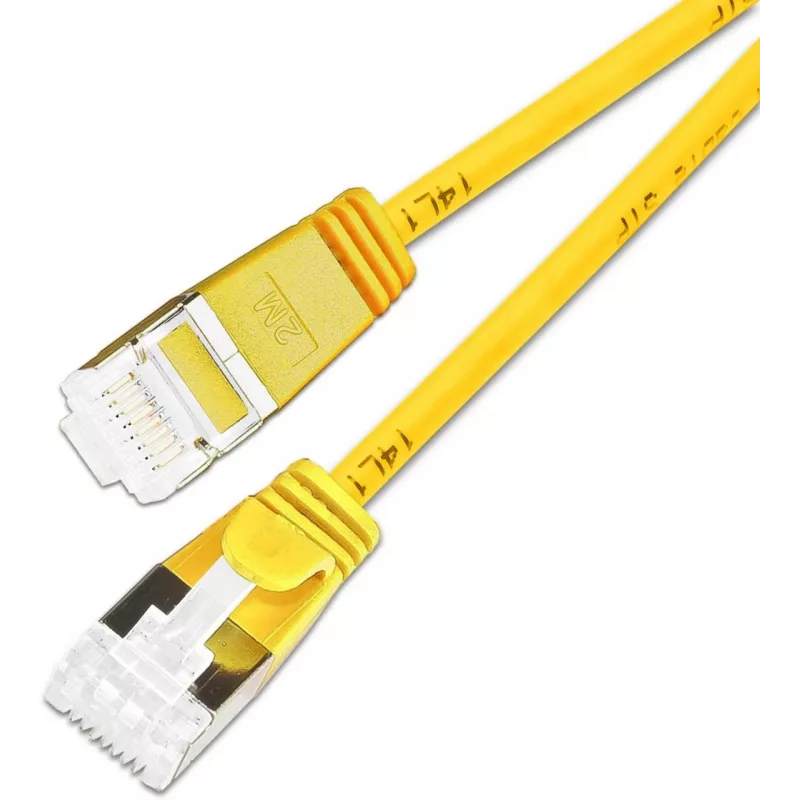

Wirewin SLIM KAT6A 10 Gigabit cavo patch Light, 0,25 m, U/FTP, Ø 3,8 mm, giallo, confezione da 50 (SLIM-LS-K6A 0.25 YE 50)

High-density network installations often suffer from cable bulk and poor airflow. The SLIM WIREWINE SLIM KAT6A Light Patch Cable solves this with a slim 3.8mm diameter, allowing more cables in tight spaces while maintaining 10 Gigabit performance.

Who is it for

Network administrators and data center technicians who need reliable Cat6A connectivity in high-density racks, patch panels, and server rooms. The 50-pack is ideal for large installations or as a cost-effective stocking option.

Main features

• Cat6A performance with 10 Gigabit Ethernet support up to 500 MHz bandwidth
• Slim 3.8mm outer diameter for improved airflow and easier cable management
• U/FTP shielding: each pair individually foil shielded, overall unshielded
• LSZH jacket for low smoke and halogen-free safety
• Gold-plated RJ45 connectors (50µm) for reliable connections
• Stranded copper conductors (AWG 28/7) for flexibility
• Supports PoE applications
• Pack of 50 cables, each 0.25m long

Specifications

• Cable type: Ethernet Patch Cable
• Category: Cat6A (Class EA)
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Length: 0.25 m
• Shielding: U/FTP
• Outer diameter: 3.8 mm
• Colour: Yellow
• Connector type: RJ45 Male (both ends)
• Connector plating: Gold (50µm)
• Conductor material: Copper
• Conductor gauge: AWG 28/7 (stranded)
• Jacket material: LSZH
• Wiring standard: TIA/EIA 568B
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Halogen free: Yes
• Pack quantity: 50

Tips

Use these slim cables in high-density patch panels to reduce clutter and improve airflow. The LSZH jacket makes them suitable for environments where fire safety is critical, such as public buildings or enclosed spaces.
