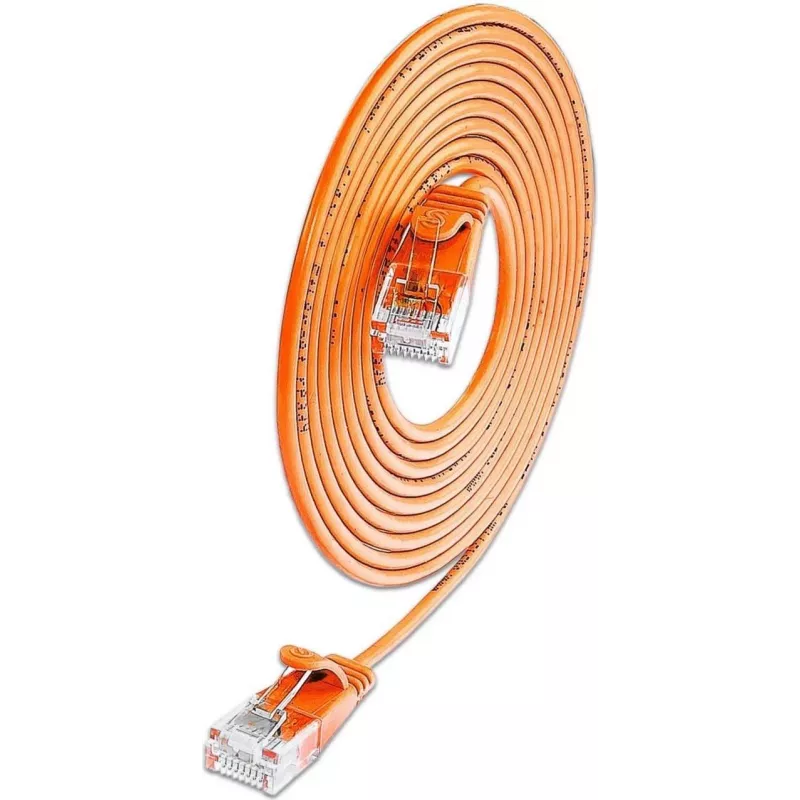

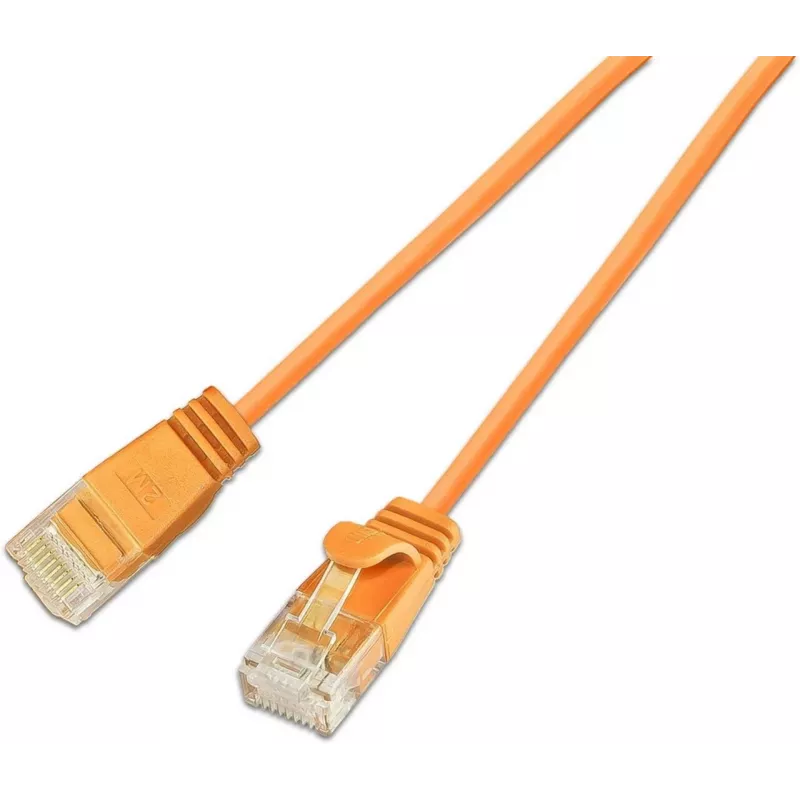

Wirewin SLIM KAT6A 10 Gigabit cavo patch Light rotondo U/UTP Ø3,6mm arancione 0,15m (SLIM-L-UU-K6A 0.15 OR)

For high-density patching where every millimetre counts, this orange Cat6A patch cable pairs a slim 3.6 mm round profile with full 10 Gigabit performance. The unshielded U/UTP construction with stranded bare copper conductors keeps the cable flexible and easy to route, while the LSZH jacket supports safer deployment in enclosed spaces.

Highlights

• Cat6A / Class EA performance up to 500 MHz
• 10GBASE-T support for 10 Gigabit Ethernet
• Slim 3.6 mm round cable with LSZH jacket
• Gold-plated RJ45 connectors (3 µm)
• PoE, PoE+ and 4PPoE ready

In daily use

The 0.15 m length is ideal for short links inside racks, between patch panels and switches, or for tidying cable management without excess slack. Stranded AWG 30/7 conductors provide the flexibility needed for tight bends, while the orange jacket makes identification quick in dense installations.

Full specifications

• Cable type: Patch cable
• Category: Cat6A (Class EA)
• Shielding: U/UTP (unshielded)
• Data transfer rate: up to 10 Gbps
• Bandwidth: up to 500 MHz
• Length: 0.15 m
• Diameter: 3.6 mm
• Conductor material: bare copper
• Conductor gauge: AWG 30/7 (stranded)
• Jacket material: LSZH
• Colour: orange
• Connector type: RJ45 (8P8C)
• Connector plating: gold (3 µm)
• Wiring standard: TIA/EIA 568B
• PoE support: PoE, PoE+, 4PPoE

Final note

A slim, high-performance Cat6A patch cable for short, high-density 10G connections.
