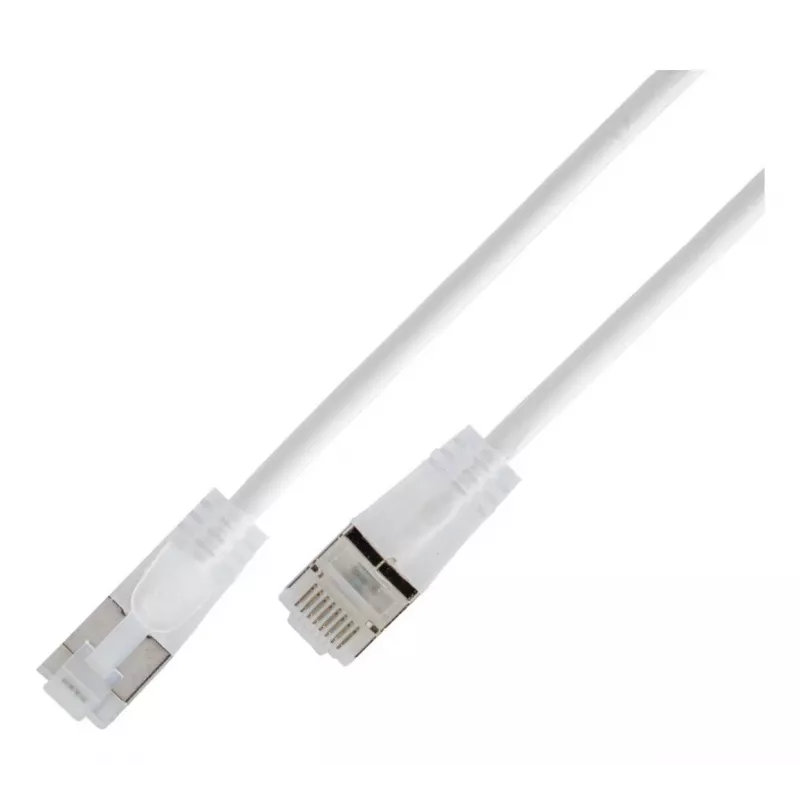

Wirewin SLIM KAT6A cavo patch Light 10 Gigabit tondo, U/UTP, Ø 3,6 mm, bianco (SLIM-L-UU-K6A 0.15 WT)

The SLIM WIREWINE SLIM KAT6A 10 Gigabit Light Patch Cable stands out with its ultra-slim 3.6 mm round profile, reducing clutter in high-density patching areas while maintaining full Cat 6A performance. At just 0.15 m, it is ideal for neat, short connections between adjacent ports.

Highlights

• 10 Gigabit Ethernet over 500 MHz bandwidth
• U/UTP unshielded construction with stranded copper conductors
• LSZH jacket for low smoke and halogen-free safety
• Gold-plated RJ45 connectors for reliable contact
• Supports PoE, PoE+, and 4PPoE

In daily use

This patch cable is built for high-speed networking in offices and data centers. Its slim design improves airflow and eases cable management, while the white LSZH jacket meets fire safety requirements. The 0.15 m length is perfect for direct switch-to-patch-panel links or stacking equipment.

Full specifications

• Cable length: 0.15 m
• Cable standard: Cat 6A
• Cable shielding: U/UTP
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Conductor material: Copper
• Conductor gauge: AWG 30/7
• Jacket material: LSZH
• Connector type: RJ45
• Connector plating: Gold-plated contacts (50µm)
• Wiring standard: TIA/EIA 568B
• PoE support: PoE, PoE+, 4PPoE
• Operating temperature: -20°C to +60°C
• Halogen free: Yes
• Flame retardant: Yes (IEC 60332-1-2)
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Final note

The SLIM WIREWINE SLIM KAT6A combines high-speed 10G performance with a space-saving slim design, making it a practical choice for modern network installations.
