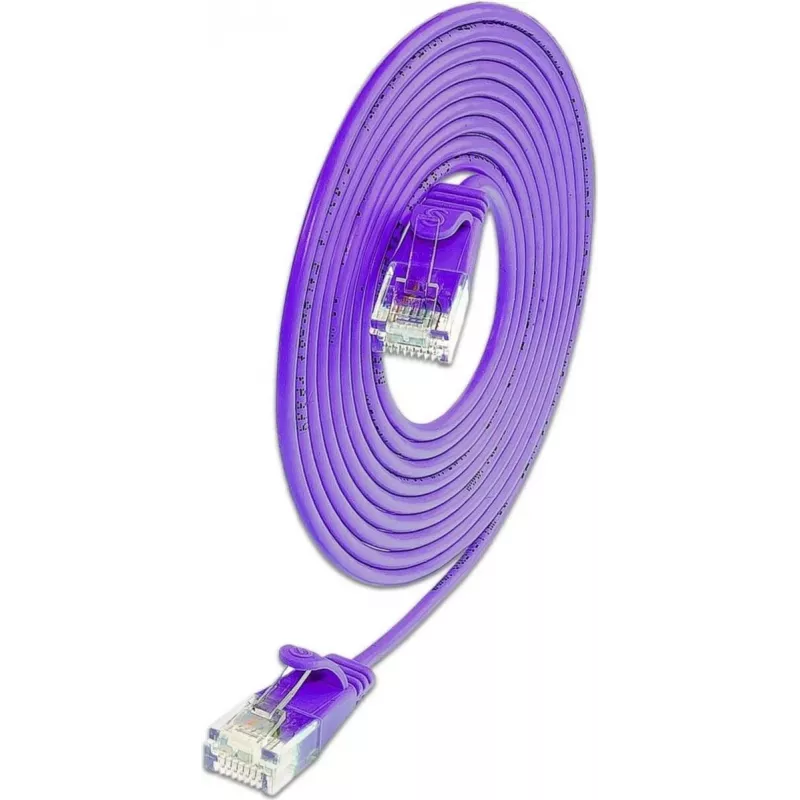

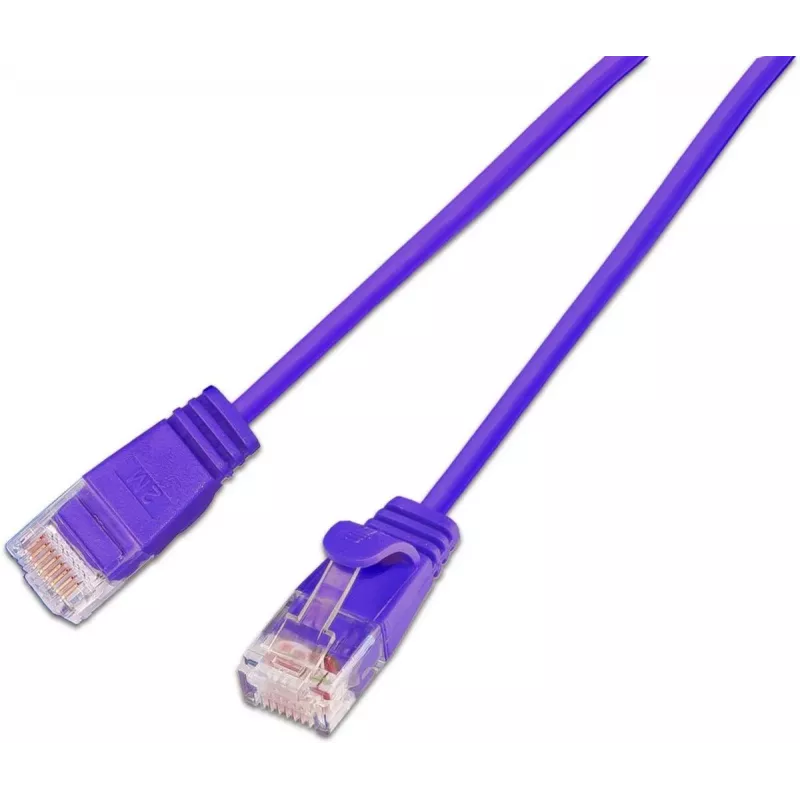

Wirewin SLIM KAT6A cavo patch Light 10 Gigabit tondo, U/UTP, Ø 3,6 mm, viola, 0,5 m SLIM-L-UU-K6A 0.5 VT

The SLIM WIREWINE SLIM KAT6A 10 Gigabit Light Patch Cable stands out with its ultra-slim 3.6 mm round design, making it ideal for high-density patching in data centers and server rooms where space is at a premium. Despite its slim profile, it delivers full 10 Gigabit Ethernet performance with a 500 MHz bandwidth, ensuring reliable high-speed connections for demanding network environments.

Highlights

• Category 6A performance with 10 Gigabit Ethernet support
• Ultra-slim 3.6 mm diameter for space-saving installations
• U/UTP unshielded twisted pair construction
• LSZH jacket for low smoke and halogen-free safety
• Supports PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt)

In daily use

This 0.5-meter patch cable is perfect for short connections between switches, patch panels, and servers in high-density racks. The violet color aids in quick identification and organization. The stranded copper conductors (AWG 30/7) provide flexibility for easy routing, while the LSZH jacket ensures safety in enclosed spaces. The cable is compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards, and meets flame retardancy requirements per IEC 60332-1.

Full specifications

• Cable Type: Ethernet Patch Cable
• Cable Standard: Cat.6A
• Shielding Type: U/UTP (Unshielded)
• Data Transfer Rate: 10 Gbps
• Bandwidth: 500 MHz
• Cable Length: 0.5 m
• Connector Type: RJ45 Male (both ends)
• Conductor Material: Copper
• Conductor Gauge: AWG 30/7
• Jacket Material: LSZH
• Cable Shape: Round
• Outer Diameter: 3.6 mm
• Color: Violet
• Wiring Standard: TIA/EIA 568B
• PoE Support: PoE, PoE+, 4PPoE

Final note

A compact, high-performance solution for modern network infrastructures that demand both speed and space efficiency.
