Wirewin VKW SFTP K7 LSOH3 500DXB cavo di rete Cat.7 S/FTP al metro, 500 m, arancione, LSOH3

For projects demanding top-tier 10 Gigabit performance over long distances, the Wirewin VKW SFTP K7 LSOH3 500DXB stands apart from standard patch cables. This 500-meter bulk cable lets installers pull custom-length runs with no mid-span connectors, while its Cat.7 S/FTP construction delivers headroom that Cat.6a simply cannot match. The orange LSOH3 jacket signals low-smoke, halogen-free safety for public buildings, and the solid copper conductors ensure reliable PoE and high-frequency transmission. Whether wiring a data center, office floor, or industrial facility, this cable provides the raw backbone for a future-proof network.

Highlights

• Category 7 performance with 600 MHz bandwidth and 10GBASE-T support

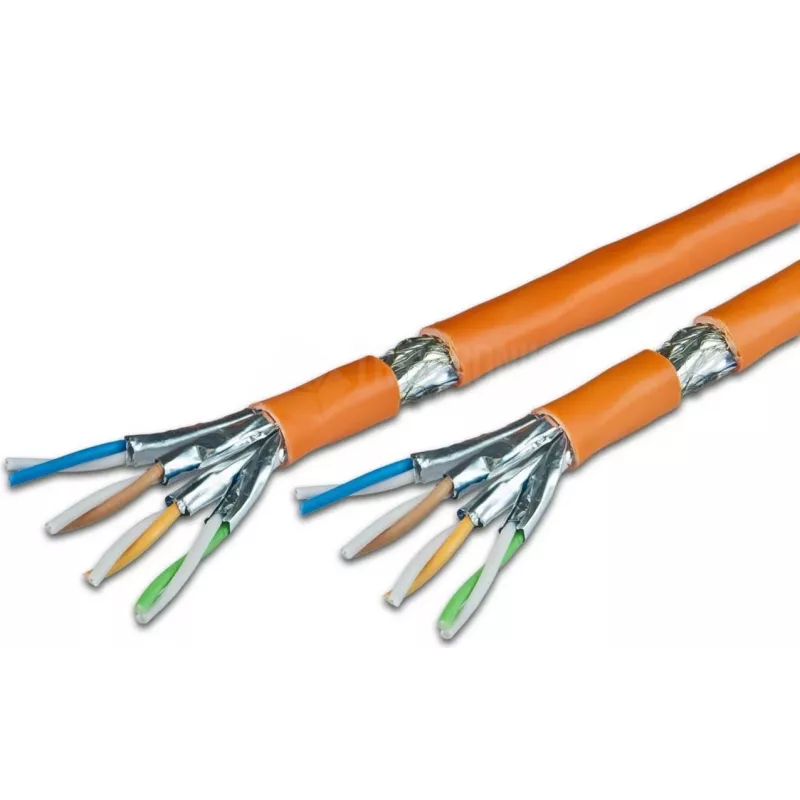

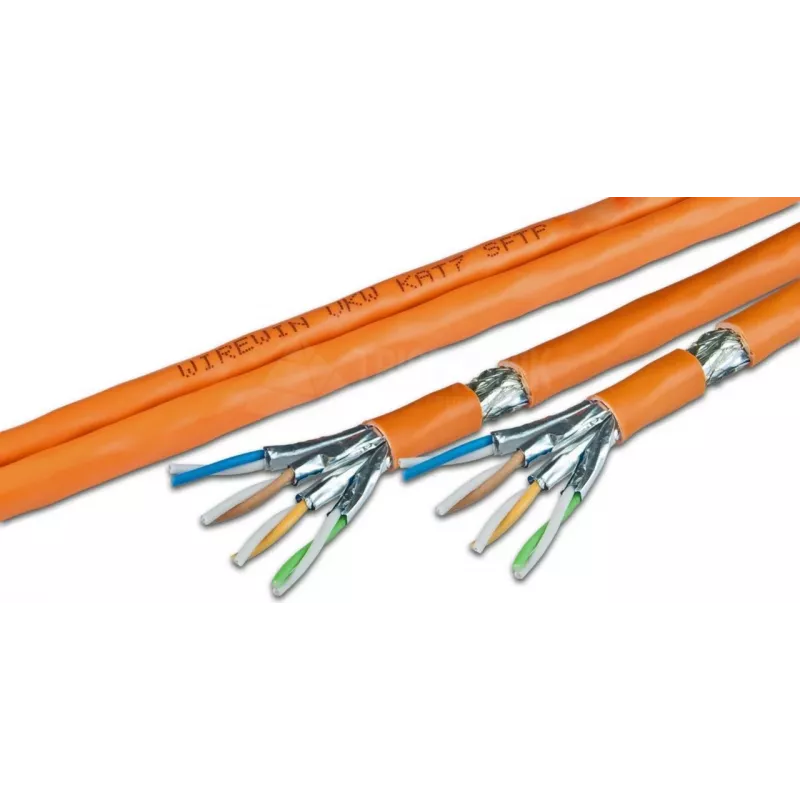

• S/FTP shielding: individual foil-wrapped pairs plus overall tinned copper braid

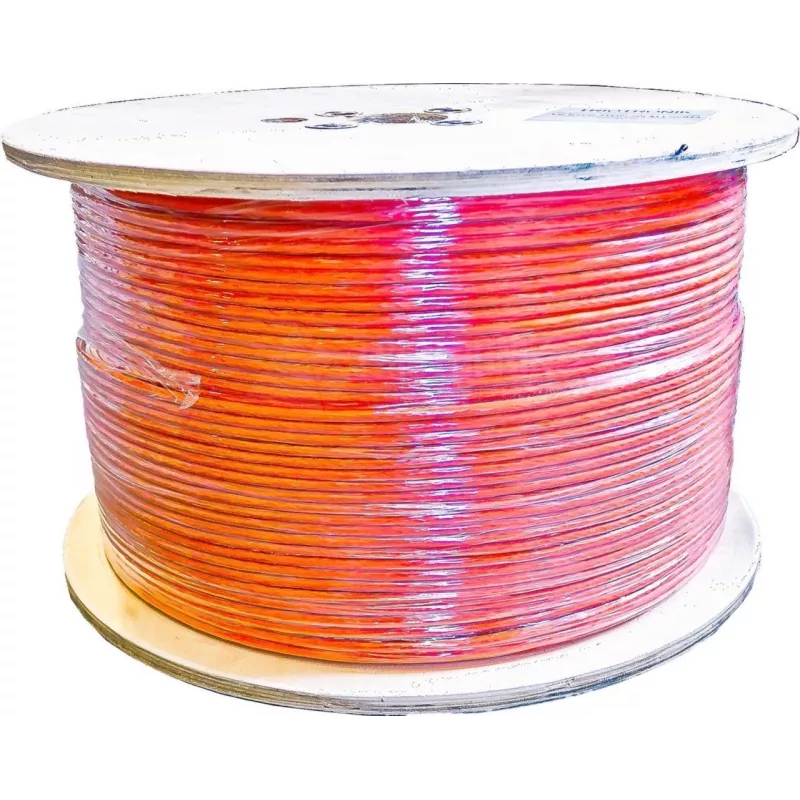

• 500 m continuous length on a drum – ideal for custom installations
• LSOH3 jacket: low smoke, zero halogen, flame retardant to IEC 60332-1-2
• Solid bare copper conductors, AWG 23, 100 Ohm impedance
• Compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2

In daily use

Installers will appreciate the cable's robust construction and easy pulling. The orange jacket provides high visibility in ceilings and conduits, while the LSOH3 material ensures safety in occupied spaces. Because it is a bulk cable, you can terminate it with the connectors of your choice, maintaining consistent performance across every link. The S/FTP shielding effectively rejects alien crosstalk, making it suitable for high-density environments where many cables run in parallel. With solid copper conductors, it handles PoE loads without the heat buildup seen in copper-clad alternatives.

Full specifications

• Brand: SLIM WIREWIN
• Model: VKW SFTP K7 LSOH3 500DXB
• MPN: VKW SFTP K7 LSOH3 500DXB
• EAN: 9120072488184
• Cable type: Network bulk cable
• Category: Cat.7
• Shielding: S/FTP (Screened Foiled Twisted Pair)
• Length: 500 m
• Colour: Orange
• Jacket material: LSOH3 (Low Smoke Zero Halogen)
• Conductor material: Solid bare copper
• Conductor gauge: AWG 23
• Frequency bandwidth: Up to 600 MHz
• Data transfer rate: Up to 10 Gbps (10GBASE-T)
• Number of pairs: 4
• Pair shielding: Aluminium foil (PIMF)
• Overall shielding: Tinned copper braid
• Impedance: 100 Ohm
• Standard compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Flame retardancy: IEC 60332-1-2
• Halogen-free: Yes
• Outer diameter (approx.): 7.5 mm
• Packaging: Cable drum

Final note

Choose the Wirewin VKW SFTP K7 LSOH3 500DXB when you need a certified, high-performance backbone that meets strict safety codes. Its combination of Cat.7 bandwidth, robust shielding, and LSOH3 jacket makes it a reliable choice for professional installations where downtime is not an option.
