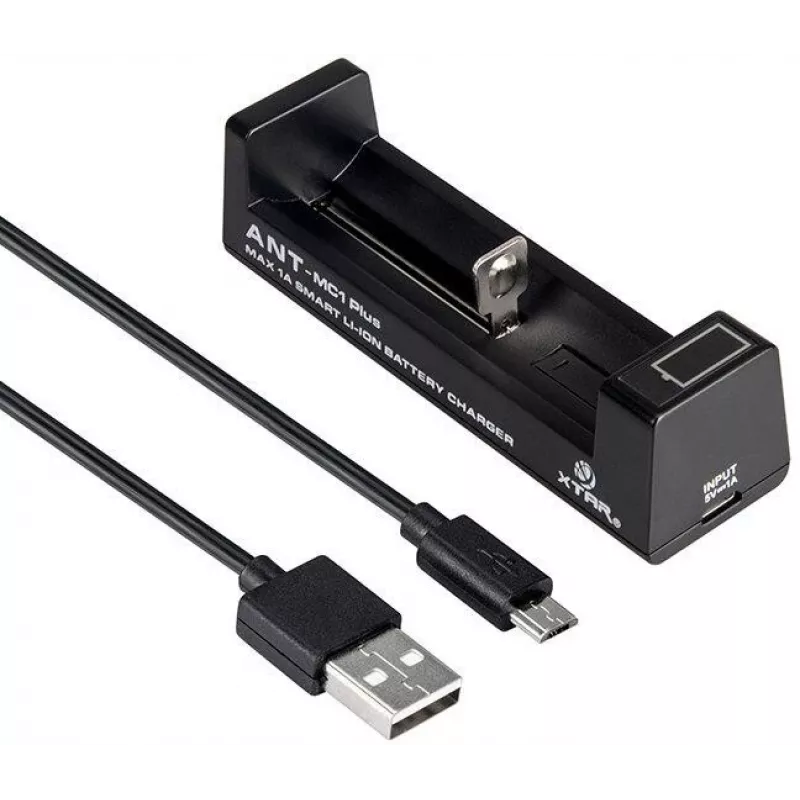

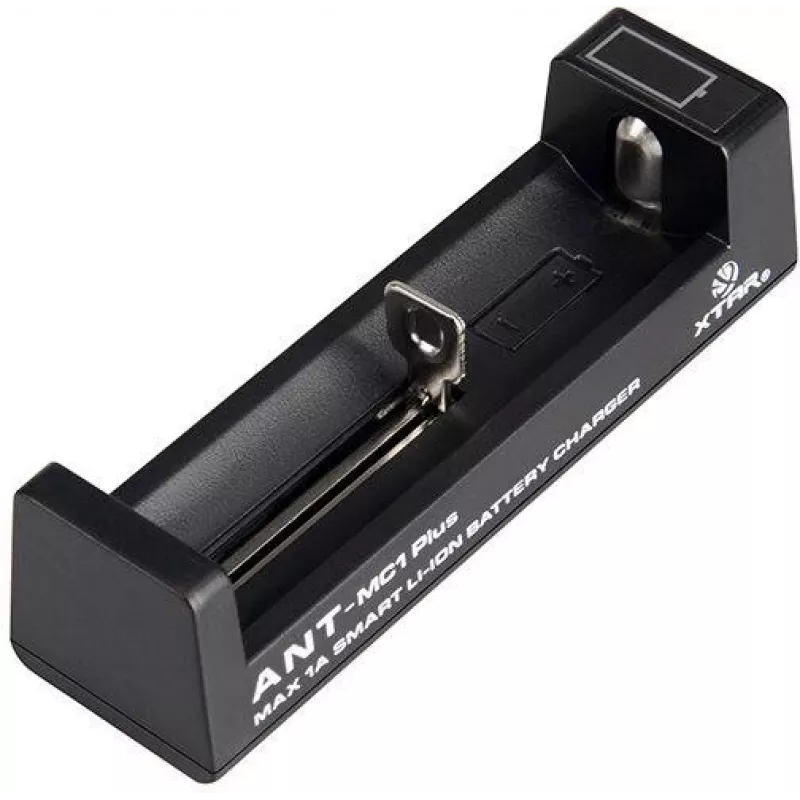

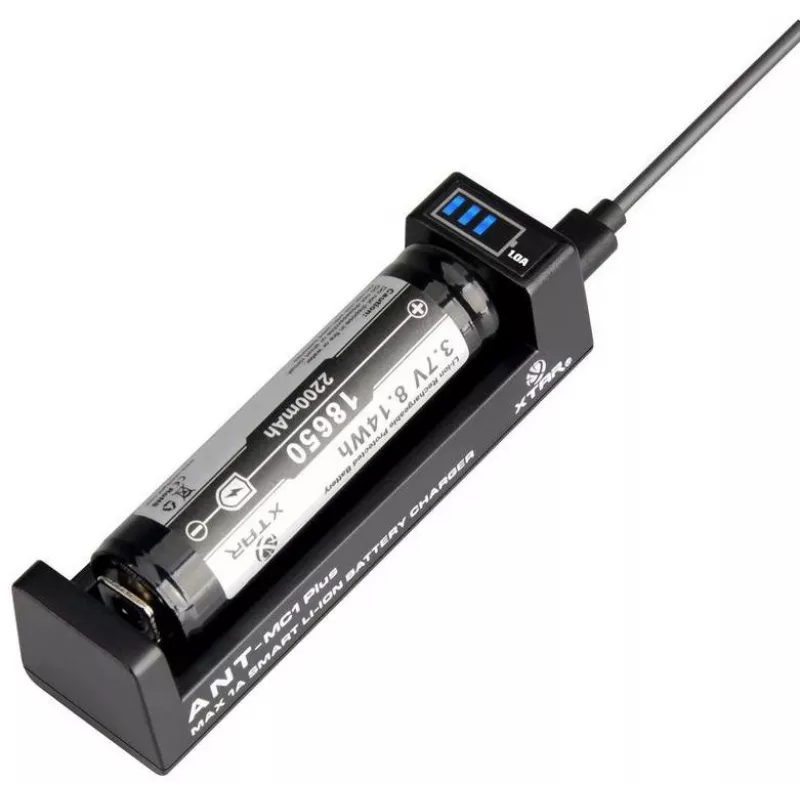

XTAR ANT MC1+ caricabatterie Micro USB per batterie Li-Ion 18650

The XTAR ANT MC1+ is a compact and intelligent single-slot charger designed for cylindrical Li-ion batteries. It features a Micro USB input for convenient charging from any USB power source, such as a wall adapter, power bank, or computer. With automatic current selection (0.5A/1A) based on battery resistance, it ensures safe and efficient charging for a wide range of battery sizes.

Advantages

This charger offers versatile compatibility with various Li-ion battery sizes including 10440, 14500, 14650, 16340, 17335, 17500, 17670, 18350, 18490, 18500, 18650, 18700, 20700, 21700, 22650, 25500, and 26650. It features multiple protection mechanisms such as reverse polarity protection, short circuit protection, overcharge protection, over-discharge protection, and temperature monitoring. The 0V activation function can revive over-discharged batteries, and the LED indicator clearly shows charging status (red for charging, green for fully charged/standby).

Suitable for

• Charging 3.6V/3.7V Li-ion batteries (IMR, INR, ICR) for flashlights, vapes, power tools, and other portable devices
• Users who need a reliable and portable charger with USB power source
• Battery enthusiasts and professionals requiring a single-slot charger with automatic current selection

Key specifications

• Charging Slot Count: 1
• Compatible Battery Chemistry: 3.6V/3.7V Li-ion (IMR, INR, ICR)
• Compatible Battery Sizes: 10440, 14500, 14650, 16340, 17335, 17500, 17670, 18350, 18490, 18500, 18650, 18700, 20700, 21700, 22650, 25500, 26650
• Input Power: DC 5V 1A (Micro USB)
• Max Charging Current: 1A
• Charging Cut-off Voltage: 4.2V ±0.05V
• Charging Algorithm: TC/CC/CV (Trickle Current, Constant Current, Constant Voltage)
• 0V Activation Function: Yes
• Reverse Polarity Protection: Yes
• Short Circuit Protection: Yes
• Overcharge Protection: Yes
• Over-discharge Protection: Yes
• Temperature Monitoring: Yes
• Charging Indicator: LED (Red: Charging, Green: Fully Charged/Standby)
• Automatic Current Selection: Yes (0.5A/1A based on battery resistance)
• Power Source: USB (e.g., wall adapter, power bank, computer)
• Material: Durable ABS
• Operating Temperature: 0-40°C
• Certifications: CE, RoHS

Recommendations

For optimal performance, use a quality USB power adapter with at least 5V 1A output. Always ensure correct battery polarity before charging. This charger is not compatible with Ni-MH or Ni-Cd batteries.
