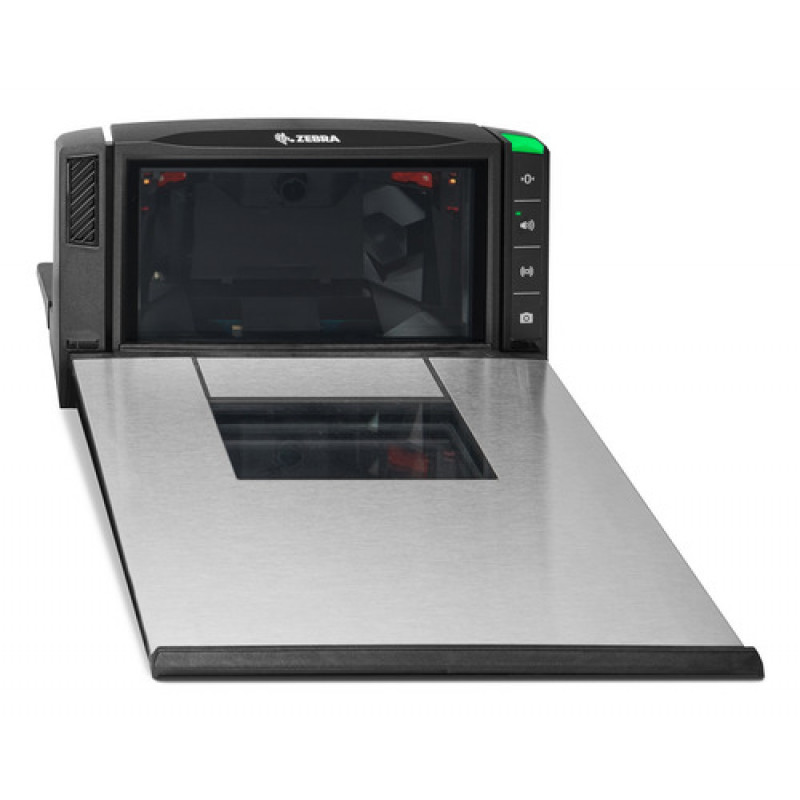

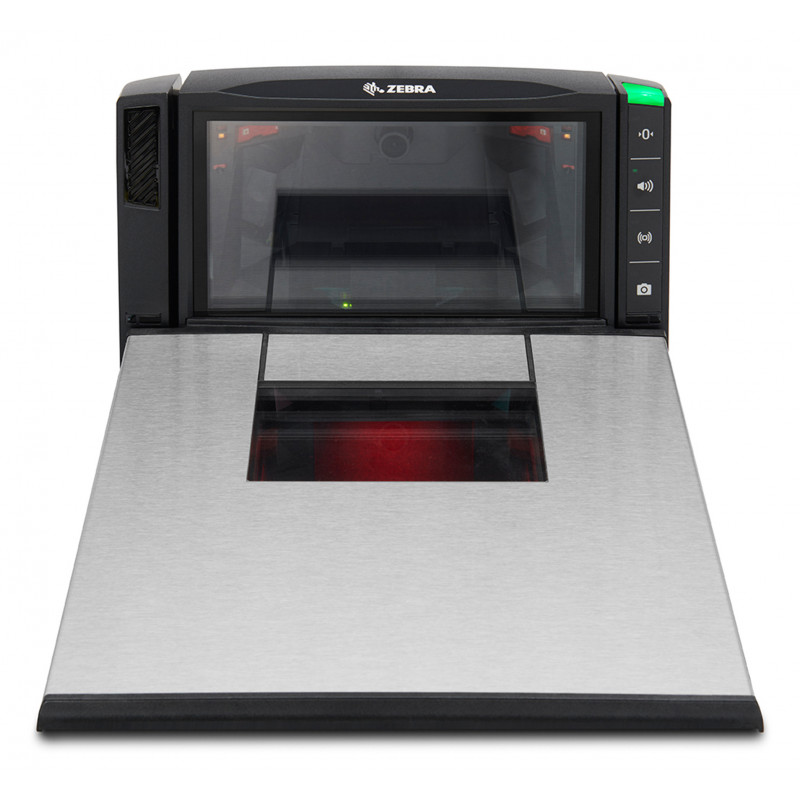

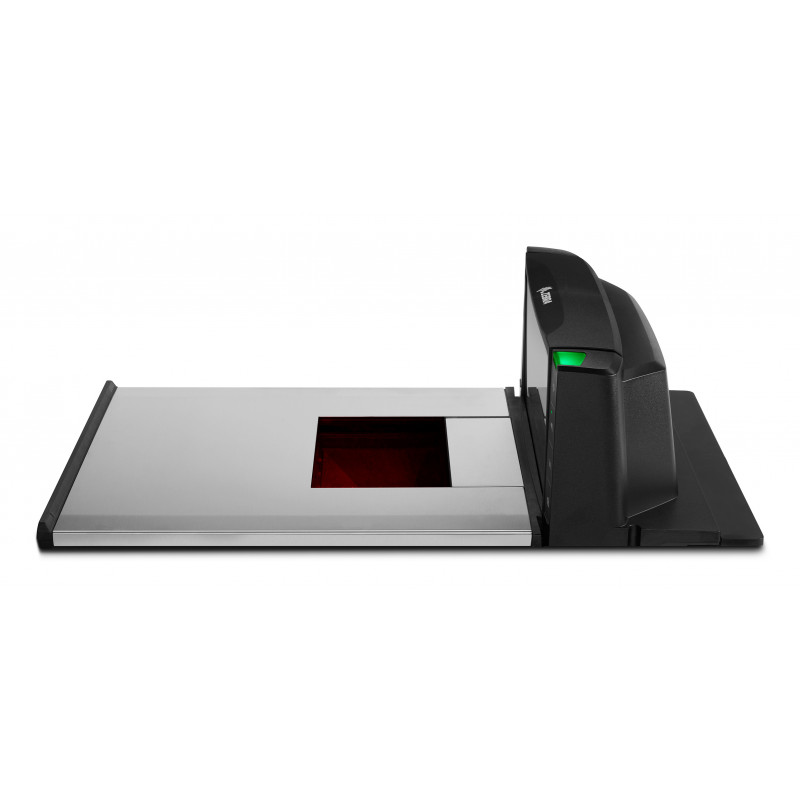

Zebra MP72 Series MP7200 - corto - scanner per codici a barre

High-volume retail checkout lanes demand speed, accuracy, and reliability. The Zebra MP7200 short in-counter bioptic imager scanner solves these challenges by delivering omnidirectional scanning of 1D and 2D barcodes, reducing customer wait times and improving cashier productivity. Its compact design integrates seamlessly into existing counters, while optional scale and EAS support streamline the point-of-sale experience.

Who is it for

This scanner is ideal for grocery stores, supermarkets, hypermarkets, and high-traffic retail environments where fast, hands-free scanning is essential. It suits businesses upgrading from older laser scanners or those seeking a durable, future-ready solution for mobile coupons and digital loyalty cards.

Main features

• Omnidirectional imaging technology captures barcodes from any angle, eliminating the need to orient items.
• Reads both 1D and 2D barcodes, including printed and mobile coupons, loyalty cards, and digital wallets.
• High-resolution 1280 x 960 pixel imager with 6.1 megapixels per second scan speed for rapid decoding.
• Multiple host interfaces: USB, RS-232, and IBM 468X/9X for flexible integration with POS systems.
• Optional integrated scale and EAS support (Checkpoint and Sensormatic) to reduce counter clutter and enhance security.
• IP52-rated protection against dust and dripping water, ensuring reliable operation in busy environments.

Specifications

• Scanner type: In-counter bioptic imager
• Scan technology: Omnidirectional imaging
• Barcode symbologies: 1D and 2D
• Imager resolution: 1280 x 960 pixels
• Scan speed: 6.1 megapixels per second
• Host interfaces: USB, RS-232, IBM 468X/9X
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Storage temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: 5% to 95% non-condensing
• IP rating: IP52
• Length variant: Short

Tips

For optimal performance, position the scanner flush with the counter surface and ensure the scan window is kept clean. When integrating a scale, calibrate it according to local regulations. Use the EAS deactivation feature to streamline checkout and reduce shrinkage. Regularly update firmware to support the latest barcode symbologies and mobile payment standards.
