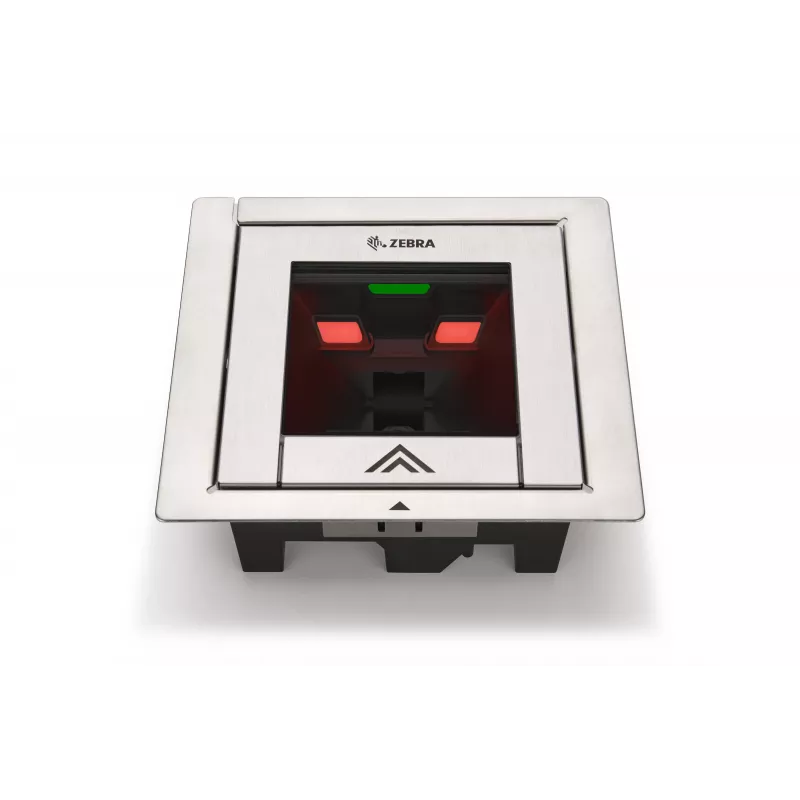

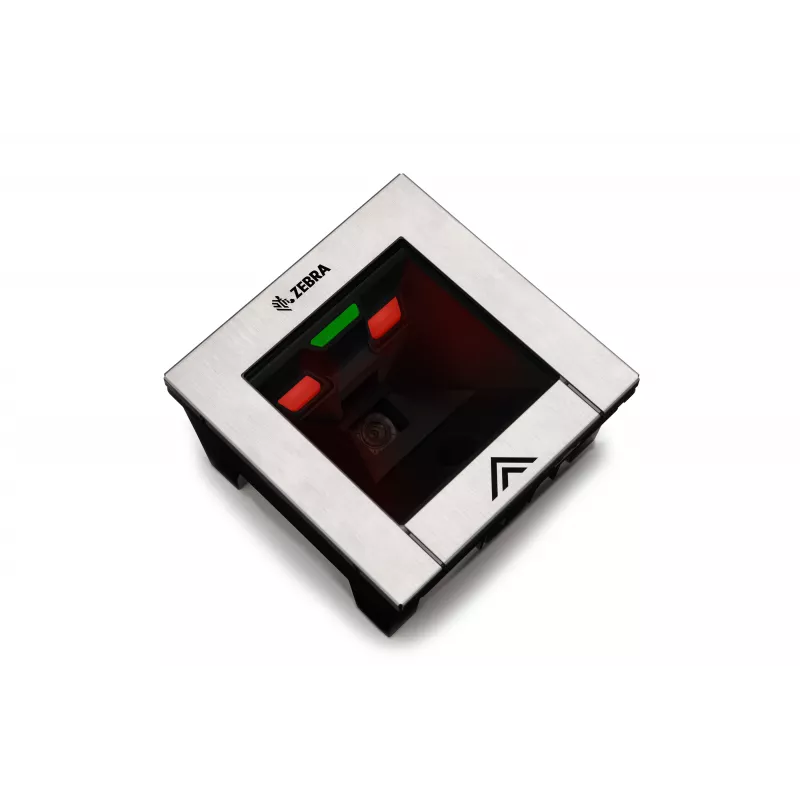

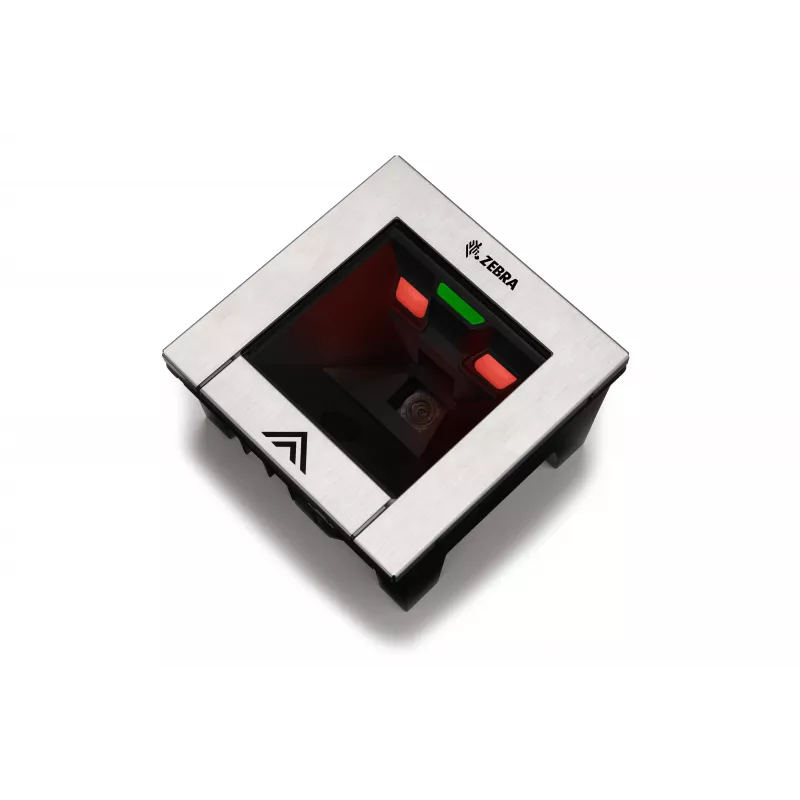

Zebra SP7201-H kit USB: SP7201-SH00004SCWW, CBA-U21-S07ZBR, BRKT-BM0072-00

At a busy pharmacy counter, every second counts. The Zebra SP7201-H presentation scanner reads barcodes instantly from any angle, letting cashiers scan items without slowing down. This complete kit includes the scanner, a USB cable, and a mounting bracket for flexible countertop or in-counter installation. With omnidirectional scanning and support for 1D, 2D, and mobile barcodes, it handles everything from product labels to digital coupons. The IP52-rated housing shrugs off dust and spills, while the 1.2 m drop resistance ensures durability in high-traffic retail environments. Powered directly by USB, setup is as simple as plugging it in.

Key specifications

• Scanner type: Multi-plane presentation imager
• Scan technology: Area imager (2D)
• Decode capabilities: 1D, 2D, PDF417, QR Code, Data Matrix, Aztec, MaxiCode, MicroPDF417
• Connectivity: USB (host powered)
• Host interfaces: USB HID Keyboard, IBM SurePOS, Serial Emulation
• Scan pattern: Omnidirectional
• Light source: Aiming: circular 617nm amber LED; Illumination: 660nm red LEDs
• Minimum print contrast: 15% minimum reflective difference
• Drop specification: 1.2 m (4 ft.) to concrete
• Sealing: IP52
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Storage temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: 5% to 95% non-condensing
• ESD protection: ±15 kV air discharge, ±8 kV direct discharge
• Field of view: Horizontal 48°, Vertical 37°
• Included components: SP7201-SH00004SCWW scanner, CBA-U21-S07ZBR USB cable, BRKT-BM0072-00 bracket
• Colour: Black
• Mounting options: Countertop, in-counter (with included bracket)

Why choose it

The SP7201-H delivers fast, accurate scanning that keeps checkout lines moving. Its omnidirectional scan pattern means no need to orient barcodes precisely, reducing cashier fatigue and errors. The rugged design withstands daily knocks and spills, while USB connectivity eliminates the need for a separate power supply. The included bracket allows for versatile mounting, whether on a counter or recessed into the surface for a clean look.

Ideal use cases

• Retail point-of-sale checkout counters
• Pharmacy prescription and OTC scanning
• Hospitality front desk and gift shop
• Self-service kiosks and loyalty program check-ins
• Mobile coupon and digital wallet scanning

Good to know

The scanner is powered directly through the USB port, simplifying installation and reducing cable clutter. The IP52 rating means it is protected against limited dust ingress and dripping water, making it suitable for environments where spills are possible. The included bracket allows for both countertop placement and flush in-counter mounting, giving you flexibility in checkout design. With support for a wide range of barcode symbologies, it is ready for current and future scanning needs.
