ZVK Easylan LSB1A225 Cassetto di giunzione in fibra ottica Basic 1U 6x LC-Duplex OS2

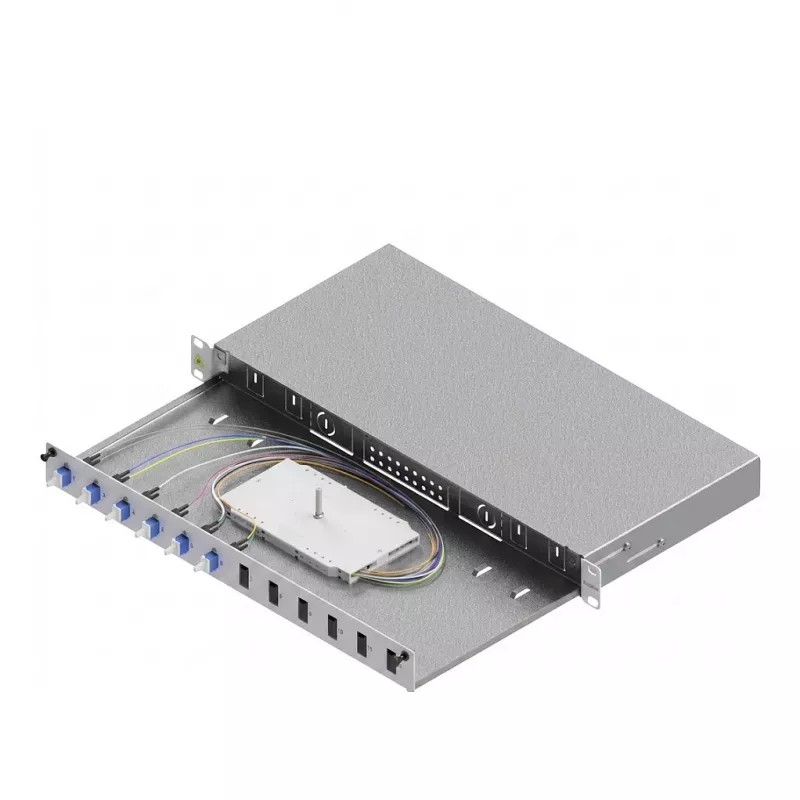

The ZVK Easylan LSB1A225 Basic Fiber Optic Splice Enclosure is a high-quality, wall-mountable splice box designed for indoor fiber optic networks. It provides reliable protection and organization for up to 12 fibers, making it ideal for FTTH, LAN, and data center applications. The enclosure comes pre-assembled with 6 LC-Duplex adapters (OS2 single-mode) and features a robust steel sheet housing in light grey (RAL 7035). With integrated strain relief and cable management, installation is quick and efficient.

Advantages

This splice enclosure offers a compact 1U form factor, easy wall mounting, and pre-installed adapters to save installation time. The ceramic ferrule adapters ensure low insertion loss and high durability. Cable entry via two M20 glands provides flexibility for various cable types.

Suitable for

• Fiber optic termination and splicing in LAN and FTTH networks
• Data center patching and distribution
• Indoor telecom rooms and server racks

Key specifications

• Product Type: Fiber Optic Splice Enclosure
• Fiber Optic Standard: OS2 (Single-mode)
• Connector Type: LC-Duplex
• Number of LC-Duplex Adapters: 6
• Total Fiber Capacity: 12 Fibers
• Enclosure Material: Steel Sheet
• Enclosure Color: Light Grey (RAL 7035)
• Mounting Type: Wall-mount
• Splice Tray Capacity: Up to 12 Splices (crimp or shrink)
• Cable Entry Points: 2x M20 Cable Glands
• Application Environment: Indoor
• Protection Class: IP20
• Adapter Sleeve Material: Ceramic
• Pre-assembled: Yes (with adapters)
• Cable Management: Integrated Strain Relief

Recommendations

For optimal performance, use with OS2 single-mode patch cables and ensure proper cable strain relief. This enclosure is compatible with standard 19-inch racks when used with mounting brackets (not included).
