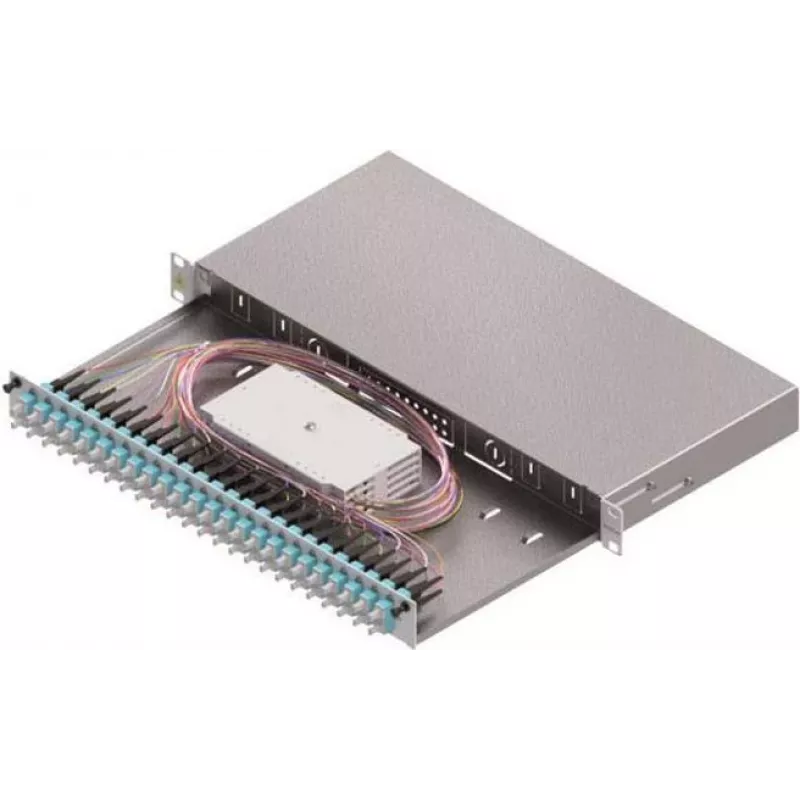

ZVK LSB1C223 Cassetto di Giunzione in Fibra Ottica Basic 1HE 24x SC-Duplex OM3 Estraibile

The ZVK LSB1C223 Fiber Optic Splice Enclosure Basic is a high-quality, 1U rack-mountable housing designed for efficient fiber optic splicing, patching, and distribution. With 24 SC-Duplex ports and OM3 multimode fiber support, this enclosure is ideal for data centers, LAN, and telecommunications applications. Its extractable drawer design provides easy access for installation and maintenance.

Advantages

Space-saving 1U form factor fits standard 19-inch racks. The slide-out drawer allows convenient access to splice trays and connectors without disturbing adjacent cables. Robust metal construction ensures durability and reliable performance in demanding environments.

Suitable for

• Data centers requiring high-density fiber termination
• Local area networks (LAN) with OM3 multimode fiber
• Telecommunications infrastructure for splicing and patching
• Fiber optic distribution points in structured cabling systems

Key specifications

• Product Type: Fiber Optic Splice Enclosure
• Series: Basic
• Connector Type: SC-Duplex
• Number of SC-Duplex Ports: 24
• Maximum Fiber Count: 48 (2 fibers per duplex connector)
• Fiber Mode: Multimode (MM)
• Fiber Grade: OM3
• Design Feature: Extractable / Slide-out Drawer
• Housing Material: Metal (steel)
• Application: Fiber Optic Splicing, Patching, Distribution
• Compatibility: Standard Fiber Optic Systems

Recommendations

For optimal performance, use with OM3 patch cables and SC-Duplex adapters. Ensure proper fiber management and bend radius protection during installation.
