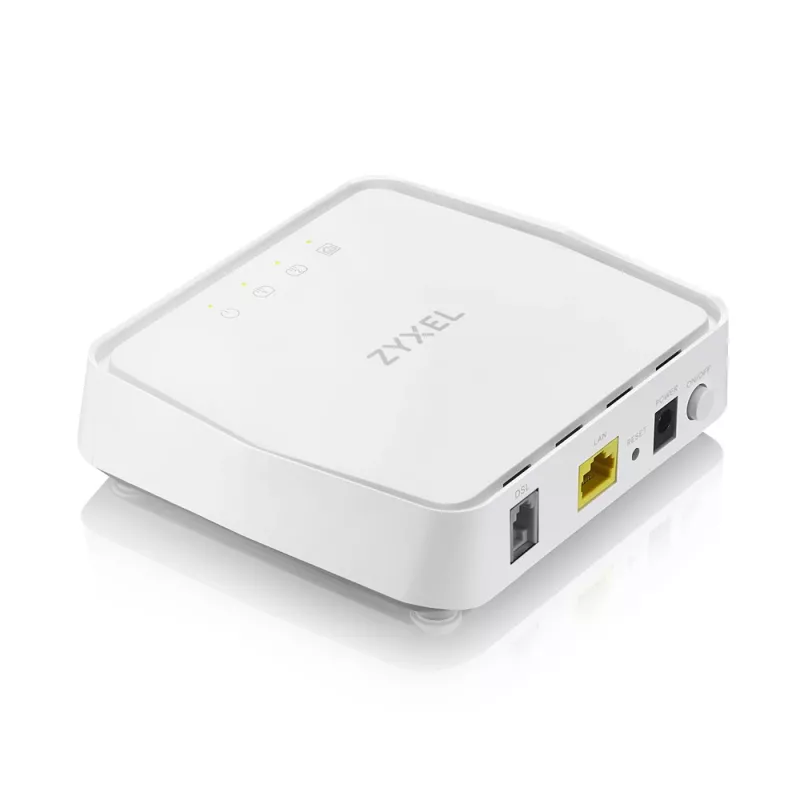

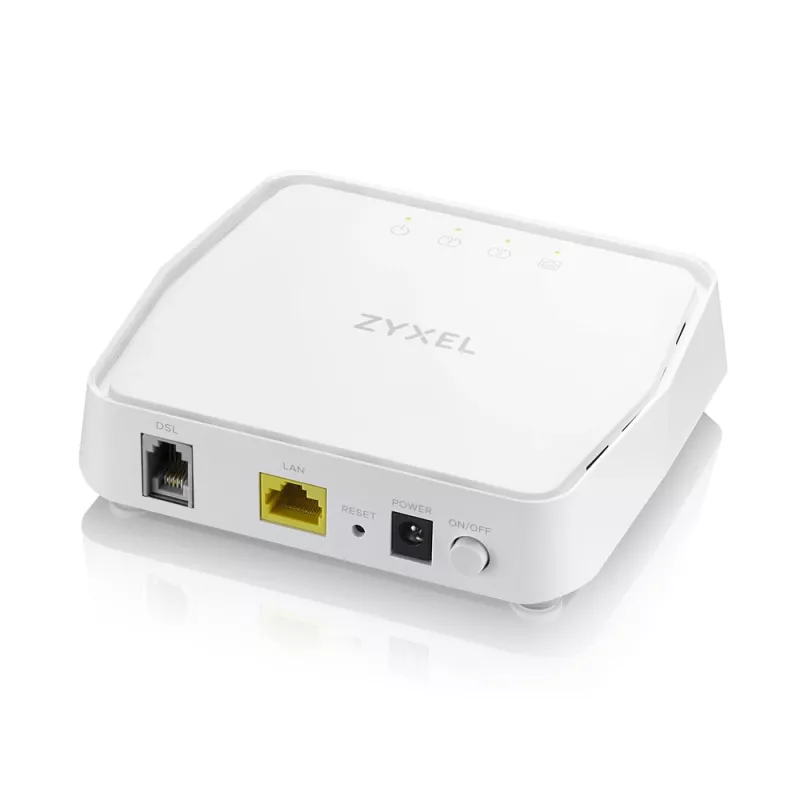

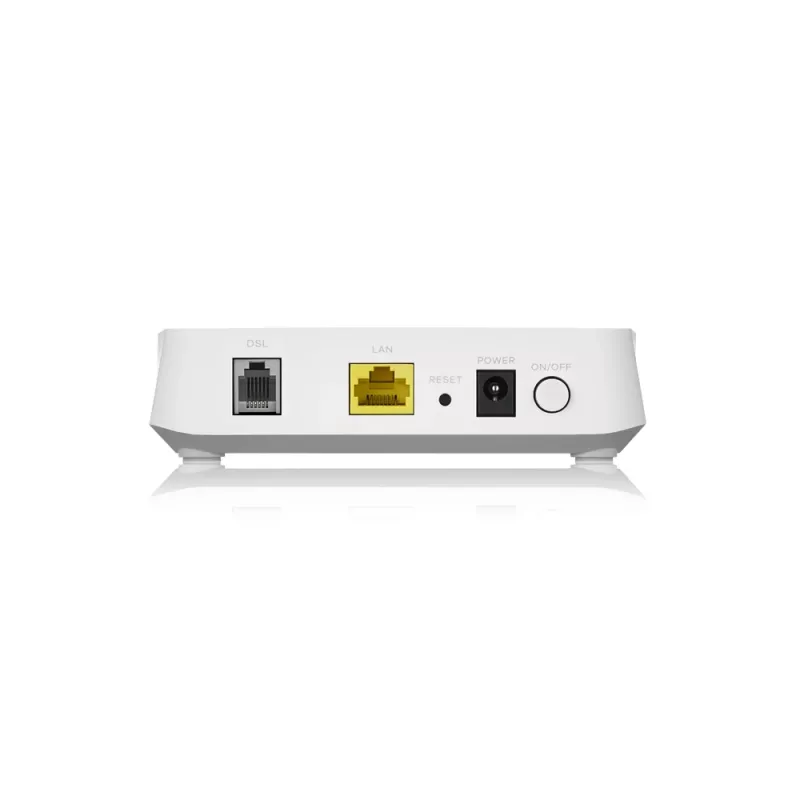

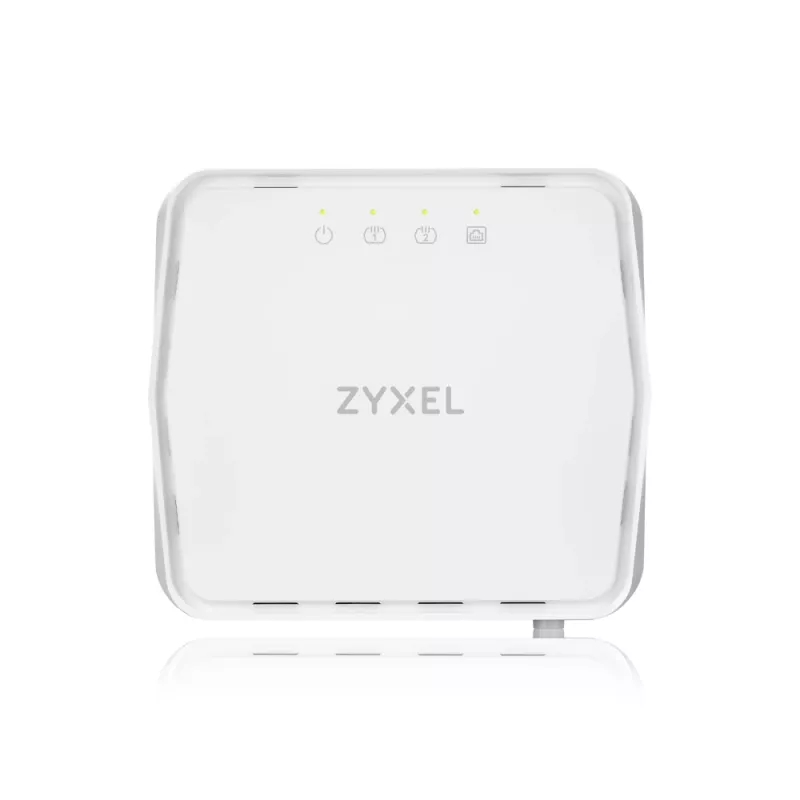

Zyxel VMG4005-B50A router cablato Gigabit Ethernet bianco

The Zyxel VMG4005-B Series is a VDSL2 bonding and single-line bridge supporting VDSL2 17a bonding (up to 200 Mbps) and VDSL2 35b single-line (up to 300 Mbps). It is designed for broadband services to extend coverage and improve performance for applications such as interactive gaming, video streaming and real-time audio while providing service providers with monitoring and management capabilities.

Advantages

The VMG4005-B Series delivers high premium-class line speeds with support for VDSL2 bonding and vectoring to reduce crosstalk and improve range and throughput. It provides comprehensive routing features including full IPv4, IPv6/IPv4 dual stack and IPv6 RD, QoS for traffic prioritization and an SPI firewall for security. TR-069 remote management enables service providers to configure and diagnose devices centrally, simplifying deployment and lowering operating costs.

Key specifications

• VDSL2 bonding: profile 17a (bonded, up to 200 Mbps)
• VDSL2 single-line: profile 35b (single-line, up to 300 Mbps)
• Vectoring support to reduce crosstalk and improve performance
• Routing: IPv4, IPv6/IPv4 Dual Stack, IPv6 Rapid Deployment (RD)
• QoS: traffic classification and prioritization
• Security: stateful packet inspection (SPI) firewall
• Remote management: TR-069 standard support

How to use

Install the VMG4005-B on the operator’s VDSL line according to the provider’s wiring and provisioning instructions. For bonded VDSL2 services, ensure both line pairs and the provider-side equipment support 17a bonding and vectoring. Configure IP and service parameters via the provider’s management platform or locally through the device interface. Enable QoS rules and firewall policies as required to prioritize multimedia traffic and protect end users. Use TR-069 for ongoing remote monitoring, configuration and diagnostics.

Recommendations

For best performance, verify that the subscriber loops and central office equipment support the required bonding and vectoring profiles. Coordinate with the ISP for correct provisioning and enable TR-069 management to simplify maintenance and reduce on-site interventions.
