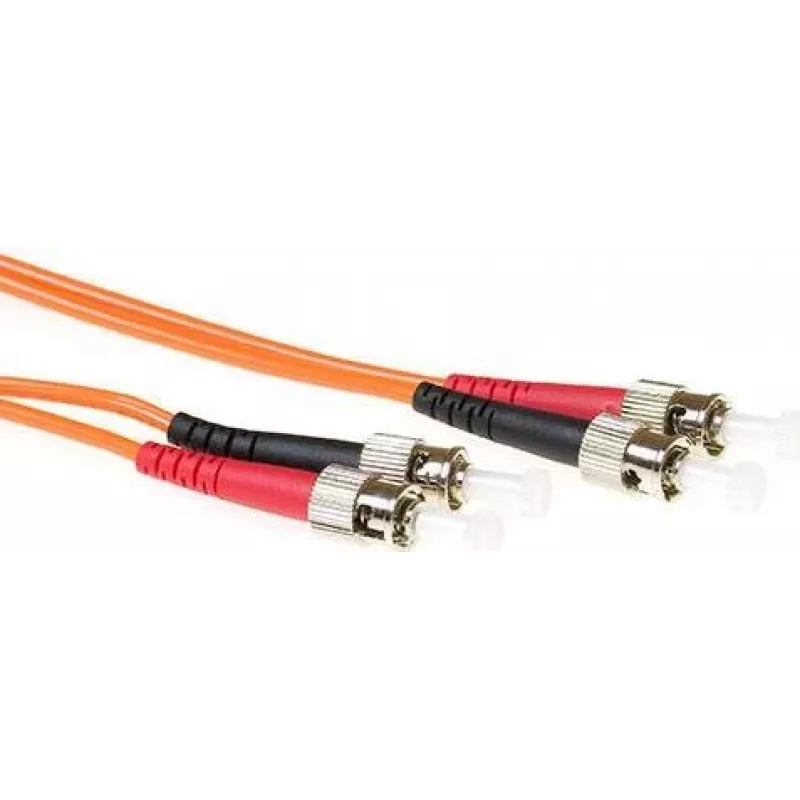

ACT 0,5m LSZH multimodale 62,5/125 OM1 cavo patch in fibra ottica duplex ST/ST (RL1000)

With a 0.5-meter length and OM1 multimode core, this patch cable delivers reliable short-distance fiber connectivity. The duplex ST connectors ensure a secure, twist-lock connection for your network.

Overview

The ACT RL1000 is a fiber optic patch cable designed for multimode networks. It features 62.5/125 µm OM1 fiber with ST connectors on both ends, in a duplex configuration. The LSZH jacket provides low smoke and halogen-free protection, making it suitable for indoor use where safety is a concern.

What stands out

• Duplex ST connectors for reliable connections
• LSZH jacket for low smoke and halogen-free safety
• OM1 multimode fiber supports legacy network speeds

Technical details

• Length: 0.5 m
• Fiber type: Multimode OM1, 62.5/125 µm
• Connectors: ST to ST, duplex
• Jacket material: LSZH
• Jacket colour: Orange
• Insertion loss: < 0.3 dB
• Return loss: > 20 dB
• Attenuation: 3.5 dB/km @ 850 nm, 1.5 dB/km @ 1300 nm
• Bandwidth: 200 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Operating temperature: -20°C to 70°C

Our verdict

A compact and safe solution for short fiber connections, ideal for legacy OM1 networks.
