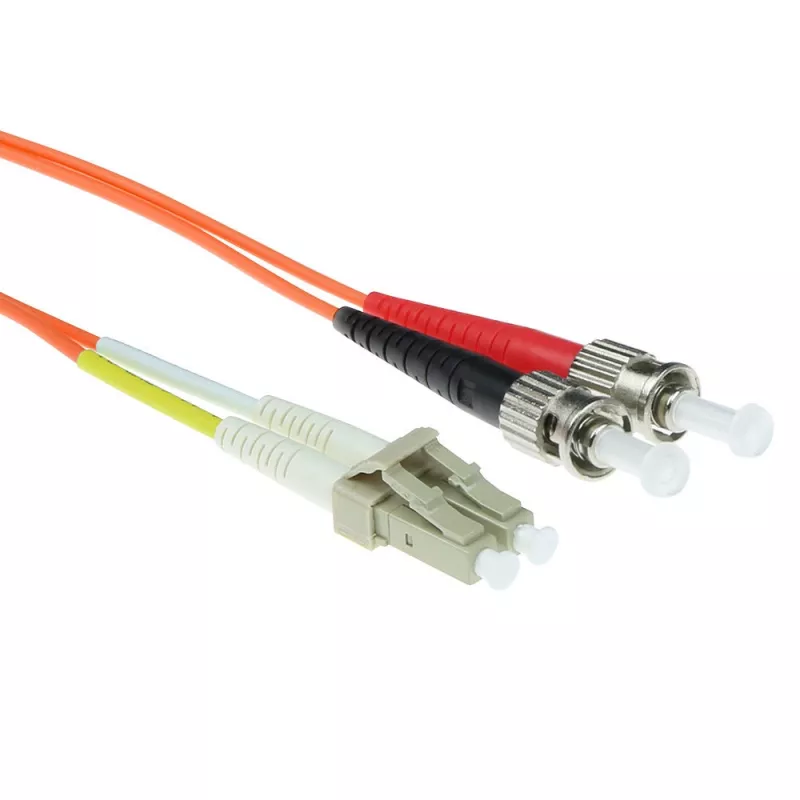

ACT 20 metri LSZH multimode 62.5/125 OM1 cavo patch in fibra ottica duplex con connettori LC e ST

The ACT 20 meter LSZH Multimode 62.5/125 OM1 fiber patch cable duplex with LC and ST connectors is a 20 m indoor fiber optic jumper designed for short-distance multimode networks. It uses 62.5/125 OM1 multimode fiber in duplex configuration and combines LC and ST connectors to link equipment with differing port types. The LSZH outer jacket reduces smoke and halogen release in case of fire, making the cable suitable for indoor installations where safety is a concern.

Advantages

This ACT fiber patch cable provides reliable multimode data transmission with low insertion loss and stable performance across short-reach links. The duplex 62.5/125 OM1 fiber supports legacy multimode equipment; the combination of LC and ST connectors offers compatibility with a wide range of switches, transceivers and patch panels. The LSZH jacket improves fire safety for installations in offices, data rooms and public buildings.

Suitable for

• Indoor multimode network connections
• Linking equipment with LC and ST ports
• Patch panels, switches and transceiver connections
• Short-distance data and telecom applications

Key specifications

• Length: 20 meter
• Cable type: Multimode 62.5/125 OM1 duplex
• Connectors: LC–ST (duplex)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Brand: ACT
• MPN: RL7020
• EAN: 8716065224276

How to use

Inspect connectors and ports for dust or damage before installation. Align and insert the LC connector into LC ports and the ST connector into ST ports until secure; observe correct duplex orientation for transmit/receive pairs. Route the cable avoiding sharp bends and mechanical strain; secure with appropriate cable management accessories. For best performance, keep connectors covered when not connected and clean endfaces with appropriate fiber cleaning tools as needed.

Recommendations

For indoor deployments, maintain bend radius greater than the manufacturer’s minimum and avoid running the cable near strong electromagnetic sources. Use the LSZH variant in enclosed public or commercial spaces where reduced smoke and halogen emissions are required by local regulations.
