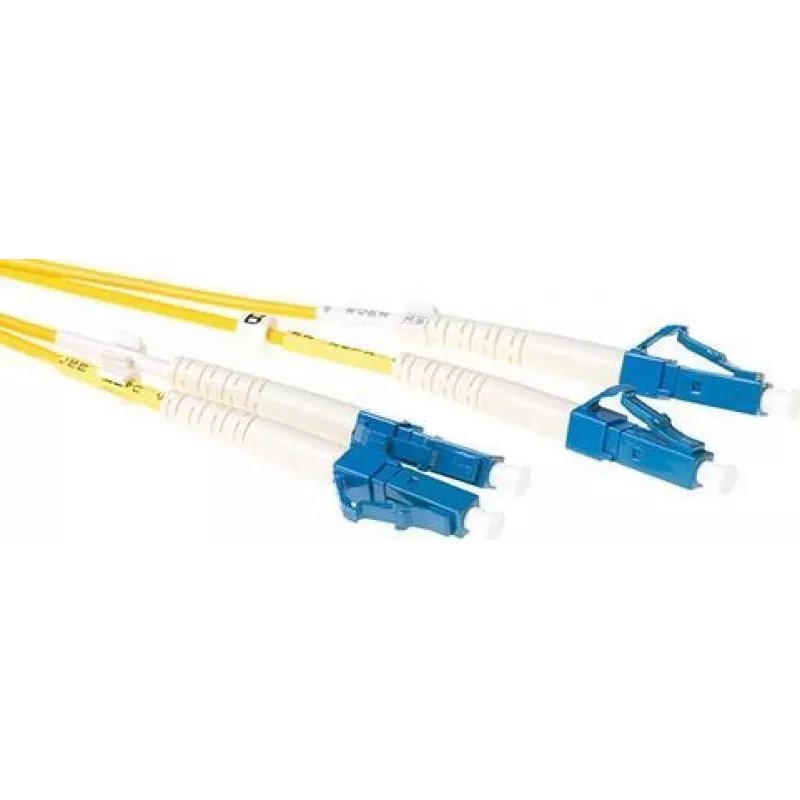

ACT 4m LSZH cavo patch in fibra ottica monomodale OS2 duplex LC-LC 9/125 RL9904

Experience minimal signal loss with this ACT 4-meter singlemode OS2 fiber patch cable, featuring duplex LC connectors and a low-smoke zero-halogen jacket for safety in dense environments.

Overview

This ACT fiber patch cable is built for high-performance singlemode networking. It uses 9/125 µm OS2 fiber, ideal for long-distance, high-bandwidth connections. The duplex configuration with LC connectors ensures reliable, polarity-correct links. The yellow LSZH jacket is low-smoke and halogen-free, reducing toxic emissions in case of fire and meeting strict safety regulations for indoor installations.

What stands out

• Singlemode OS2 fiber supports high-speed data transmission over long distances with low attenuation.
• Duplex LC connectors provide a secure, compact connection for bidirectional communication.
• LSZH jacket emits low smoke and zero halogens, enhancing safety in enclosed spaces.
• 4-meter length offers flexibility for patch panel to switch connections in data centers or telecom rooms.

Technical details

• Cable length: 4 m
• Fiber type: Singlemode OS2, 9/125 µm
• Configuration: Duplex
• Connectors: LC to LC
• Jacket material: LSZH
• Jacket colour: Yellow
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB (UPC)
• Attenuation: ≤ 0.35 dB/km @ 1310 nm, ≤ 0.25 dB/km @ 1550 nm
• Operating temperature: -20°C to 70°C
• Minimum bend radius: 10 x cable diameter (static), 20 x cable diameter (dynamic)
• Cable diameter: 2.0 mm

Our verdict

A reliable singlemode patch cable for professionals needing low-loss, safety-compliant connectivity in data centers and enterprise networks.
