Modulo Keystone DeLOCK 86347

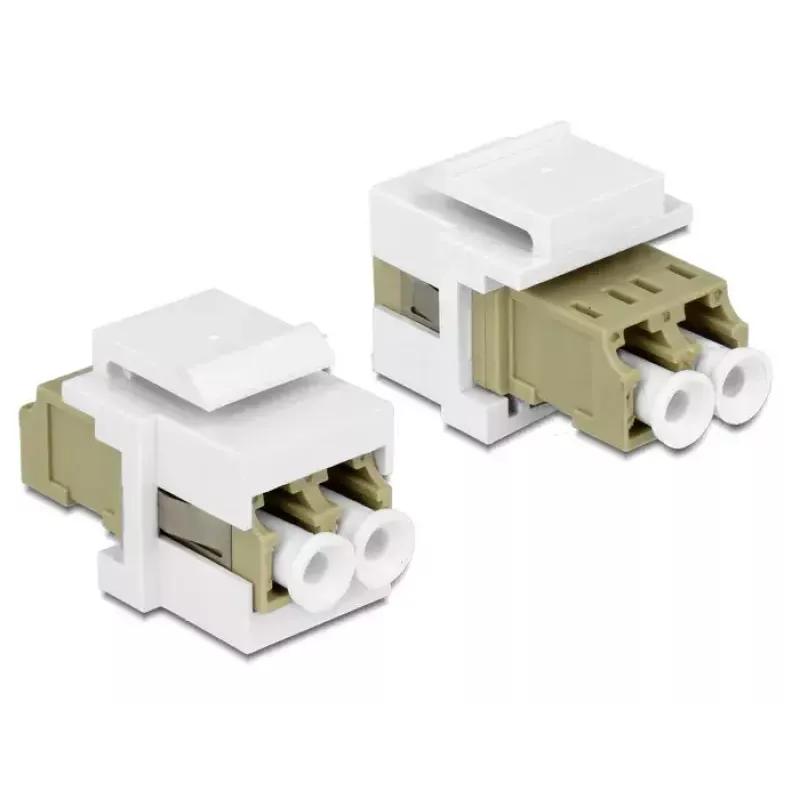

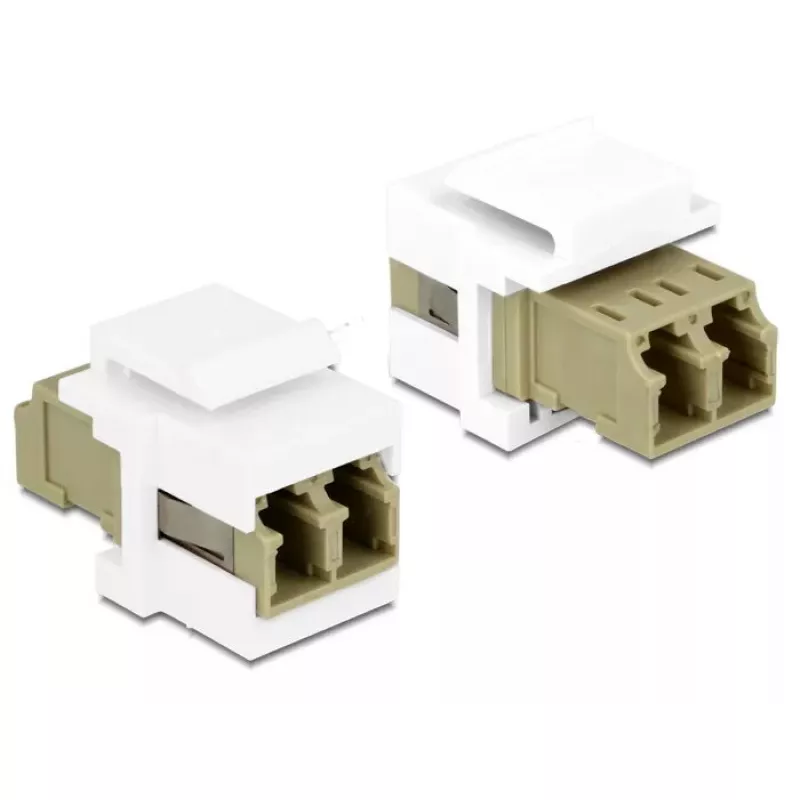

The DeLOCK 86347 keystone module provides a compact, snap-in solution for extending optical fiber connections. It features LC Duplex connectors in a brown and white design and conforms to standard keystone dimensions for installation in keystone patch panels, faceplates or surface-mount boxes. With a width of 29.2 mm, depth of 17.8 mm and height of 22.1 mm, the module is designed for straightforward integration into network infrastructure.

Advantages

This keystone module offers reliable LC Duplex fiber connections in a compact form factor that fits standard keystone cutouts. The standardised dimensions enable easy snap-in mounting without additional adapters, and the dual-colour housing helps identify the connector type and orientation. Its compact size supports dense installations while maintaining optical connectivity for network applications.

Suitable for

• Keystone patch panels in data cabinets and racks
• Faceplates for wall outlet connections
• Surface-mount boxes in offices or server rooms
• Fiber extension and interconnection in LAN environments

Key specifications

• Brand: DELOCK
• Model / MPN: 86347
• Connector type: LC Duplex
• Measured dimensions: 29.2 mm (W) × 17.8 mm (D) × 22.1 mm (H)
• Colour: brown and white housing
• Category: Accessories for networks

How to use

Insert the keystone module into a compatible keystone opening on a patch panel, faceplate or surface-mount box until it snaps into place. Connect LC Duplex fiber cables to the module’s ports, ensuring correct polarity and secure mating of the connector ferrules. For removal, gently depress the module’s retaining clips and pull it out of the cutout.

Recommendations

Ensure clean fiber connectors and follow standard fiber-handling practices to maintain signal quality. Verify compatibility of panel and faceplate keystone cutouts with the module dimensions before installation.
