Adattatore mSATA interno DeLOCK 89479

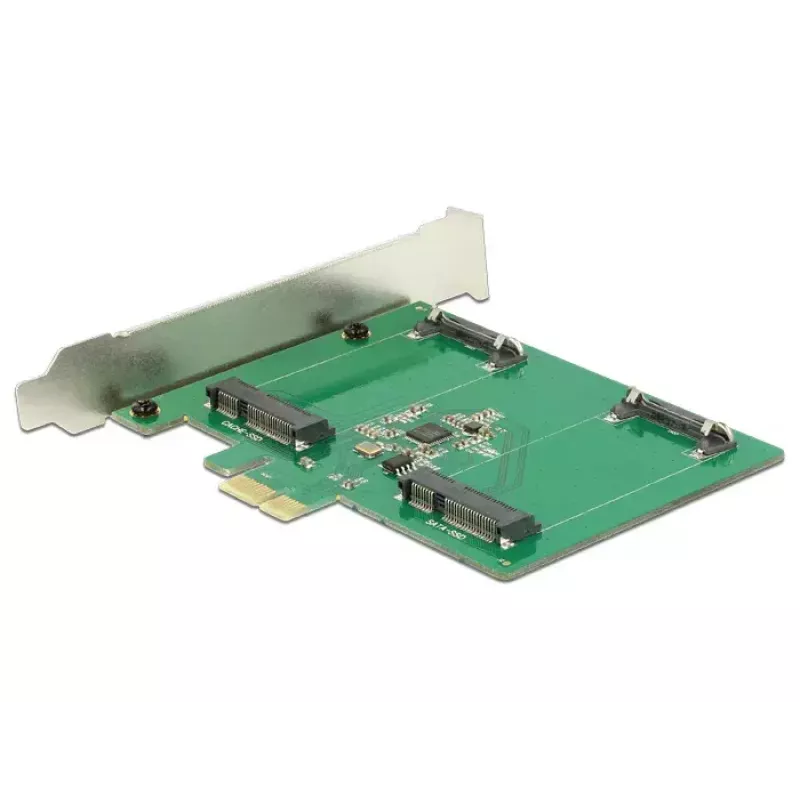

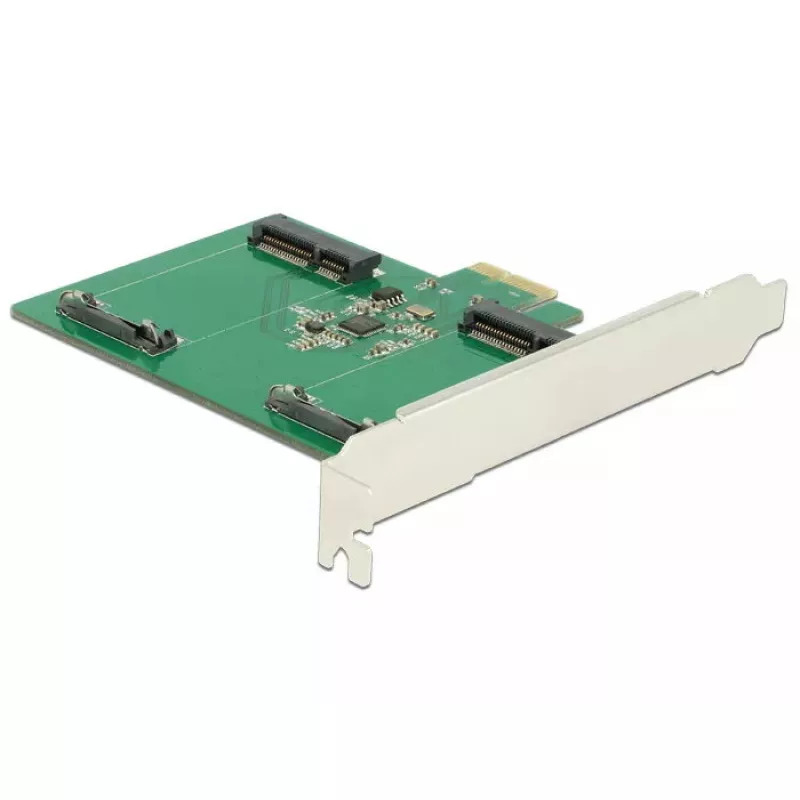

The Internal mSATA Adapter DeLOCK 89479 is a PCI Express card that allows installation of up to two mSATA modules such as SSDs. It uses the Asmedia ASM1061 chipset and supports a maximum data transfer rate of 6 Gbit/s. The card is designed for internal installation in systems with an available PCIe slot and is compatible with a range of Windows operating systems, including Windows 10 editions. The product is finished in grey and green.

Advantages

The adapter provides two mSATA outputs on a single PCIe card, enabling expansion of internal storage without occupying additional drive bays. With support for SATA III speeds (6 Gbit/s) via the Asmedia ASM1061 controller, it offers reliable data transfer performance for mSATA SSDs. Its internal PCIe connection ensures direct integration with the motherboard and straightforward installation.

Suitable for

Key specifications

How to use

Power off the computer and unplug it from the mains. Open the system case and locate an available PCIe slot. Insert the DeLOCK 89479 adapter firmly into the PCIe slot and secure it with the case screw if applicable. Mount up to two mSATA modules into the adapter’s slots according to the module notch orientation and secure them with the provided screws. Close the case, reconnect power, and start the system. Install any required drivers for the Asmedia ASM1061 controller if the operating system does not automatically recognise the adapter and attached drives.

Recommendations

Use compatible mSATA SSDs rated for SATA III performance and ensure your motherboard BIOS/UEFI supports booting from PCIe-connected mSATA devices if you plan to use an mSATA drive as a system/boot disk.
