Akyga AK-SC-E24 cavo di ricarica EV 3 x 6 mm² + 2 x 0,75 mm², monofase, 32 A, 450/750 V, al metro

The Akyga AK-SC-E24 is a professional EV charging cable for electric cars and motorcycles, made of copper conductors and flexible, non-toxic TPE material. It features 5 cores: 3 main cores of 6 mm² for power supply and 2 auxiliary cores of 0.75 mm² for communication between the vehicle and the charging station, supporting loads up to 32 A. Available by the metre, it allows flexible length adjustment.

Key features

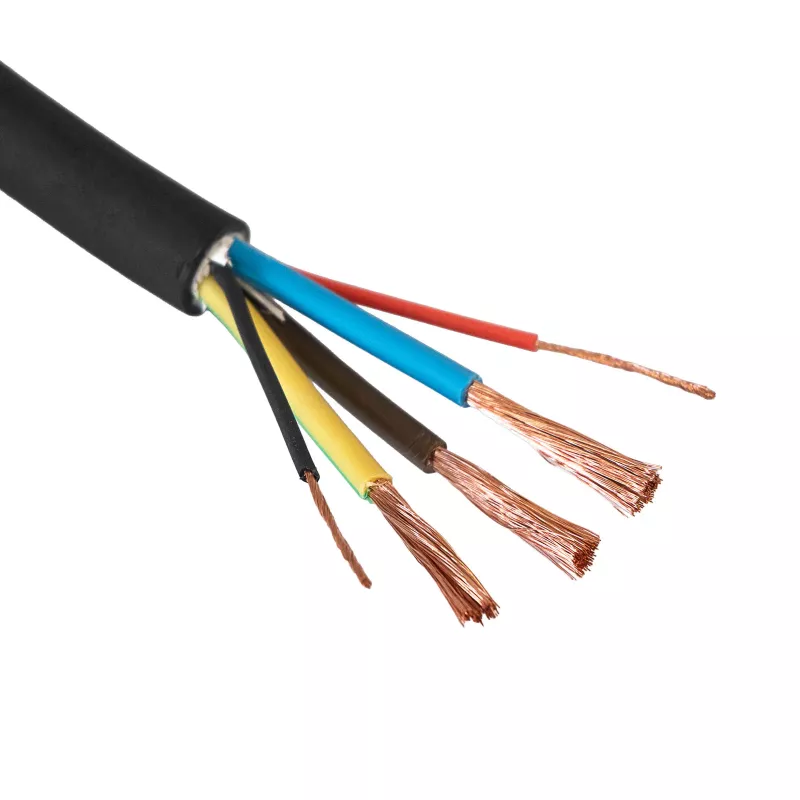

• 5 cores: 3 x 6 mm² power cores + 2 x 0.75 mm² communication cores
• Copper conductor material
• TPE jacket material
• Black colour
• Flame resistance: UL94V-0
• Single-phase
• Sold by the metre (1 item = 1 metre)

Specifications

• Brand: AKYGA
• MPN: AK-SC-E24
• Product type: Electric Car Accessory
• Supply voltage: AC 450 / 750 V
• Number of phases: 1
• Maximum operating current per phase: 32 A
• Conductor cross section: 3 x 6 mm² + 2 x 0.75 mm²
• Operating temperature: -40 – 125 °C
• Cable length: 1 m
• Weight: 0.45 kg
• Product colour: Black
• Conductor material: Copper
• Jacket material: TPE
