Alcatel-Lucent QSFP+ 40GBASE-SR Modulo ricetrasmettitore 40 Gigabit Ethernet 150m

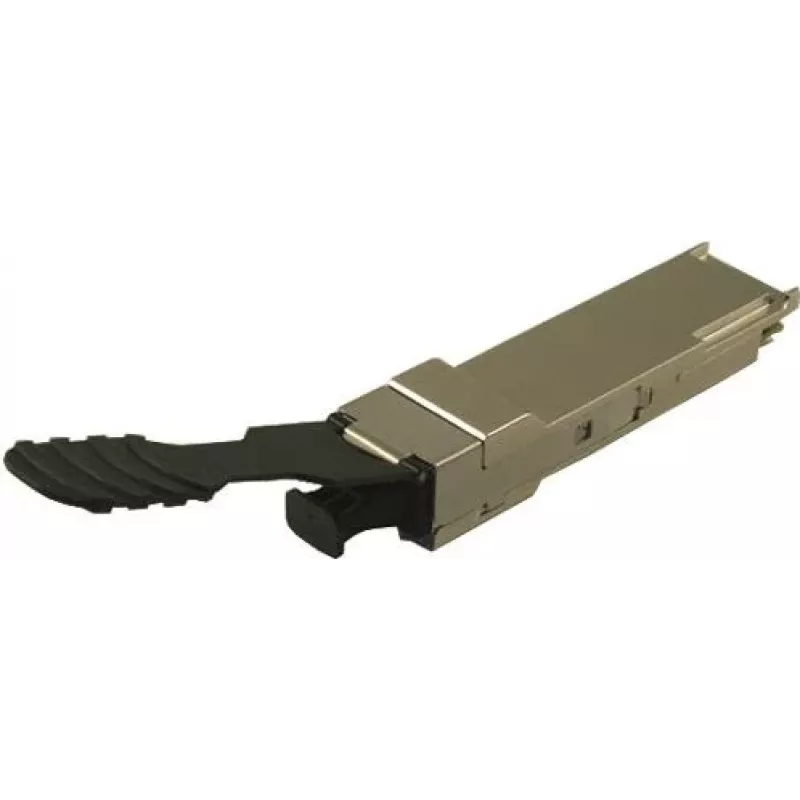

The Alcatel-Lucent QSFP-40G-SR is a high-performance QSFP+ transceiver module designed for 40 Gigabit Ethernet networks. It enables reliable, high-speed data transmission over multi-mode fiber (MMF) with distances up to 150 meters on OM4 fiber. This hot-swappable module is ideal for data center and enterprise networking applications, offering low power consumption and full digital optical monitoring (DOM) capabilities.

Advantages

This transceiver module delivers exceptional performance and reliability for 40G network links. It supports 40GBASE-SR standard with 4 independent transmit and receive lanes, each operating at 10 Gbps. The module is MSA compliant and IEEE 802.3ba compliant, ensuring interoperability with a wide range of networking equipment. Its compact QSFP+ form factor allows for high-density port configurations, maximizing switch and router port utilization. With a typical power consumption of less than 1.5W, it helps reduce overall energy costs in the network.

Suitable for

• Data center interconnects and top-of-rack switching
• Enterprise network backbone links
• High-speed storage area networks (SAN)
• Cloud and service provider networks requiring 40G connectivity

Key specifications

• Form Factor: QSFP+
• Data Rate: 40 Gbps (4x10 Gbps lanes)
• Ethernet Standard: 40GBASE-SR
• Fiber Type: Multi-mode (MMF)
• Connector: MPO/MTP-12
• Wavelength: 850 nm
• Max Distance: 150 m (OM4), 100 m (OM3)
• Power Consumption: < 1.5 W typical
• Operating Temperature: 0°C to 70°C
• Hot-Pluggable: Yes
• DOM Support: Yes

Recommendations

For optimal performance, use with OM4 multi-mode fiber and MPO/MTP-12 patch cables. Ensure your switch or router supports QSFP+ modules and 40GBASE-SR standard. This module is backward compatible with QSFP+ ports and can be used in 40G to 4x10G breakout applications with appropriate breakout cables.
