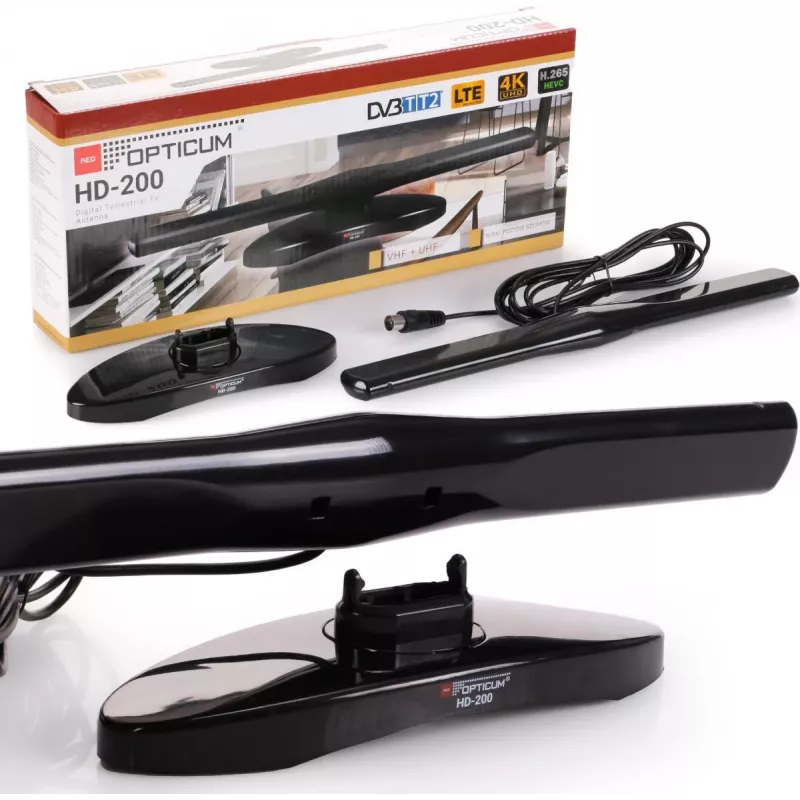

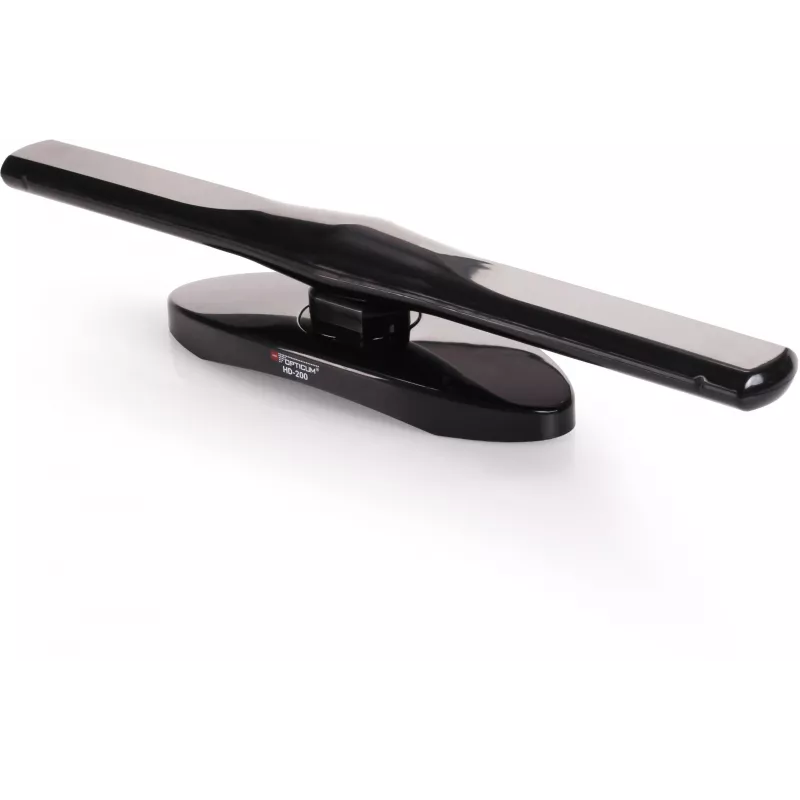

Antenna attiva da interno OPTICUM ANT0136 HD-200 DVB-T2 nero

The OPTICUM ANT0136 HD-200 is a high-performance indoor active antenna designed for DVB-T2, DVB-T, DAB, and FM reception. With a built-in amplifier and LTE/4G filter, it ensures clear and stable signal reception even in challenging environments. The antenna supports both VHF and UHF bands, making it versatile for various digital broadcasting standards.

Advantages

This antenna features a built-in amplifier with a gain of 28 dBi, providing excellent signal amplification for weak signals. The integrated LTE/4G filter minimizes interference from mobile networks, ensuring pure signal quality. Its compact and sleek black design allows for flexible placement on a tabletop or wall mounting.

Suitable for

• Indoor use with DVB-T2 and DVB-T receivers
• DAB and FM radio reception
• Areas with weak signal strength requiring amplification

Key specifications

• Antenna Type: Indoor, Active
• Frequency Range: VHF 174-230 MHz, UHF 470-694 MHz
• Gain: 28 dBi
• Impedance: 75 Ohm
• Noise Figure: < 3 dB
• Polarization: Horizontal, Vertical
• Built-in Amplifier: Yes
• Built-in Filters: LTE/4G Filter
• Power Supply: 5V DC via USB or DVB-T receiver
• Antenna Connector: F-Female
• Included Cable: 1.5 m with IEC Male connector
• Color: Black
• Material: Plastic
• Mounting: Tabletop, Wall-mountable

Recommendations

For optimal performance, place the antenna near a window or in a location with minimal obstructions. Use the included USB power supply or connect to a DVB-T receiver that provides 5V DC via the antenna input.
