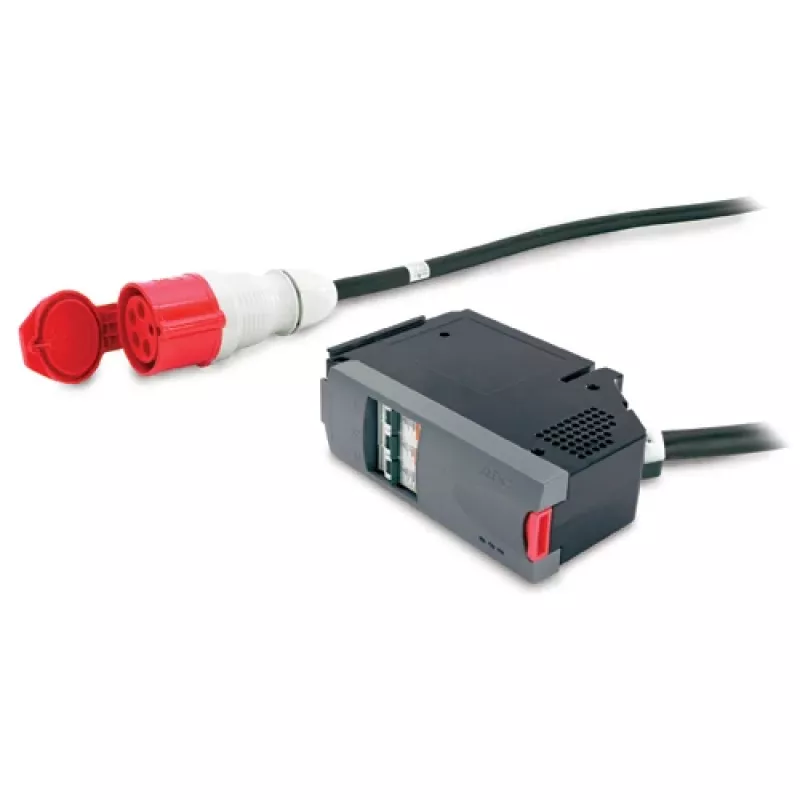

APC IT Power Distribution Module 3 poli 5 fili 32A IEC309 800cm

The APC IT Power Distribution Module is a robust and reliable basic rack PDU designed for data centers and IT environments requiring efficient power distribution. With a 32A input current and 3-phase power, it delivers consistent 230V output to connected equipment. The unit features a 5-wire IEC 309 input connector and provides 12 IEC C13 and 2 IEC C19 outlets, making it suitable for a variety of servers and network devices. The 8-meter (800 cm) cord offers flexible installation options in vertical rack mounting (0U).

Advantages

This PDU ensures reliable power distribution with overload protection via a built-in circuit breaker. Its 0U form factor saves valuable rack space, and the long cord length allows easy routing in server cabinets. The mixed outlet configuration supports both C13 and C19 plugs, accommodating different equipment types.

Suitable for

• Data centers and server rooms requiring 3-phase power distribution
• IT equipment with IEC C13 and C19 power connectors
• Vertical rack mounting in standard 19-inch racks

Key specifications

• PDU Type: Basic Rack PDU
• Input Voltage: 230V
• Input Current: 32A
• Input Connection: IEC 309 32A (3P+N+E, 5-wire)
• Output Connections: 12x IEC C13, 2x IEC C19
• Output Voltage: 230V
• Cord Length: 8 m (800 cm)
• Mounting: Vertical, 0U
• Phase: 3-phase
• Frequency: 50/60 Hz
• Overload Protection: Yes (Circuit Breaker)
• Color: Black
• Material: Steel
• Certifications: CE, EN 55022 Class A, EN 55024, IEC 60950, VDE
• Operating Temperature: 0 - 45 °C
• Relative Humidity: 0 - 95% (non-condensing)

Recommendations

For optimal performance, ensure that the total connected load does not exceed 32A per phase. This PDU is ideal for high-density IT environments where reliable power distribution is critical.
