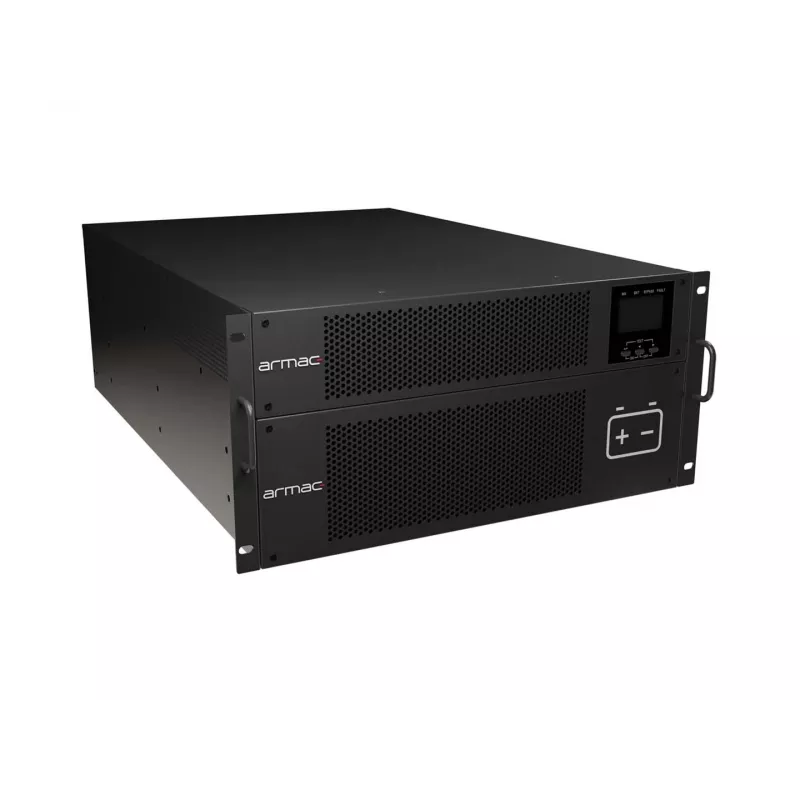

ARMAC R/6000I/PF1/DF UPS on-line 6000VA rackmount, 10x IEC C13, USB-B, LCD, a prova di polvere

Critical IT infrastructure demands uninterrupted power, yet rack environments often suffer from dust accumulation that can degrade UPS performance over time. The ARMAC R/6000I/PF1/DF solves both challenges with a 6000 VA on-line double-conversion UPS in a rugged metal rackmount chassis, featuring a dust-free cooling design to protect internal components. Ideal for server rooms, network closets, and industrial settings where clean, reliable power is non-negotiable.

Who is it for

This UPS is engineered for IT managers, system integrators, and facility engineers who need to safeguard high-density rack equipment such as servers, storage arrays, and network switches. Its 6000 VA / 6000 W capacity with unity power factor makes it suitable for demanding loads, while the rackmount form factor optimizes space in 19-inch enclosures. The dust-free design is particularly beneficial in environments with airborne particulates, reducing maintenance and extending service life.

Main features

• On-line double-conversion topology provides pure sine wave output and zero transfer time to connected equipment.
• 6000 VA / 6000 W power capacity with output power factor 1.0 for maximum usable power.
• 10 x IEC 320 C13 output receptacles for connecting multiple devices directly.
• Dust-free cooling system prevents dust ingress, enhancing reliability in harsh environments.
• LCD display for real-time status monitoring of load, battery, and input/output parameters.
• USB-B and RS-232 communication ports plus intelligent slot for optional SNMP/relay card.
• Hot-swappable maintenance-free sealed lead-acid batteries allow replacement without powering down connected loads.
• Automatic and manual bypass for increased availability during overload or fault conditions.
• High efficiency (>90%) in online mode reduces energy costs and heat output.
• Metal chassis with rackmount form factor for durable installation in standard 19-inch racks.

Specifications

• UPS Topology: On-Line Double Conversion
• Rated Power Capacity: 6000 VA / 6000 W
• Output Power Factor: 1.0
• Form Factor: Rackmount
• Output Receptacles: 10 x IEC 320 C13
• Input Connection Type: Hardwired Terminal Block
• Nominal Input Voltage: 200V / 208V / 220V / 230V / 240V AC
• Nominal Output Voltage: 200V / 208V / 220V / 230V / 240V AC
• Output Waveform: Pure Sine Wave
• Communication Ports: USB-B, RS-232, Intelligent Slot
• Display Type: LCD
• Housing Material: Metal Chassis
• Special Design Feature: Dust-Free Cooling System
• Battery Type: Maintenance-Free Sealed Lead-Acid (VRLA)
• Hot-Swappable Batteries: Yes
• Efficiency (Online Mode): >90%
• Bypass Type: Automatic and Manual Bypass
• Overload Protection: Yes
• Software Included: UPS Management Software (Downloadable)

Tips

To maximize battery life, keep the UPS in a cool, dry environment and perform periodic runtime tests. Use the included management software to configure automatic shutdown of connected servers during extended outages. For remote monitoring, install an optional SNMP card in the intelligent slot. Ensure the hardwired input is connected by a qualified electrician and that the rack is properly grounded.
