Armadio a parete Triton Triton Rack 19 pollici montaggio a parete 6U/500

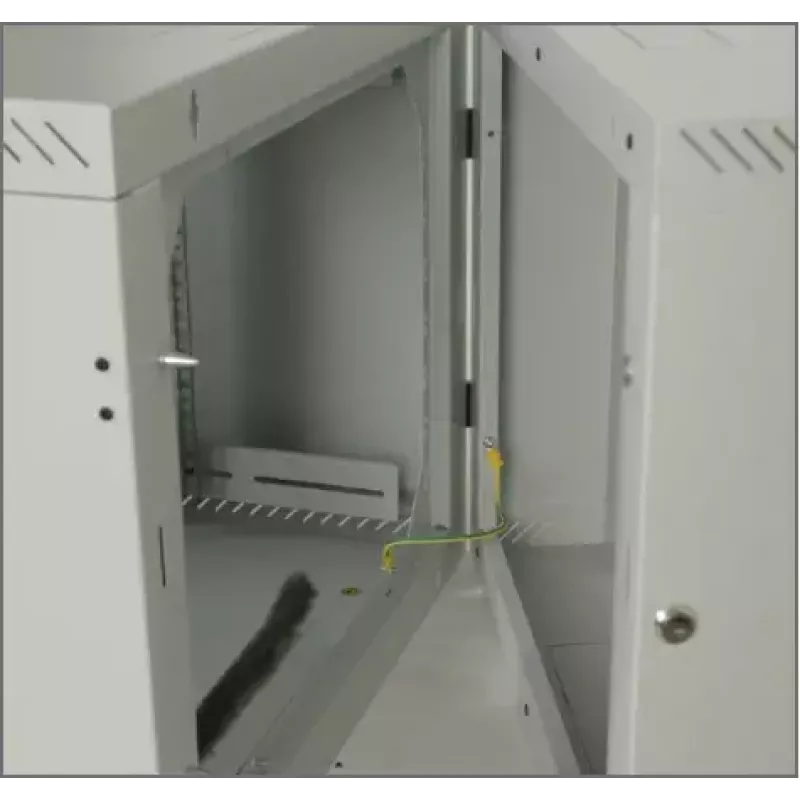

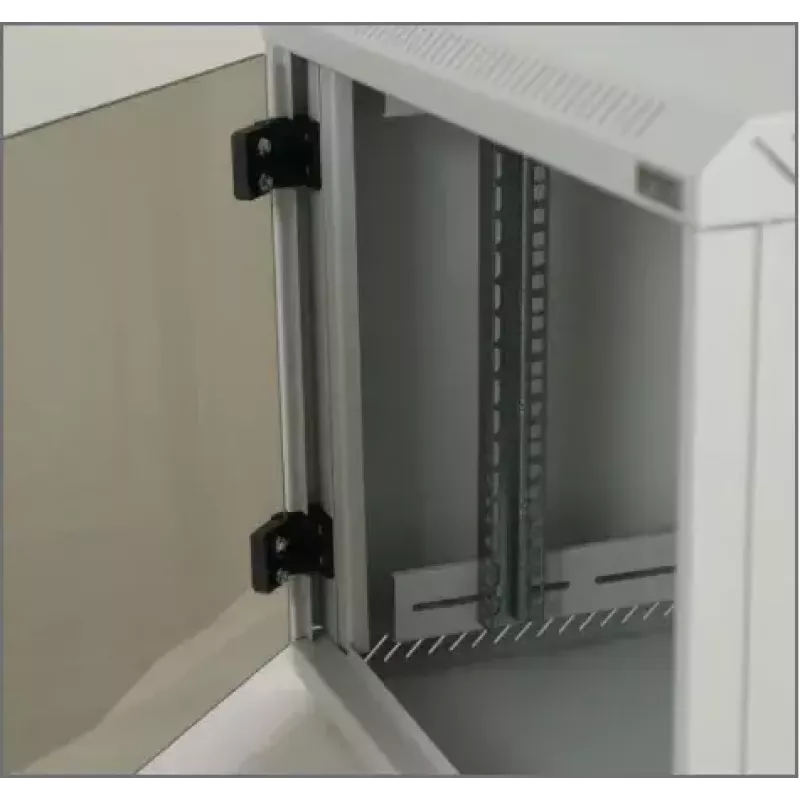

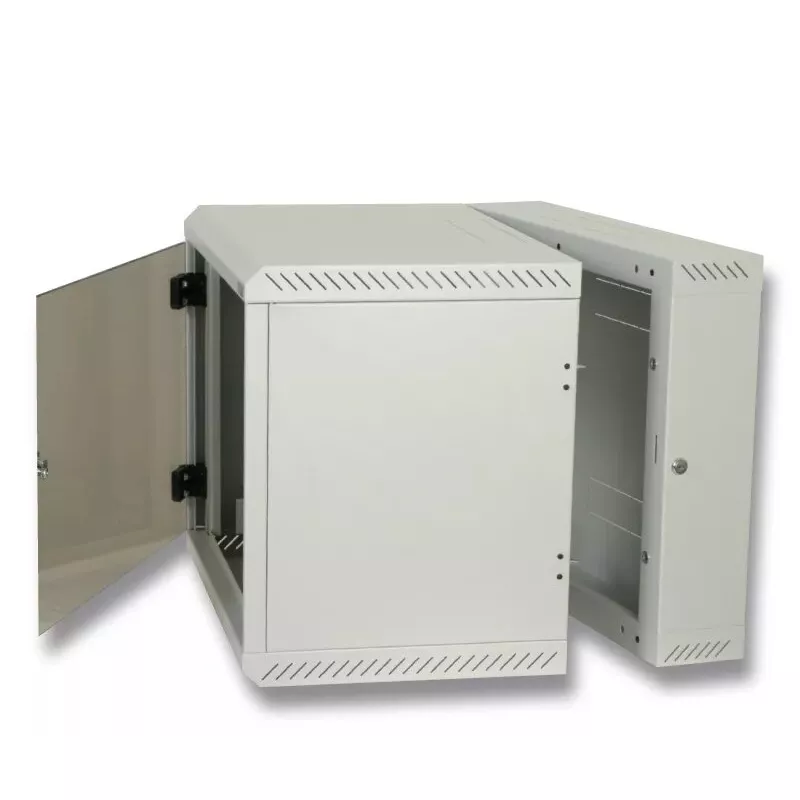

Two-part welded wall-mounted enclosure IP20, load capacity 20 – 30 kg. High stability of construction The distributor has a robust welded construction. The high quality of workmanship and the latest technologies ensure the great appearance of the enclosures. Doors The doors of the enclosures are made of solid glass as standard, but can also be made of solid sheet metal or perforated on request. Flexible door opening The hinge system allows the door to be opened 165°. The doors can be easily removed. All-glass The all-glass doors are made of 4 mm thick shock-resistant tempered glass. If broken, they shatter into many small splinters, like car glass. For safety reasons, we recommend closing the all-glass door after installing components to avoid collisions with other objects. Our all-glass doors have been tested by a certified testing laboratory and meet the requirements of CSN EN 12150-1+A: Glass in building – thermally toughened soda lime silicate safety glass. The tested glass meets the standard for disintegration after glass breakage, certificate of conformity CQ-24-2023, test report IKATES 58A-2024. Door lock Quick and easy access to the enclosure. In the standard version, the locks of the door and the swing part are keyed alike. Adjustable vertical rails The 482.6 mm (19") vertical rails are freely adjustable in the depth of the cabinet. This simplifies the installation of components and cable management. Knock-out panels The roof, base and rear panel of the enclosure are equipped with cable entries with knock-out panels. These can be sealed with the brush strip to keep out dust. Cable edge protection is used to protect the cables from damage (both are included in the accessory pack). Ventilation The types RBA-xx-AD5-A6 and RBA-xx-AD6-A6 have six knockouts for mounting the RAx-CH-X2x-X1 ventilation units (or the RAX-CH-X07-X9 fans – NOT intended for the German market! – up to three in the roof and three in the floor of the enclosure). This means that components that previously could not be cooled in wall-mounted enclosures and had to be installed in floor-mounted enclosures can now also be installed in RBA enclosures. Two-part 19’ wall-mounted enclosure with IP20 protection. The enclosure is mounted directly on the wall. The distributor includes two adjustable vertical grid rails. Distributor design: compact welded construction, solid glass door with 4 mm thick safety glass, optionally with solid sheet or perforated door. The permissible load capacity of the individual doors is max. 10 kg. The minimum thickness of the application is 65 µm. The enclosures are designed for the installation of data and telecommunication systems and their distribution systems. All removable parts are connected to earthing cables, which must be properly attached and plugged in throughout the entire service life of the cabinet. There is an M8 bolt in the base of the cabinet as a central earthing point. Cable entry knockouts are located at the top and bottom of the rear panel of the enclosure, with an additional one in the roof and floor of the enclosure. The A6 version has knockouts in the roof and floor of the enclosure for the use of fans.

• Door height: 265mm
• Manufacturer No.: RBA-06-AD5-CAX-A1
• EAN Barcode: 8595105011263
• Detachable side panels: Yes
• Detachable rear panel: Yes
• Colour: Grey (RAL7035)
• Demountable: No
• Height (outside): 370mm
• Height packaging: 0.370m
• Packaging volume: 0.1143m³
• Length packaging: 0.520m
• Manufacturer information: Triton Chemnitz GmbH
  Teichstraße 11
  09366 Niederdorf
  Deutschland
  info@triton-racks.de
• Country of origin: Czech Republic
• Im Angebot: No
• Stark reduziert: No
• Ventilation holes: No
• Weight: 17.750kg
• Width packaging: 0.600m
• Brand: Tritón
• Customs tariff number: 8538100090
• Height unit: 6U
• Recommended maximum load: 30kg
• Width: 600mm
• Depth: 515mm
• Door width: 516mm
• Protection class: IP20

How to use

Mount the cabinet securely to a suitable wall surface following local building codes and using appropriate anchors for the wall type. Install 19" equipment on the vertical rails; adjust the rails forward or backward to match device depth and secure devices with standard rack screws. Route cables through the top or bottom cable entry panels by breaking out the blanking sections as required, and close the front door to protect equipment. Ensure the total installed weight does not exceed the stated 20 kg capacity.

Recommendations

Position the cabinet where airflow is not obstructed; avoid enclosing it inside narrow cabinets or behind materials that reduce ventilation. Regularly check fixation points and cable entries, and distribute weight evenly across the rails to maintain stability.
