ATEN Ricevitore HDMI HDBaseT Small Factor

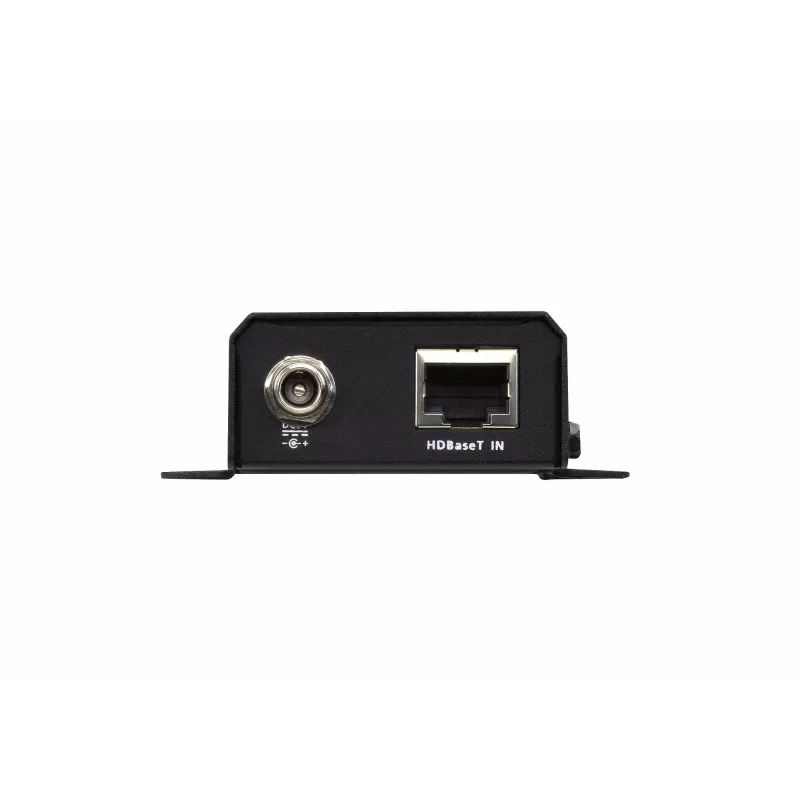

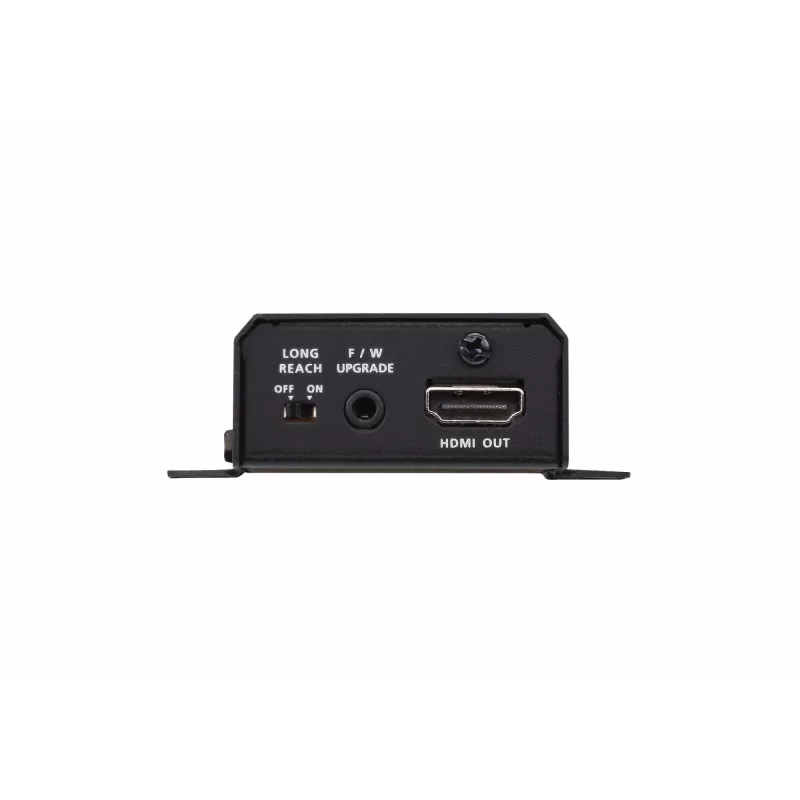

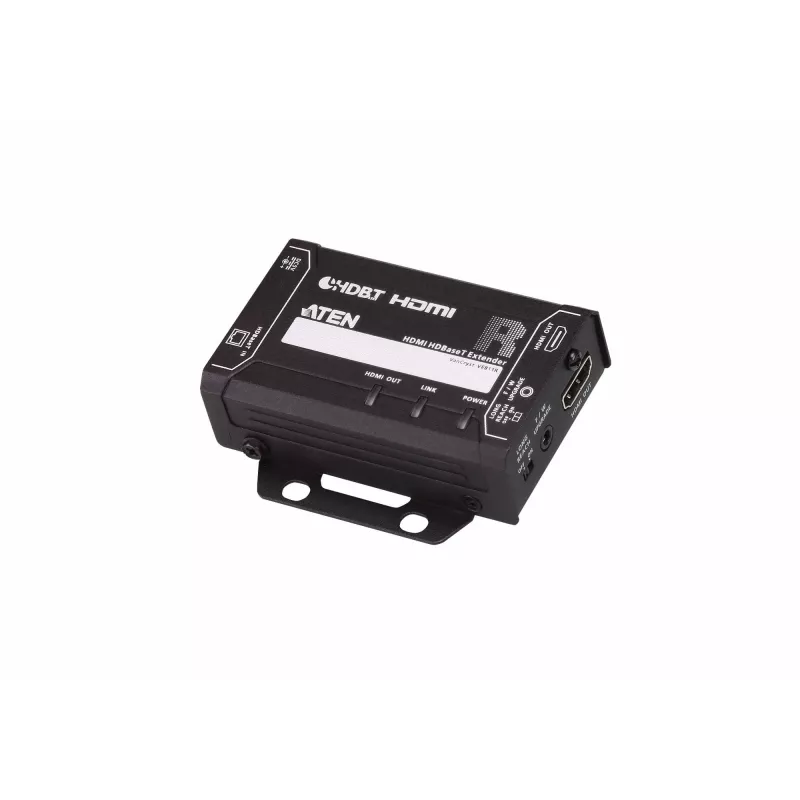

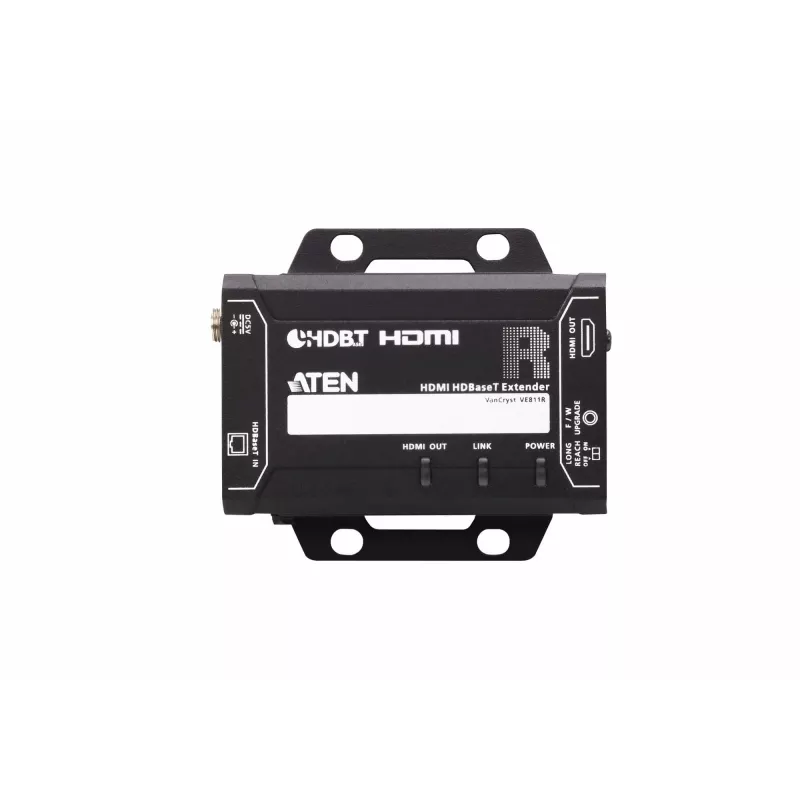

The ATEN VE811R HDMI HDBaseT Extender is an AV receiver designed to extend high-resolution HDMI signals over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. It supports up to 4K resolution (4096 x 2160) at distances up to 100 m and, in Long Reach Mode, can carry 1080p signals up to 150 m. The compact black unit (73 x 86.4 x 24.7 mm, 170 g) operates at 5 V with low typical power consumption, making it suitable for installations where space and energy efficiency matter.

Advantages

The VE811R preserves HDMI features including 3D, Deep Color, HD lossless audio formats and CEC pass-through, and supports Dolby Digital 5.1 and DTS HD audio. Its HDBaseT technology enables long-distance transmission over a single cable, reducing cabling complexity and installation costs. The small footprint and lightweight design allow flexible mounting in meeting rooms, classrooms or AV racks.

Suitable for

• Extending HDMI video and audio from sources to displays in meeting rooms
• Digital signage installations requiring long cable runs
• Home theater or AV systems where a compact receiver is needed
• Classroom and corporate AV setups that need 1080p or 4K distribution

Key specifications

• Model: ATEN VE811R (MPN: VE811R-AT-G, EAN: 4719264645761)
• Max resolution: up to 4096 x 2160 (4K)
• Transmission distance: up to 100 m for 4K over Cat5e/6/6a or ATEN Cat6; up to 150 m for 1080p in Long Reach Mode over Cat5e/6
• Supported HDMI features: 3D, Deep Color, CEC pass-through
• Audio support: HD lossless formats, Dolby Digital 5.1, DTS HD
• Power: 5 V, typical consumption 3.9 W
• Dimensions: 73 x 86.4 x 24.7 mm; Weight: 170 g
• Colour: Black

How to use

Connect the HDMI source to the HDMI input of the transmitter unit and the VE811R receiver to the display via HDMI. Use a single Cat5e/6/6a or the specified ATEN Cat6 cable to link the transmitter and VE811R. Power the receiver with a 5 V adapter. For extended 1080p reach, enable Long Reach Mode on the transmitter if available. Ensure HDMI cables and Cat cables meet required specifications for reliable signal transmission.

Recommendations

For best performance, use high-quality Cat6 or Cat6a cable for 4K transmission up to 100 m and certified Cat5e/6 cable for Long Reach Mode at 1080p up to 150 m. Keep cable runs away from strong electrical interference sources and follow AV installation best practices for grounding and connector terminations.
