BlueOptics 980-9I58C-00N007 compatibile MPO-MPO Singlemode OS2 cavo patch 7,5 m

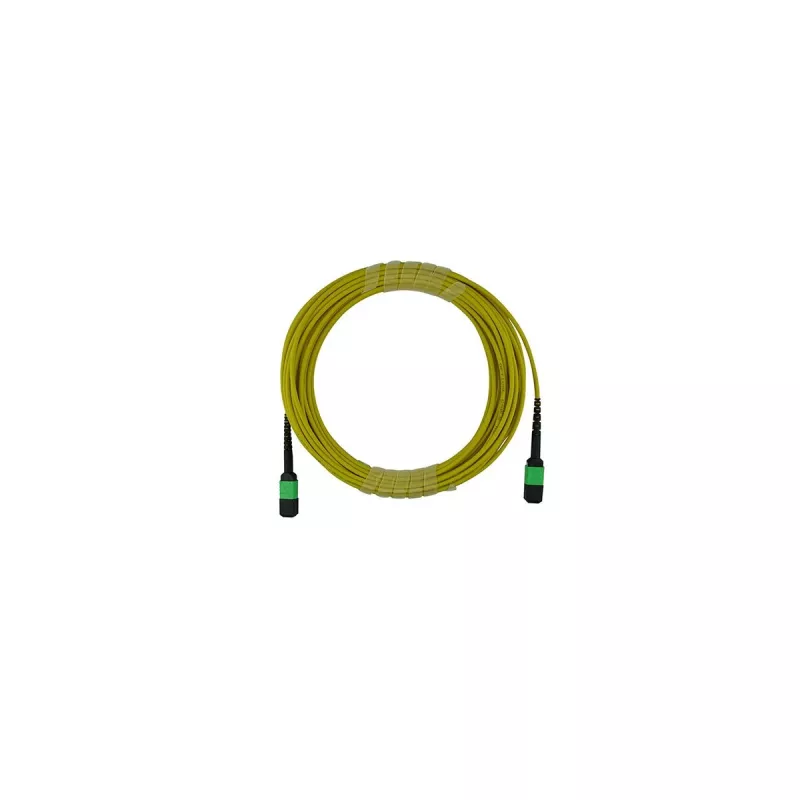

This BlueOptics 980-9I58C-00N007 compatible MPO-MPO Singlemode OS2 patch cable is designed for high-performance fiber optic connections in data centers, telecommunications, SAN, and LAN environments. With a length of 7.5 meters and 12-fiber configuration, it ensures reliable and efficient data transmission.

Advantages

High-quality MPO connectors with APC polish provide low insertion loss (≤0.35 dB) and high return loss (≥60 dB). The LSZH jacket ensures safety in enclosed spaces, and the yellow color aids easy identification. Type B polarity (cross-over) is ideal for parallel optics applications.

Suitable for

• Data center interconnects
• Telecommunications networks
• Storage Area Networks (SAN)
• Local Area Networks (LAN)

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Singlemode OS2
• Connectors: MPO to MPO
• Number of Fibers: 12
• Core/Cladding: 9/125 µm
• Polish: APC
• Polarity: Type B (Cross-over)
• Jacket Material: LSZH
• Jacket Color: Yellow
• Cable Diameter: 3.0 mm
• Insertion Loss: ≤0.35 dB
• Return Loss: ≥60 dB
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, TIA/EIA-568-C.3, IEC 61754-7

Recommendations

This cable is compatible with various MPO fiber optic systems. Ensure your devices support MPO connectors and OS2 singlemode fiber for optimal performance.
